High End Systems MMS100 - DMX Control Screen

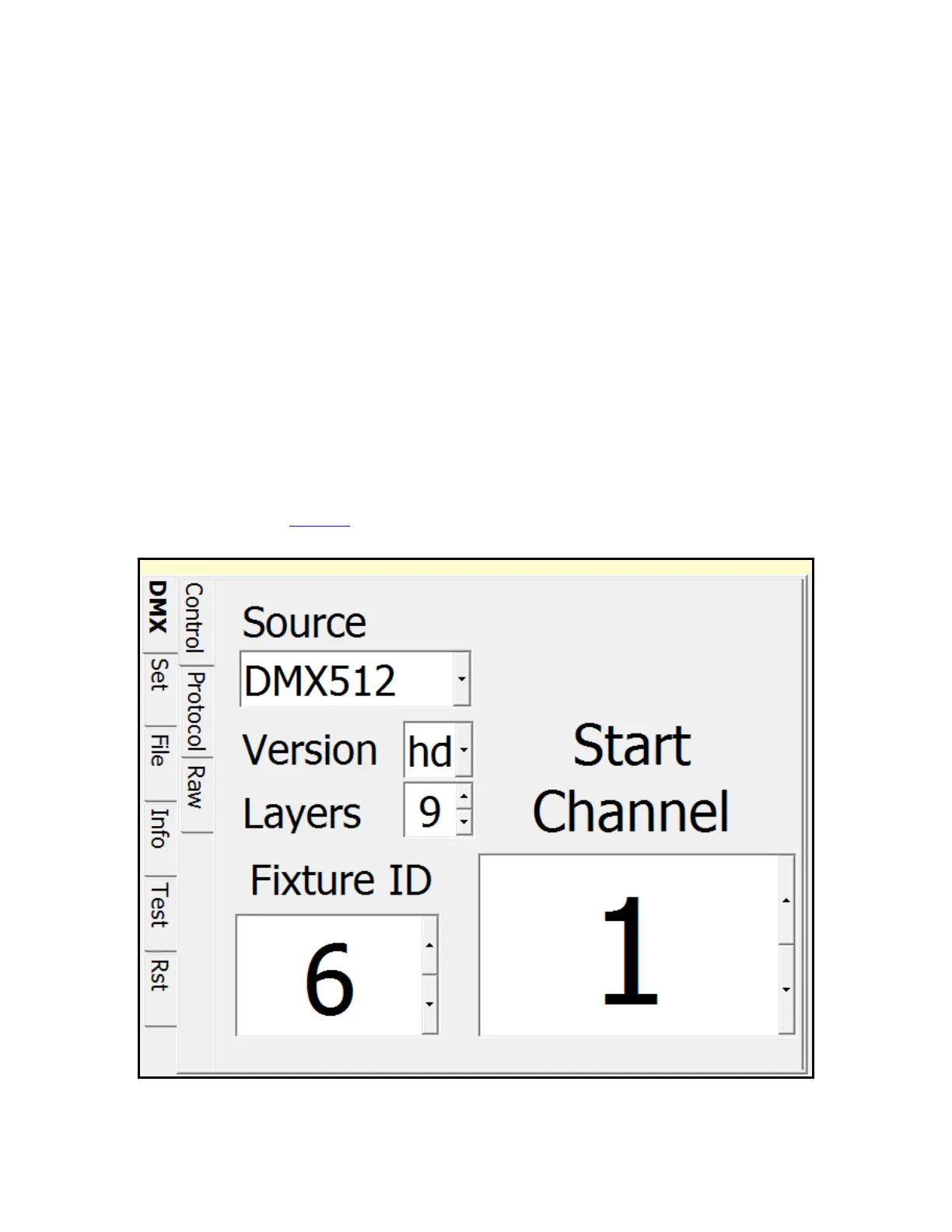

DMX Control Screen
This screen shows all configuration settings for incoming data with regards to the external control source.
Source Drop Down Box
• DMX 512
• Art-Net
Version (referring to the incoming control source protocol version)
• V2
• HD
Layers (referring to the number of available graphics layers)
• 1-9
Fixture ID (used for synchronization)
• 1-255
Start Channel
• 1-(varies) (More Info)
