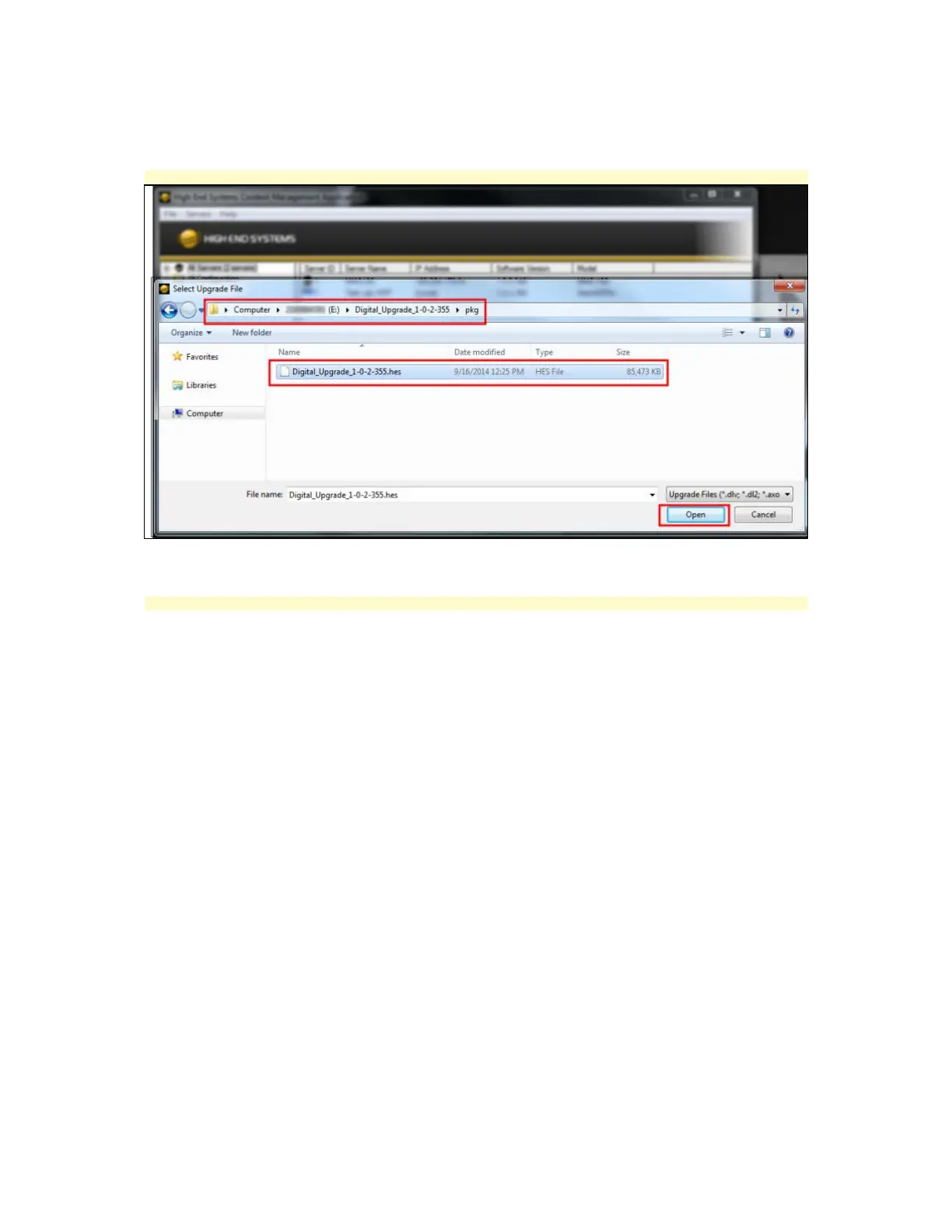

Choose the .HES file that was obtained from the HES website. Press Open (Ver. 1.0.2 b355 shown here)

Verify the correct file is selected and press Next
