4.4 Setting the Measurement Range (Auto/Hold)
55
3
Chapter 4 Settings
4
Ammeter mode/unit of indication : AUTO range of indication

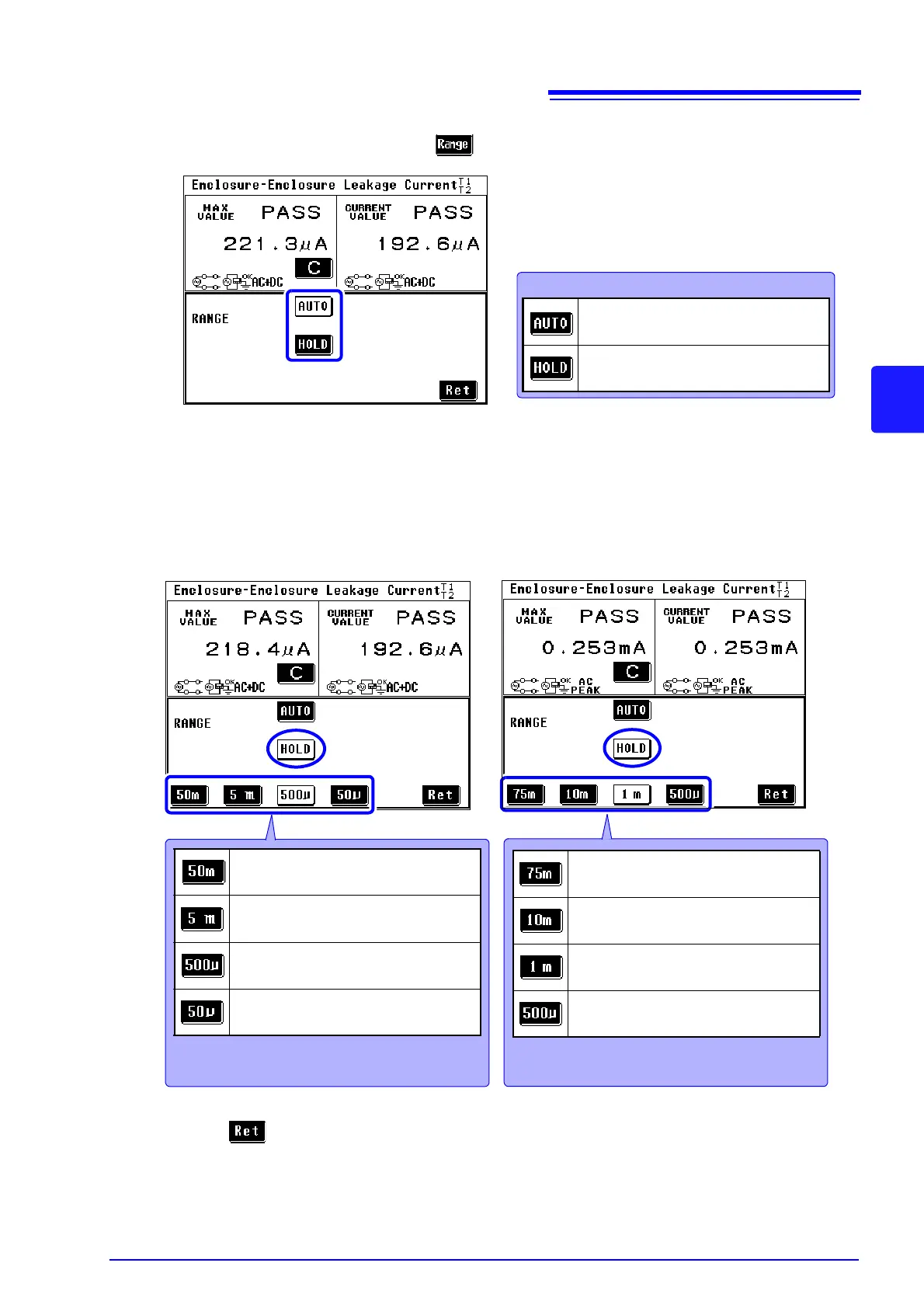

1. On the measurement screen, press to display the measurement range setting screen.
2. Selecting the Hold range displays a set of range setting keys.
Use these keys to select a range.
3. Press to return to the measurement screen.
Select a measurement range.
Sets the current range to the Auto
(automatic) range.
Sets the current range to the Hold
(fixed) range.
The "fixed 500 A range" is selected in this
screen.
Sets the fixed 50 mA range.
Sets the fixed 5 mA range.
Sets the fixed 500 A range.
Sets the fixed 50 A range.
The "fixed 1 mA range" is selected in this
screen.
Sets the fixed 75 mA range.
Sets the fixed 10 mA range.
Sets the fixed 1 mA range.
Sets the fixed 500 A range.
When setting the target current to
AC, DC, or AC+DC
When setting the target current to
AC Peak
