DBW Drive Box drawer
The DBW Drive Box has a top drawer and a bottom drawer. Each drawer has
the LEDS shown and described in Figure 2-41.

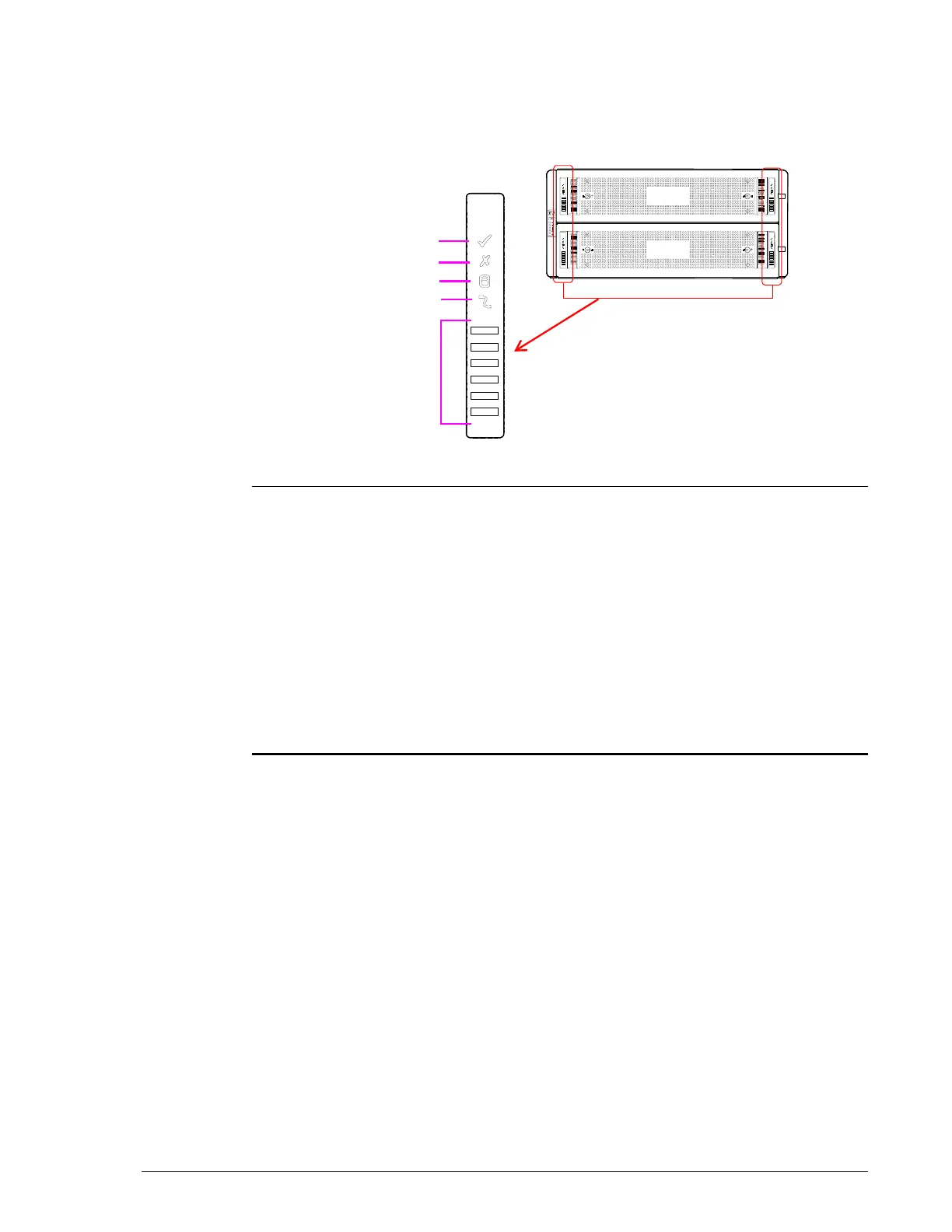

Figure 2-41: DBW Drive Box drawer
•
Legend LED Color Description
¶
Sideplane
OK/Power
Good
Green ON = normal sideplane operation.
?
Sideplane
ALM
Orange ON = drive failure. Visit the HDS Support Portal
at portal.hds.com.
?
Logical ALM Orange ON = logical failure. Visit the HDS Support Portal
at portal.hds.com.
?
Cable ALM Orange ON = cable between the drawer and the I/O
Module (ENC) is operating abnormally. Visit the
HDS Support Portal at portal.hds.com.
?
Activity Bar
Graph
Green Not used.
¶
?
?
?
?
