CBL (DF850-CBLR) and CBLD (DF850-CBLD) Controller Boxes
Front panel bezel
s

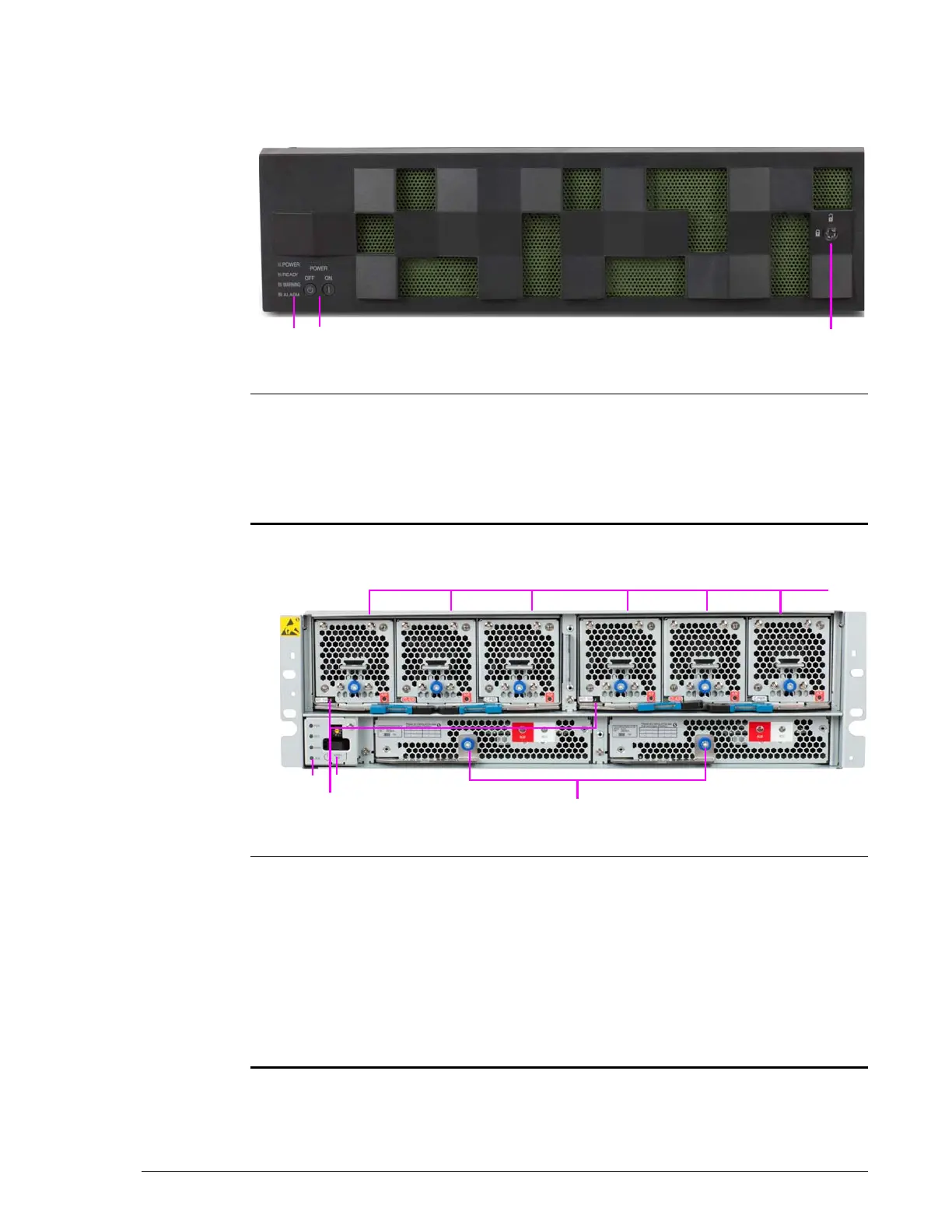

Figure 2-14: CBL/ CBLD Controller Box front panel bezel
Front panel without bezel
Figure 2-15: CBL/CBLD Controller Box without bezel
•
Legend:
¶
POWER, READY, WARNING, ALARM LEDs
See Table 2-2 on page 2-26.
?
Main Switch
Powers the storage system ON (right button) or OFF (left button).
?
Lock
¶ ? ?
Legend:
¶
Fan Module
See Fan Module on page 2-49.
?
Cache Backup Battery
See Cache backup battery on page 2-50.
?
MAIN SW
?
Reset Switches
Use the Reset switches only when instructed by Hitachi Support.
?
PWR, RDY, WARN and ALM LEDs
See Panel assembly on page 2-49.
¶
?
?
?
?
