CBXSS Controller Box (DF850-CBSSR)
Front panel bezel
s

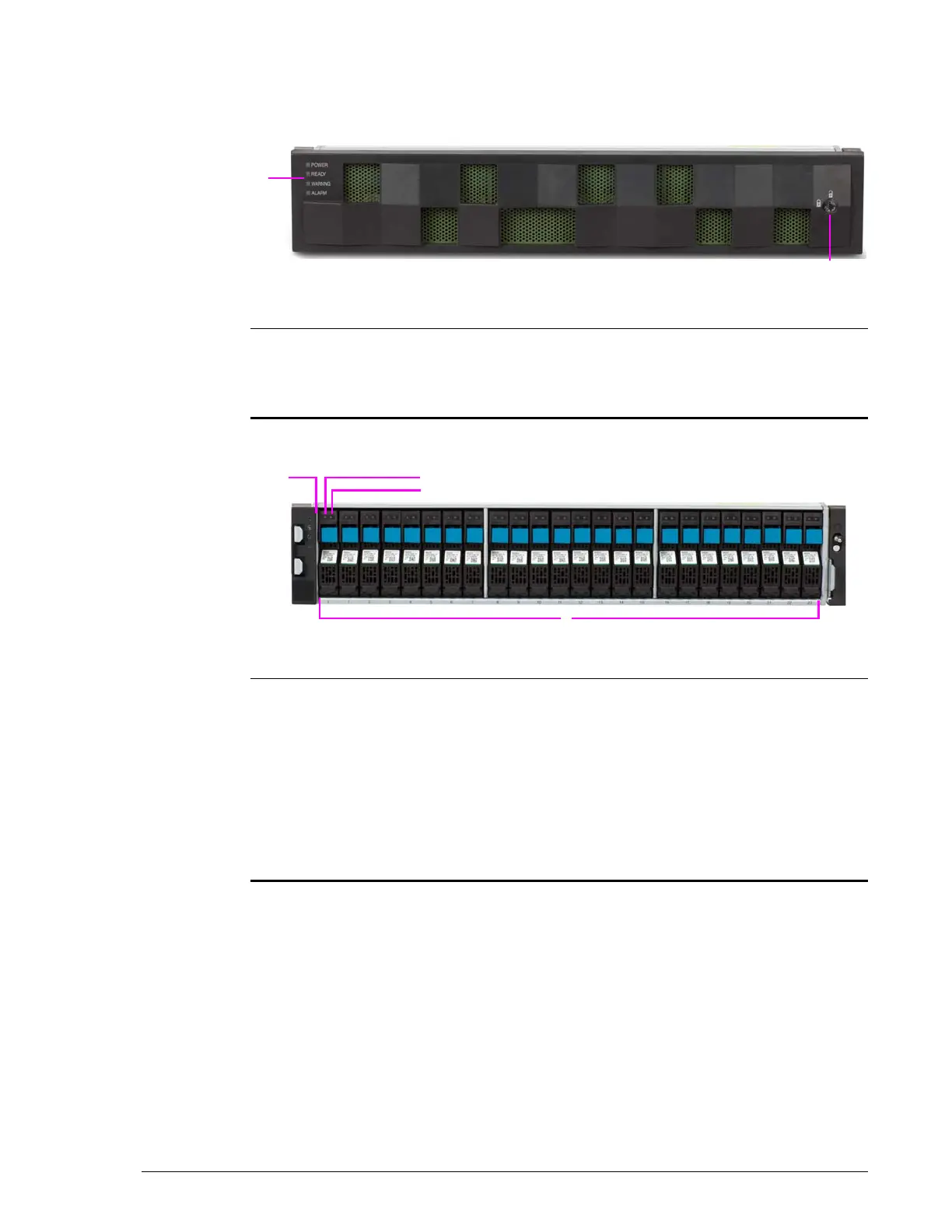

Figure 2-2: CBXSS Controller Box front panel bezel
Front panel without bezel
Figure 2-3: CBXSS Controller Box front panel without bezel
•
Legend:
¶
POWER, READY, WARNING, ALARM LEDs
See Table 2-2 on page 2-26.
?
Lock
?
¶
Legend:
¶
POWER, READY, WARNING, ALARM LEDs
See Table 2-2 on page 2-26.
?
ALM LED
Drive display LED above each drive slot. See Table 2-6 on page 2-30.
?
ACT LED
Drive display LED above each drive slot. See Table 2-6 on page 2-30.
?
Small Form Factor Drives
24 2.5-inch small form factor drives oriented vertically. Slots are
designated 0 - 23 going from left to right.
¶
?
?
?
