Hitachi CBXSS - CBXSL Controller Box (DF850-CBSLR); Front Panel Bezel; Front Panel Without Bezel

Hardware description 2–7
Hitachi Unified Storage Hardware Service Guide
CBXSL Controller Box (DF850-CBSLR)
Front panel bezel
s

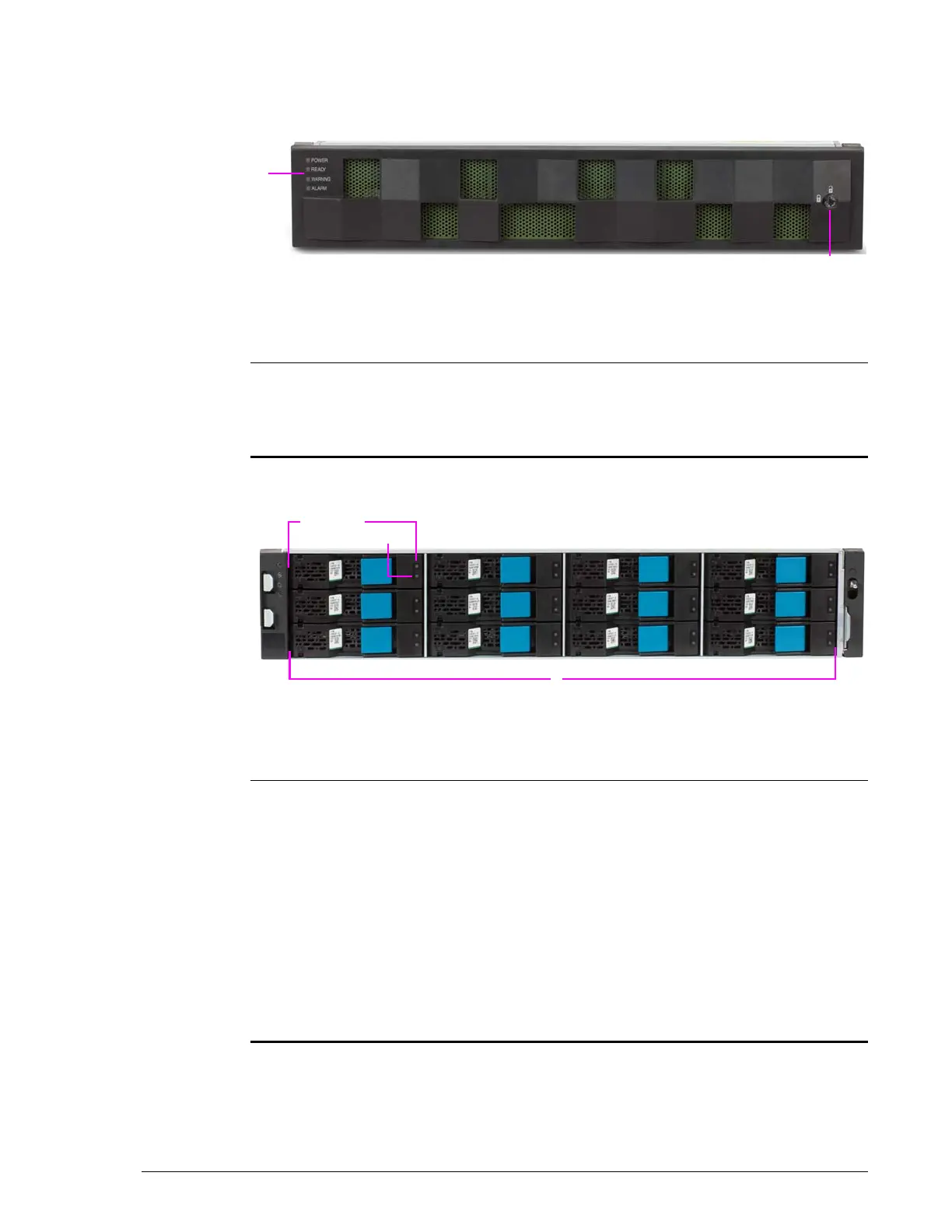

Figure 2-5: CBXSL Controller Box front panel bezel
Front panel without bezel
Figure 2-6: CBXSL Controller Box front panel without bezel
•
Legend:
¶
POWER, READY, WARNING, ALARM LEDs
See Table 2-2 on page 2-26.
?
Lock
?
¶
Legend:
¶
POWER, READY, WARNING, ALARM LEDs
See Table 2-2 on page 2-26.
?
ACT LED
Drive display LED above each drive slot. See Table 2-7 on page 2-30.
?
ALM LED
Drive display LED above each drive slot. See Table 2-7 on page 2-30.
?
Large Form Factor Drives
12 3.5-inch large form factor drives stacked horizontally. Slots are
designated in the following way:
8 9 10 11
4 5 6 7
0 1 2 3
¶
?
?
?
