Replacing drives 4–3
Hitachi Unified Storage Hardware Service Guide
Locating drives
CBXSL/CBSL Controller Boxes and DBL Drive Box
For CBXSL/CBSL Controller Boxes and the DBL Drive Box, drive numbering
is from #0 to #11. Facing the front of the units, #0 is at the bottom-left of
the unit and #11 is at the top right of the unit.

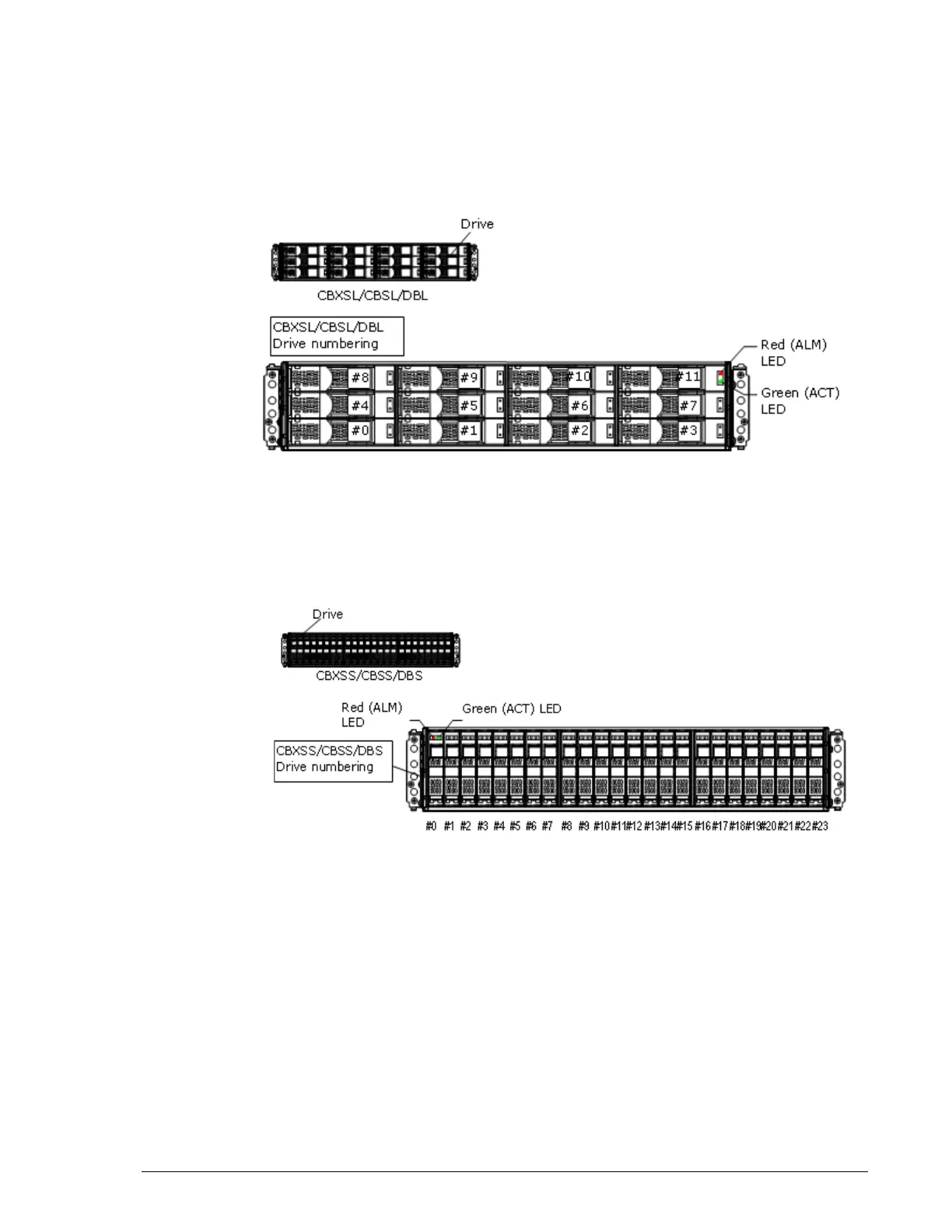

Figure 4-2: Drive locations on a CBXSL/CBSL/DBL
CBXSS/CBSS Controller Boxes and DBS Drive Box
For CBXSS/CBSS Controller Boxes and the DBS Drive Box, drive numbering
is from #0 to #23. Facing the front of the units, #0 is at the left of the unit
and #23 is at the right of the unit.
Figure 4-3: Drive locations on a CBXSS/CBSS/DBS
