Hitachi CBXSS - Rear Panel

2–20 Hardware description
Hitachi Unified Storage Hardware Service Guide
Rear panel
•

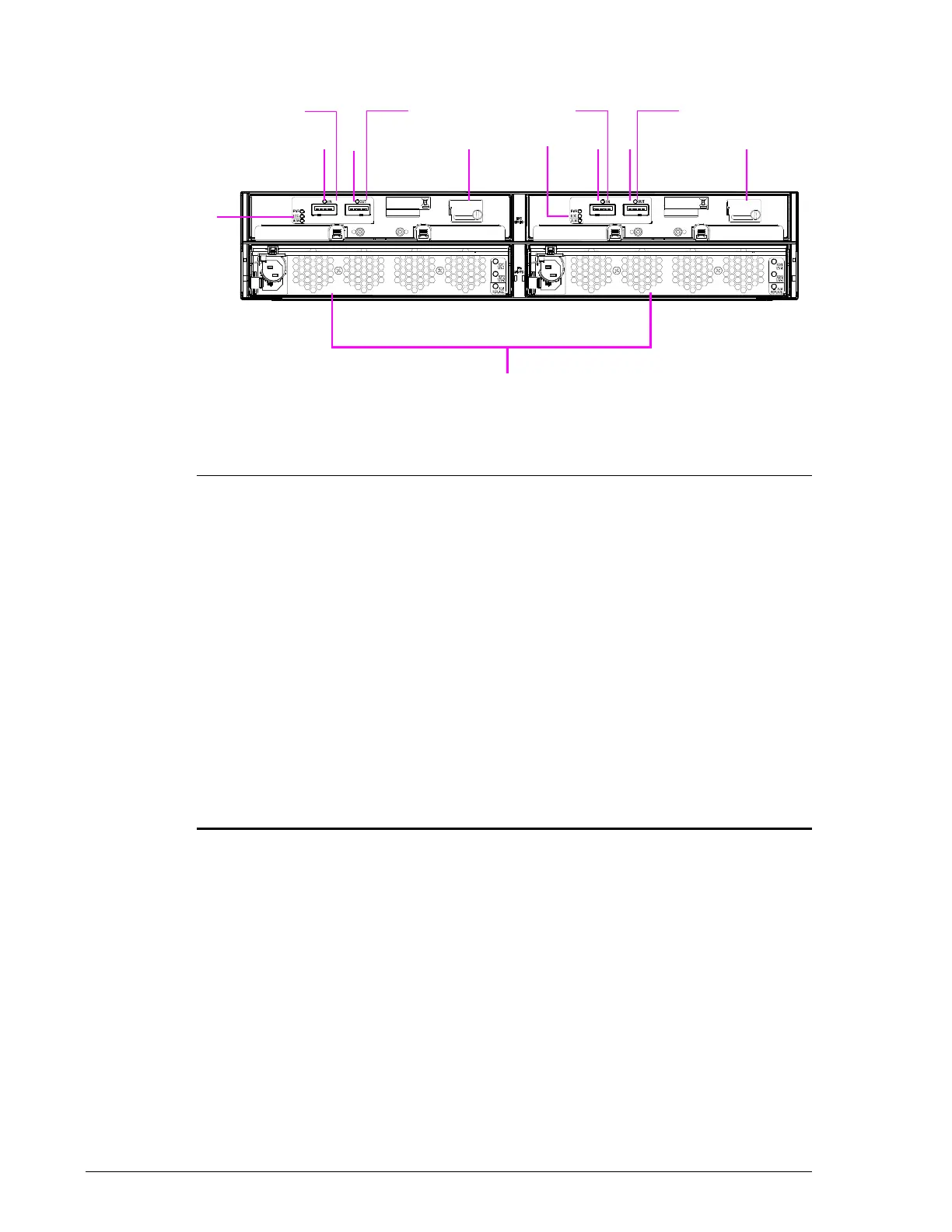

Figure 2-25: DBF rear panel
Legend:
¶
POWER, LOCATE, ALARM LEDs
See I/O Module (ENC), DBF Drive Box on page 2-44.
?
IN Port
Connects to a CBSS, CBSL, CBL, or CBLD Controller Box or a DBS, DBL,
DBX, or DBF Drive Box.
?
IN Port LED
ON when IN port is connected to a CBSS, CBSL, CBL, CBLD, DBS, DBSD,
DBL, DBLD, DBX, or DBF.
?
Out Port LED
See I/O Module (ENC), DBF Drive Box on page 2-44.
?
OUT Port
See I/O Module (ENC), DBF Drive Box on page 2-44.
?
Console Port
Not used.
?
Power Unit
See Power Unit for DBF Drive Box on page 2-46.

?? ?
?
??
?
¶
¶
?
???
