2–16 Hardware description
Hitachi Unified Storage Hardware Service Guide
Rear panel
•

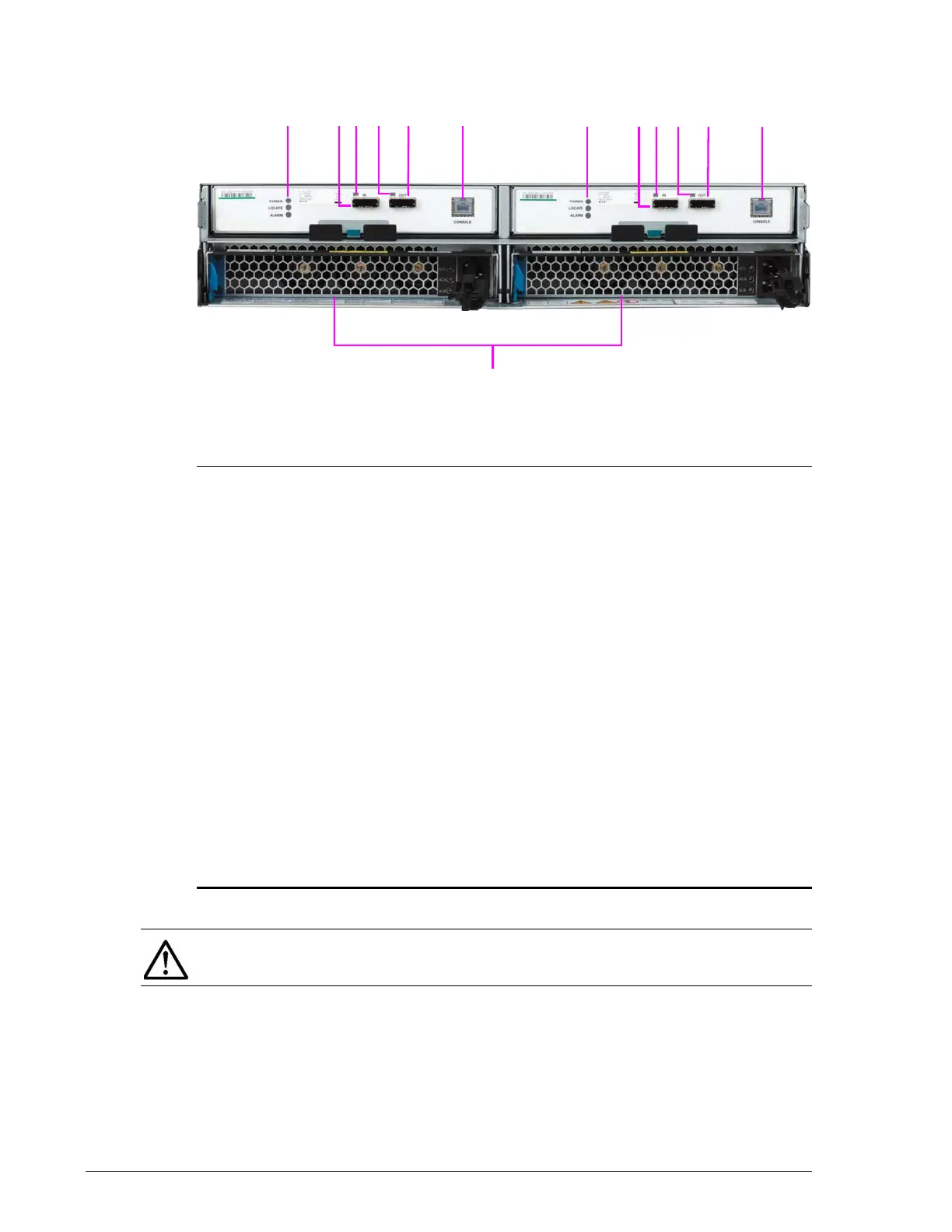

Figure 2-19: DBS rear panel
Legend:
¶
POWER, LOCATE, ALARM LEDs
See I/O Module (ENC), DBS, DBSD, DBL, and DBLD Drive Boxes on page 2-
42.
?
IN Port
Connects to a CBSS, CBSL, CBL, or CBLD Controller Box or a DBS, DBL,
DBX, or DBF Drive Box.
?
IN Port LED
ON when IN port is connected to a CBSS, CBSL, CBL, CBLD, DBS, DBSD,
DBL, DBLD, DBX, or DBF.
?
Out Port LED
See I/O Module (ENC), DBS, DBSD, DBL, and DBLD Drive Boxes on page 2-
42.
?
OUT Port
See I/O Module (ENC), DBS, DBSD, DBL, and DBLD Drive Boxes on page 2-
42.
?
Console Port
Not used.
?
Power Unit
See Power Unit for CBXSS, CBXSL, CBSS, and CBSL Controller Boxes on
page 2-45 and Power Unit for DBSD/DBLD Drive Box on page 2-46.
NOTE: The DBSD rear panel is identical to the figure above, except the AC
receptacles are replaced by receptacles for accommodating DC power.
