DBW Drive Box
Front panel bezel

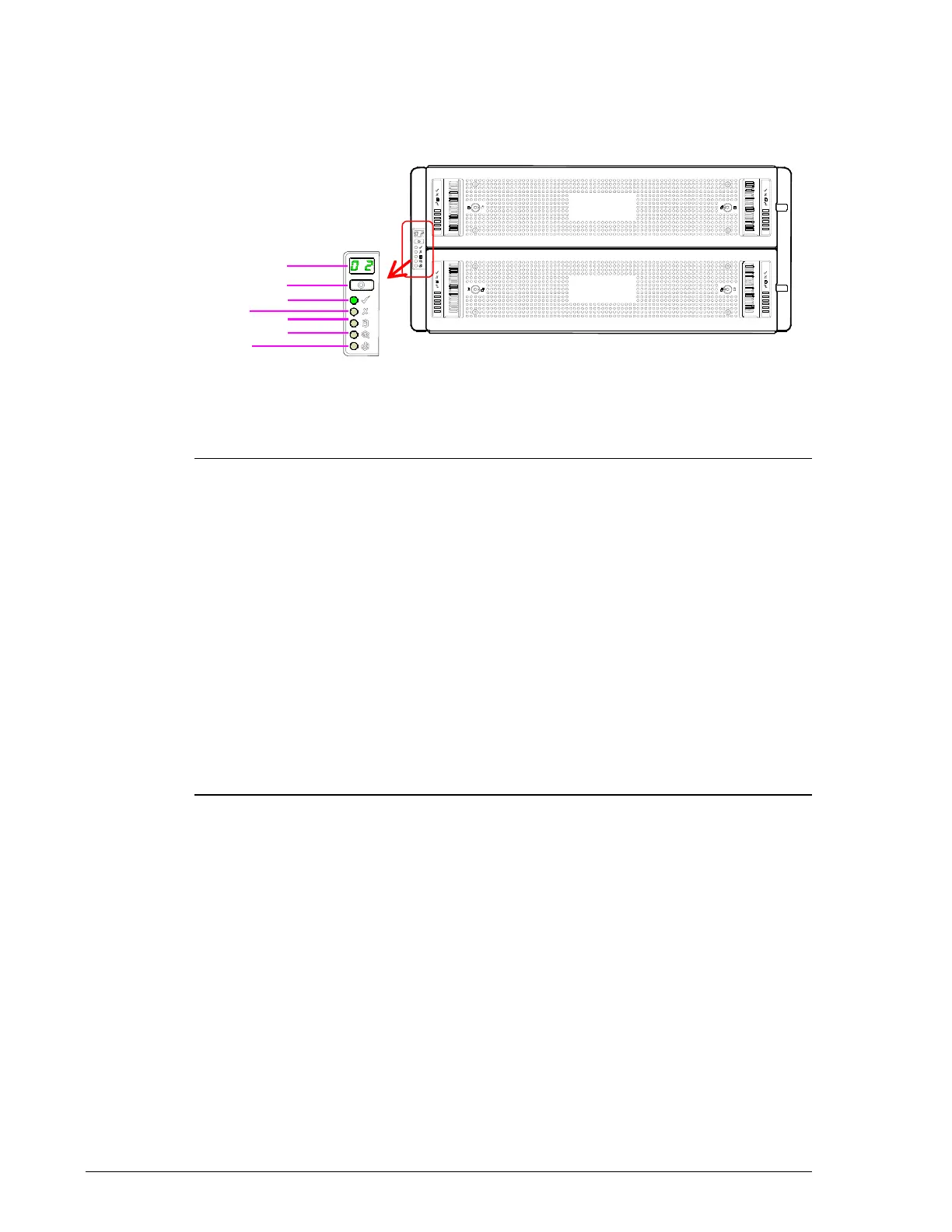

Figure 2-29: DBW front panel with bezel
Legend:
¶
Unit ID Display LED
Not used. (The displayed number may change when you press the Input
Switch. However, it does not affect storage system operations.)
?
Input Switch
Not used.
?
Power On/ Standby LED
See Table 2-5 on page 2-29.
?
Module WNG LED
See Table 2-5 on page 2-29.
?
Logical ALM LED
See Table 2-5 on page 2-29.
?
Drawer 1 ALM LED
See Table 2-5 on page 2-29 and DBW Drive Box on page 2-57.
?
Drawer 2 ALM LED
See Table 2-5 on page 2-29 and DBW Drive Box on page 2-57.
?
?
¶
?
?
?
?
