Procedures before and after replacing components 3–9
Hitachi Unified Storage Hardware Service Guide
Locating hardware components
The following sections apply to CBXSS/CBXSL/CBSS/CBSL, CBL, and DBS/
DBL only.
Refer to the following figures to find the location of the field-replaceable
components on Hitachi Unified Storage systems.

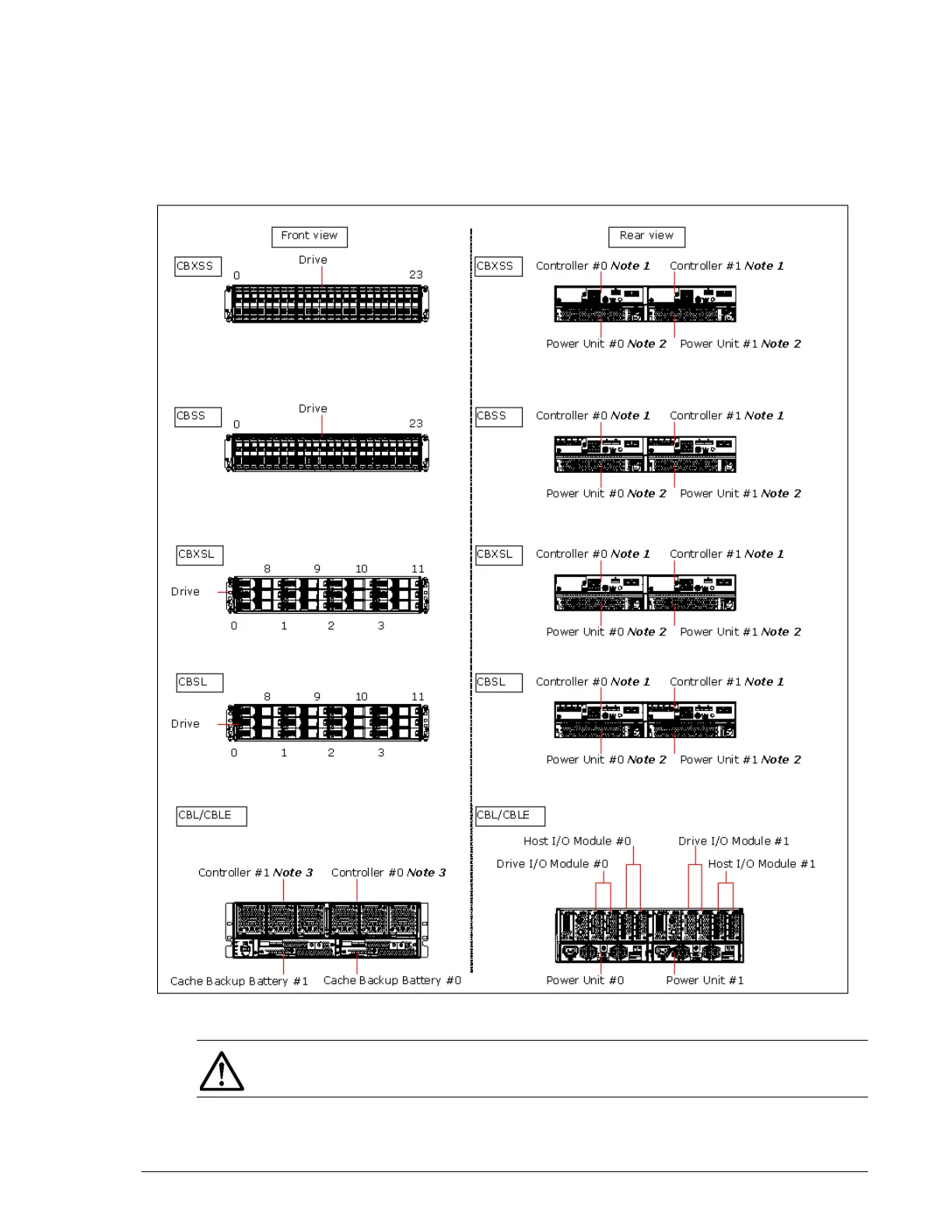

Figure 3-1: Location of replaceable parts on the Controller Box
NOTE 1: Cache memory for CBXSS/CBXSL/CBSS/CBSL is installed in the
controller. The Host I/O Board for CBSS/CBSL is installed in the controller.
