Hardware description 2–17
Hitachi Unified Storage Hardware Service Guide
DBL/DBLD Drive Box
Front panel bezel

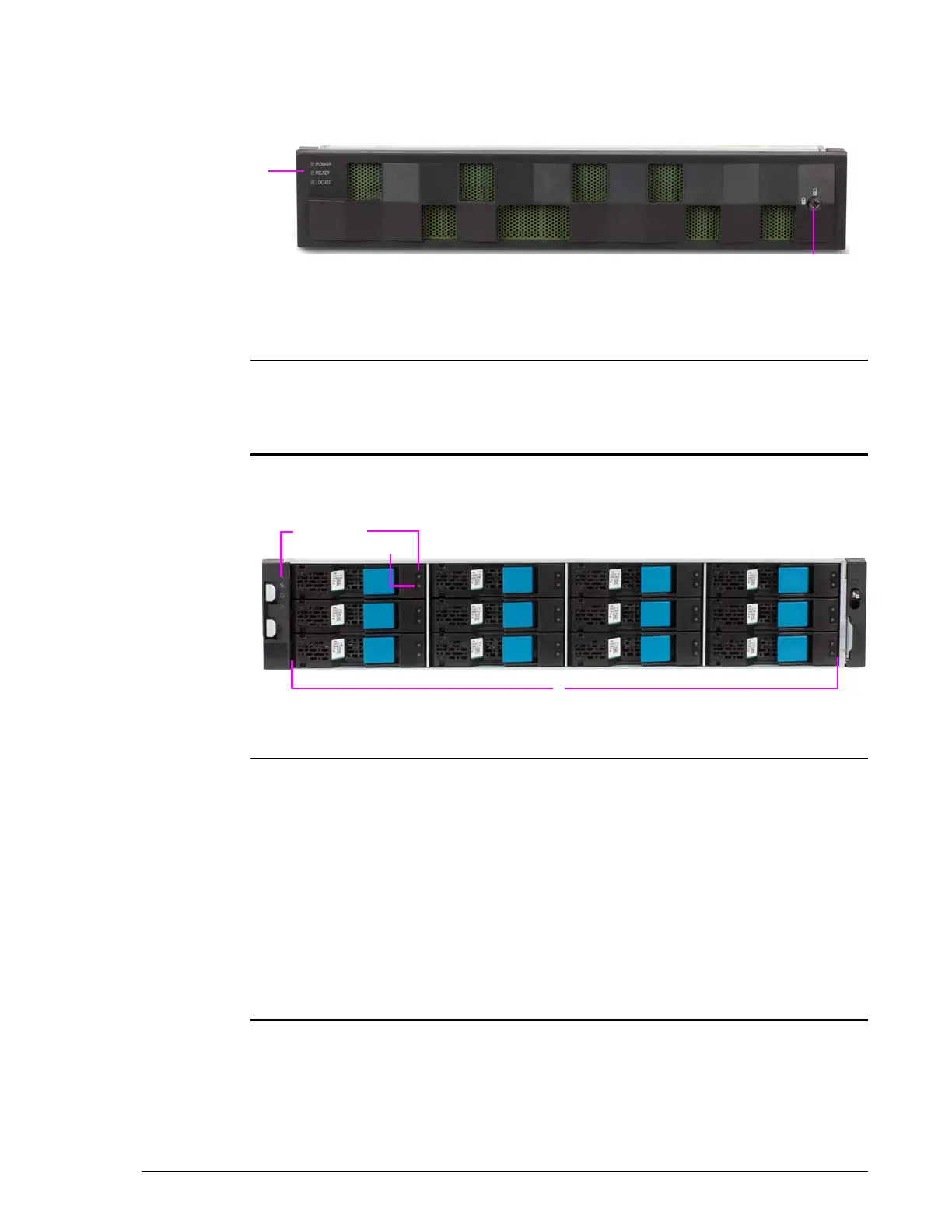

Figure 2-20: DBL/DBLD front panel bezel
Front panel without bezel
•
Figure 2-21: DBL/DBLD front panel without bezel
Legend:
¶
POWER, READY, LOCATE LEDs
See Table 2-3 on page 2-27.
?
Lock
?
¶
Legend:
¶
POWER, READY, LOCATE LEDs
See Table 2-3 on page 2-27.
?
ACT LED
Drive display LED above each drive slot. See Table 2-9 on page 2-31.
?
ALM LED
Drive display LED above each drive slot. See Table 2-9 on page 2-31.
?
Large Form Factor Drives
12 3.5-inch large form factor drives stacked horizontally. Slots are
designated in the following way:
8 9 10 11
4 5 6 7
0 1 2 3
¶
?
?
?
