1. With the storage system powered on and running, insert the drive into
the guide rail and slide it in the direction of the arrow (
c). Handle the
drive carefully to avoid exposing it to shock or rough movement.
2. Push the drive until it reaches the position where a hook of the handle
can enter into the rectangular hole (
?) at the lower part of a frame on the
front side of the drive.
3. Raise the stopper, which has been titled toward you, and then press the
stopper (
?) to lock the drive. If the handle is raised so the hook of the
handle cannot enter into each hole, the drive meets to the drive frame
and cannot be installed.

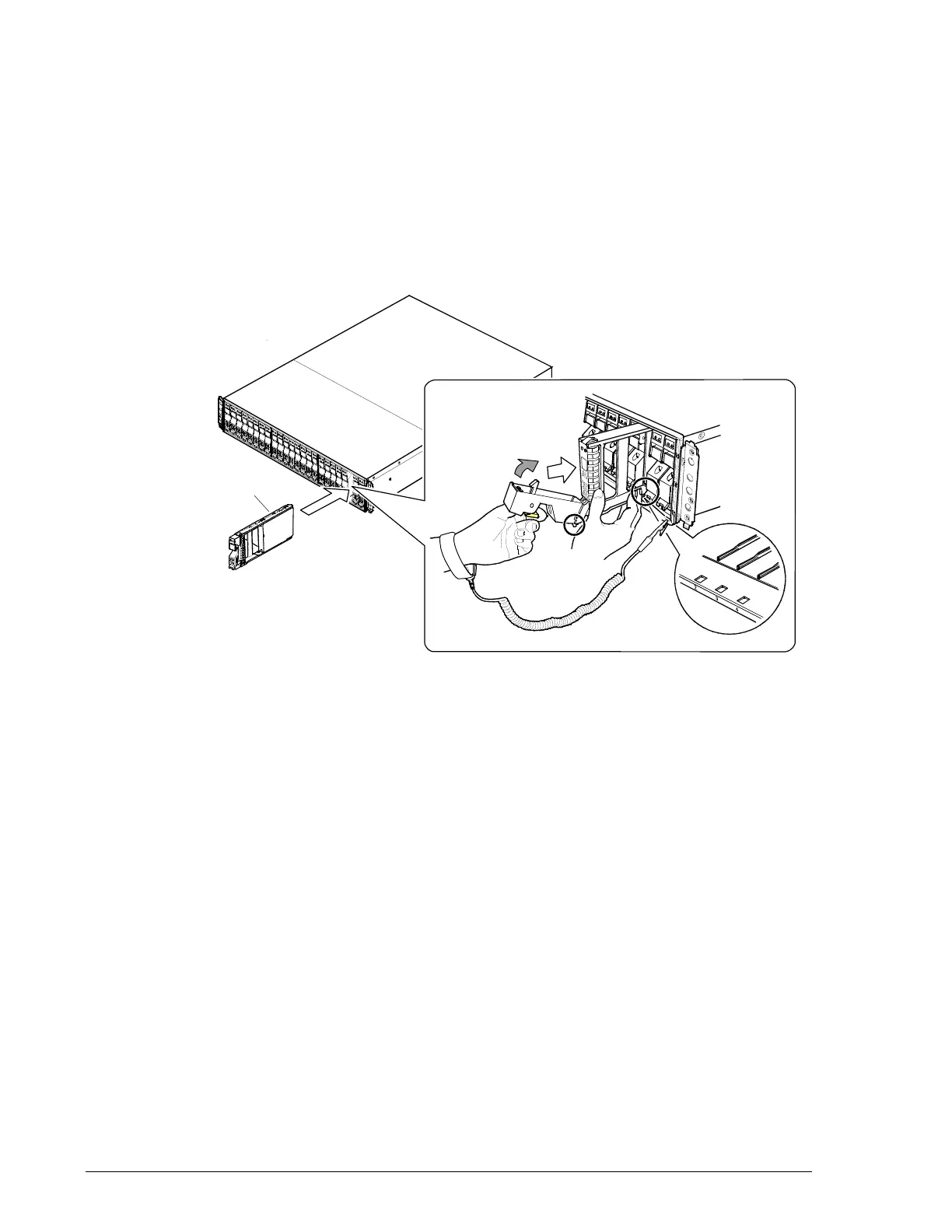

Figure 4-10: Replacing a drive on a CBXSS/CBSS/DBS

Rectangular
hole
Handle
Stopper
Hook
c
d
e
Drive
Drive
Guide rail
