10–6 Replacing a Host I/O Board or Host I/O Module
Hitachi Unified Storage Hardware Service Guide

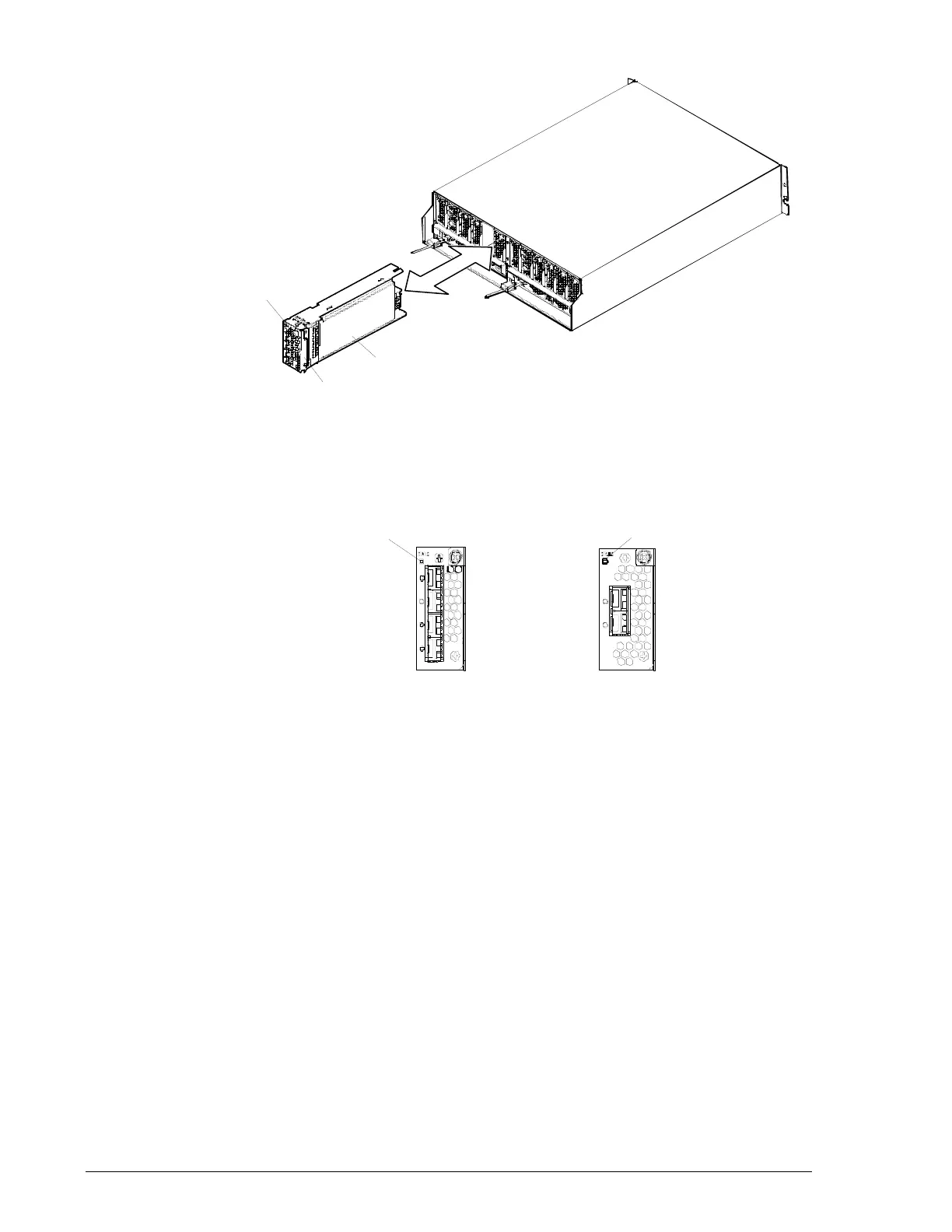

Figure 10-3: Replacing a Host I/O Module on a CBL
Figure 10-4: Host I/O Module LEDs on a CBL
FC Host I/O Module
Screw (blue)
Lever
STATUS LED (green/red)
Host I/O Module
(Fibre Channel 8G)
Host I/O Module
(iSCSI 10G)
STATUS LED (green/red)
