Hitachi IJ UX Service Manual

3-38
[ Setting of SW ]

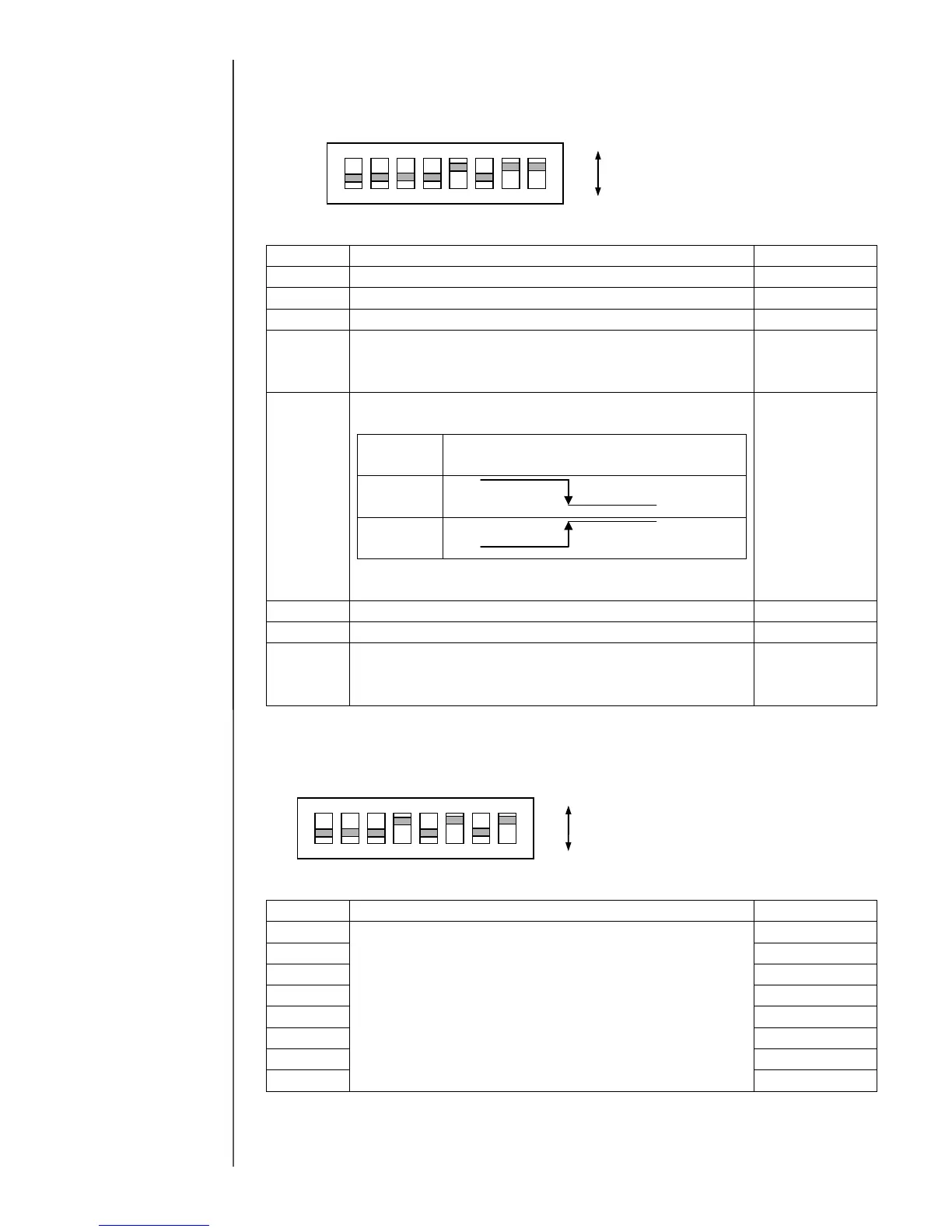

●Setting of SW
[SW4]
SW4
Description
Default
Bit 1
Reserve ( Set to OFF )
OFF
Bit 2
Sets host communication (Set to OFF)
OFF
Bit 3
Sets host communication (Set to OFF)
OFF
Bit 4 Switches the filter constant of strobe signal (capacitance)
ON : 0.047 (uF) + 2.2(uF)
OFF : 0.047 (uF)
OFF
Bit 5 Sets the polarity of strobe signal transmitted from host.
Setting Photo coupler operation
(voltage level at TB3 pin 8)
ON
OFF
ON
Bit 6
Reserve ( Set to OFF )
OFF
Bit 7
Reserve ( Set to ON )
ON
Bit 8 Sets Power supply
ON: In case of using Power supply
OFF: In case of not using Power supply
ON
[SW5]
SW5
Description
Default
Bit 1
Reserve ( Default setting is right table)
OFF
Bit 2
OFF
Bit 3
OFF
Bit 4
ON
Bit 5
OFF
Bit 6
ON
Bit 7
OFF
Bit 8
ON
OFF
ON
ON
4
3
2
1
8
7
6
5
OFF
ON
ON
4
3
2
1
8
7
6
5
