Hitachi IJ UX Service Manual

5-24

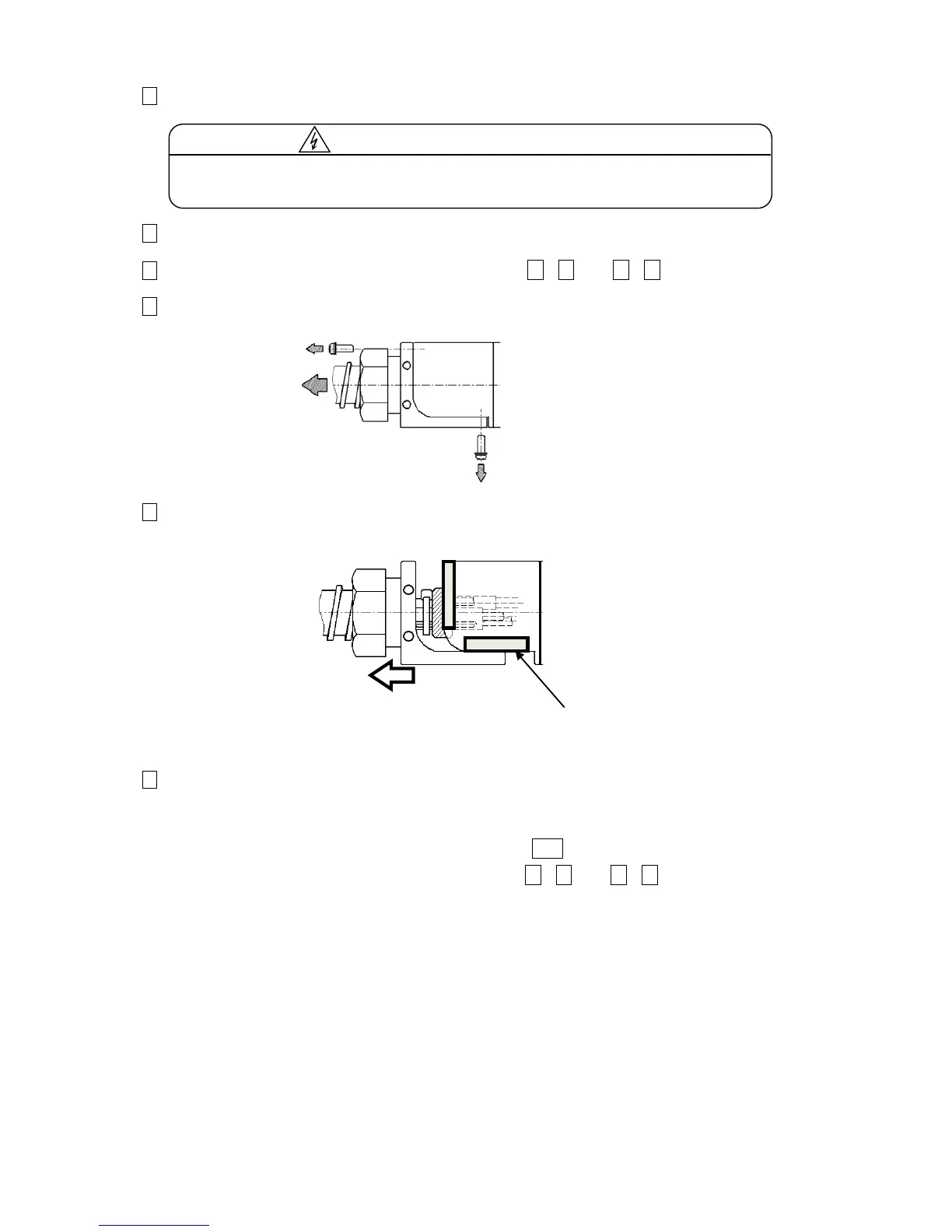

5.14 Head Cable Replacement Procedure
１ Refer to 「4.13 Print head replacement procedure」for separatingto console and head cable.
２
Remove the head cover and heater cover.
３
Perform 「5.12 Head base replacement procedure」１～５ and ７～９
４
Remove the screws(4 PCS.) as shown below.
５
Pull out the wires and tubes.
６
Attach the new head cable.
(１) As re-install the cables and tubes, pay attention totake of Edge guard and breakcables and tubes.。
(２) Refer to 「4.13 Print head replacement procedure」１２ for connection of console and head cable.
(３) Refer to「5.12Head base replacement procedure 」１～５ and ７～９for connecting the Print head
and the Head cable .
Edge guard
Caution against an electric
There is work of opening the maintenance door. In order to avoid an electric shock, be
sure to turn off the power before access the high voltage power supply.
