5-23

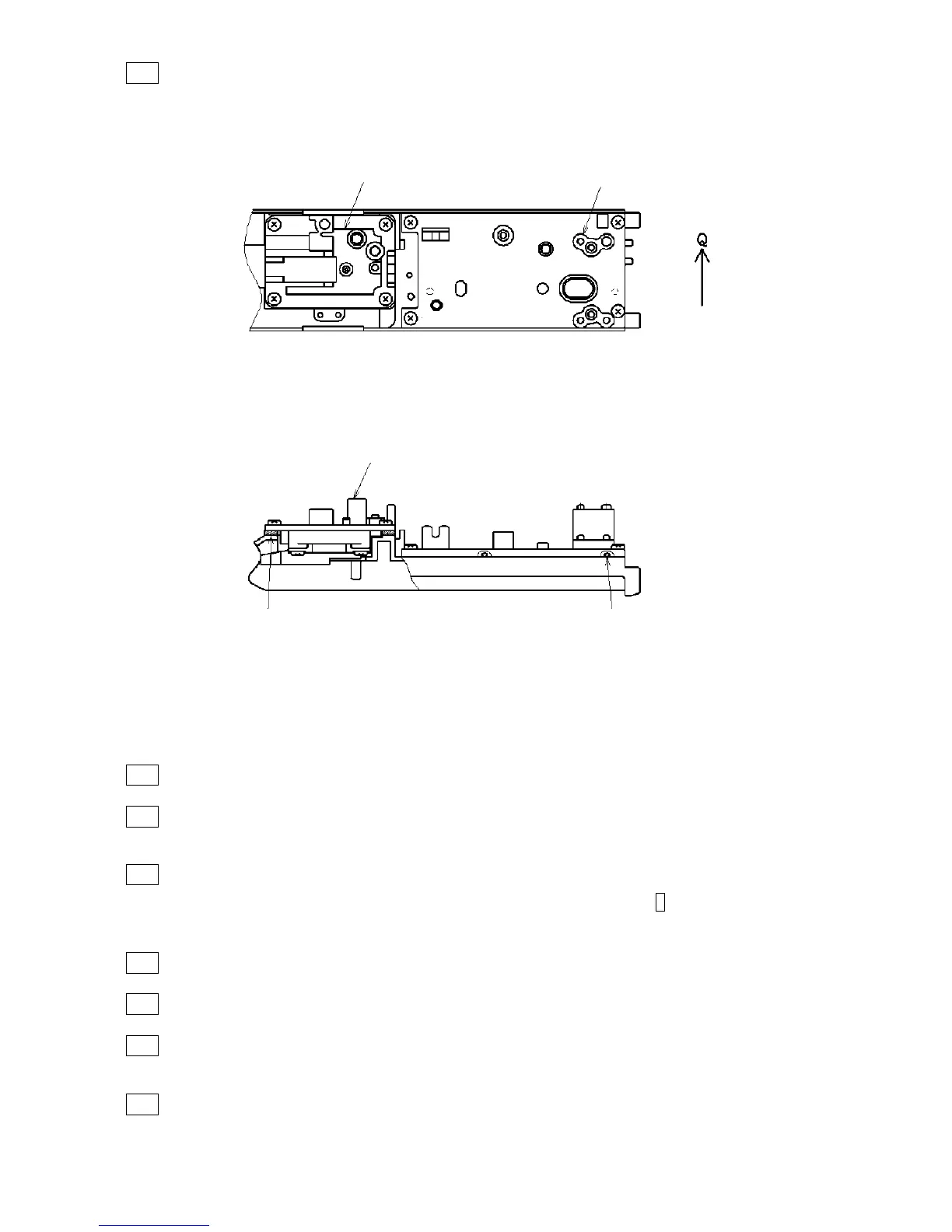

１１ Attach the heater, the deflecting base, the heater spacer packing and the deflecting base packing.
「Caution」Push the deflecting base against the arrow direction
１２
Dispose the APH tube part group on the head base and connect it to the recovery tube.
１３
Fasten the FG and the deflecting electrode GD together. Screw one of the deflecting electrode GD
on the front edge of the head base.
１４
Screw the video signal wire and the high voltage wire. After screwing the high voltage wire,
coat it with silicon. With respect to the coating method, refer to the item 5.11 8.「Deflecting base
replacement Procedure」
１５
Assemble each connector and close the base rear cover.
１６
Attach the gutter base, the sealing valve and the nozzle.
１７
Attach the cable seal plate, the deflecting electrode and the video signal wire.
“Caution” Be careful so as not to crush a tube
１８
Connect the excitation connector and attach all of covers so as not to enwind wires.
