Hitachi IJ UX Service Manual

2-15

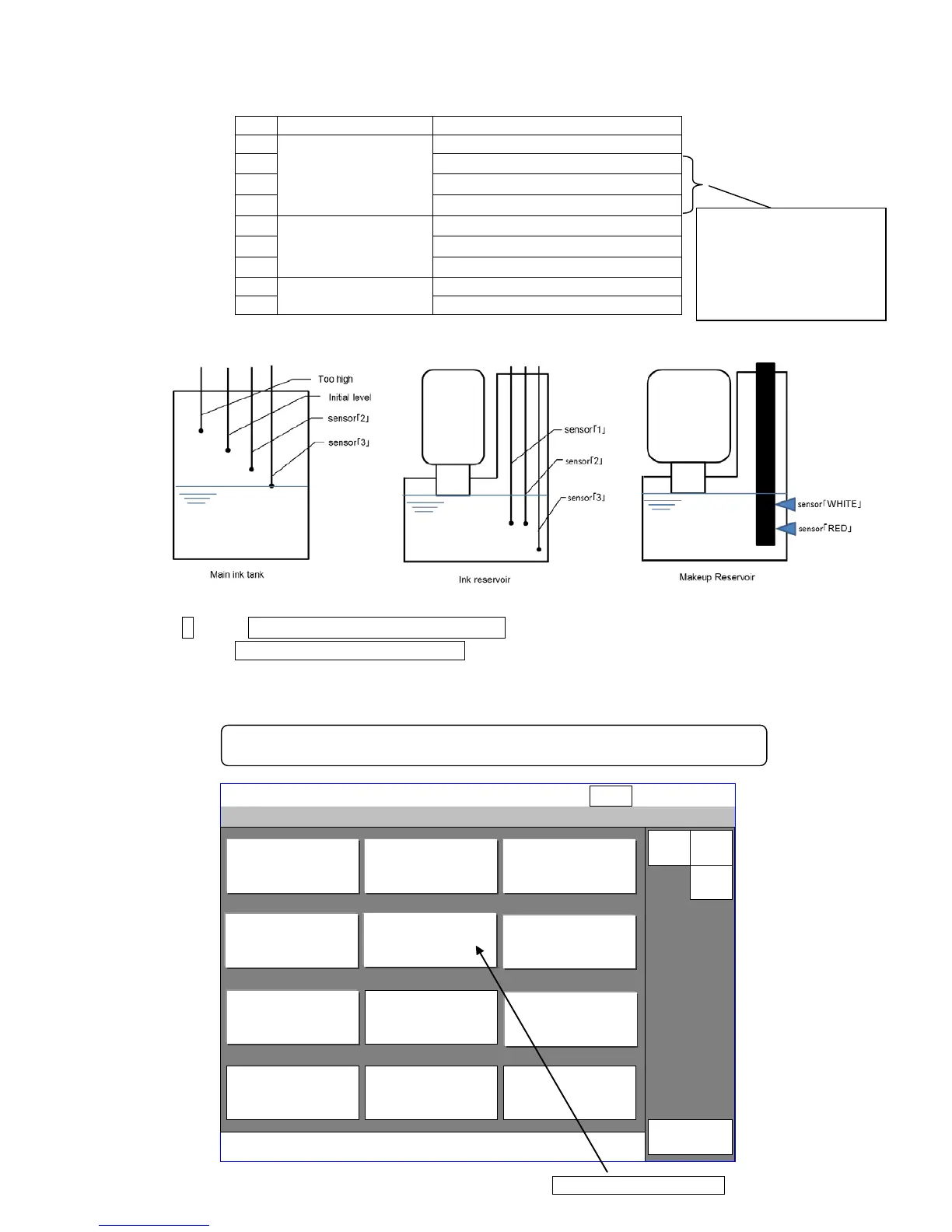

2.3.5 Level sensor confirmation
● The liquid level and the operation of level sensors of the main ink tank, ink reservoir, and
makeup reservoir will be confirmed.
№
Container type
Level sensor
1
Main ink tank
Too high [OF]
2
Initial level [
１
] / Sensor [
１
]
3
Sensor [
２
]
4
Sensor [
３
]
5
Ink reservoir
Sensor [
１
]
6
Sensor [
２
]
7
Sensor [
３
]
8
Makeup reservoir
Sensor [WHITE]
9
Sensor [RED]
●
Conduct this test in "Stop" or "Standby" state.
1 Press Adjustment/operational checkout on the maintenance menu.
If Adjustment/operational checkout is not displayed on the maintenance menu, set the
service personnel maintenance mode on the login user selection screen.
“Adjustment/operational checkout menu” is then displayed.
For information on changing to the service personnel maintenance mode,
refer to “2.1 Setting of service personnel maintenance mode.”
Manual
Start
up
HOME
Back
Adjust./oper. chec
kout
Excitation
adjustment
Charge voltage
confirmation
Phase margin test
Heating unit
confirmation
Auto-phase gain
adjustment
Level sensor
confirmation
[
Stop ]
2015.07.07 12:45
Com=0
Level sensor confirmation
Level sensor confirmation of
Initial[1]/Sensor[1], Sensor[2]
and Sensor[3] can NOT be
conducted in “Standby” state.
It is recommended to conduct
the Level sensor confirmation
in ”Stop” state
