5-10

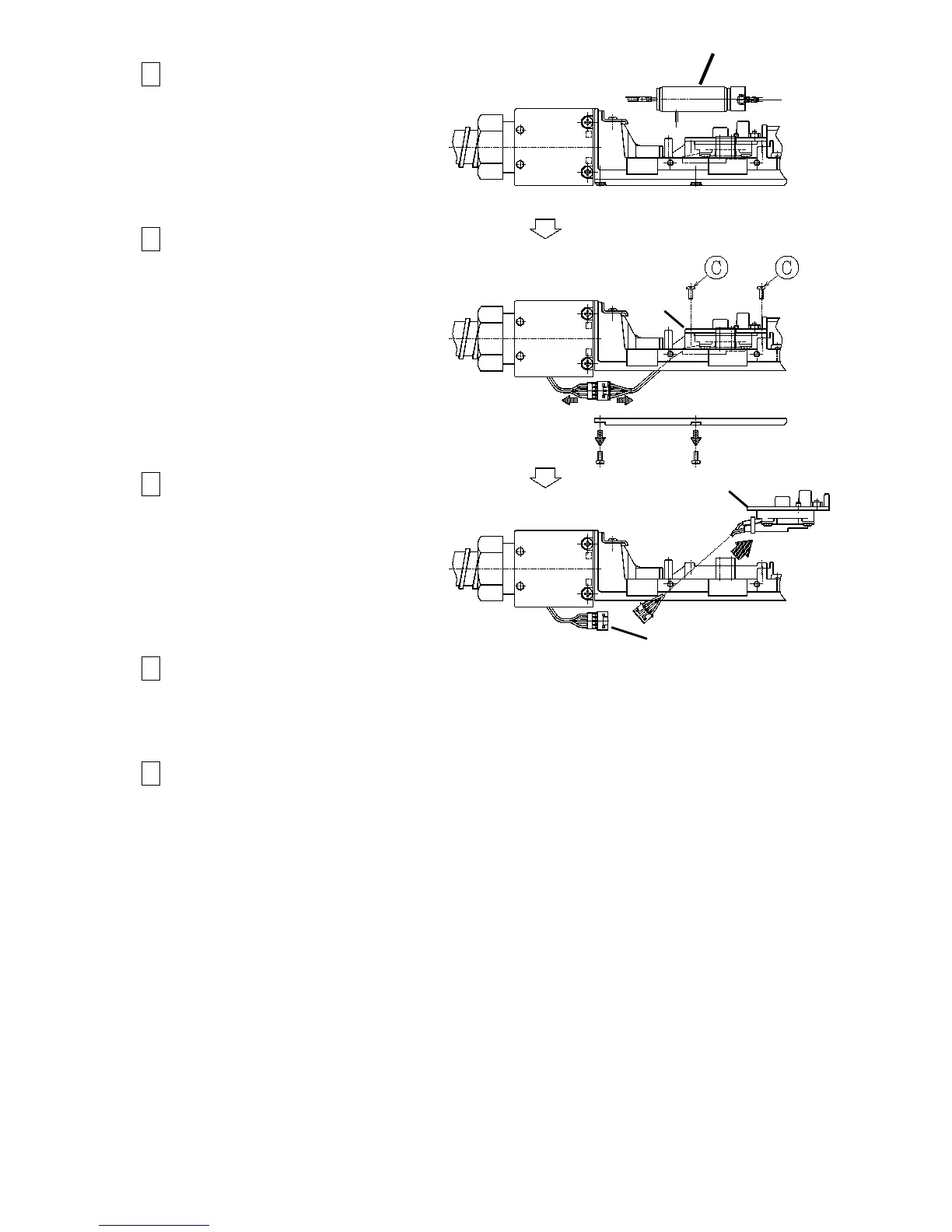

Remove the shutoff valve.(MV9)
(Refer to 5.5 Replacement
of shutoff valve)
Remove the 4 fastening screws
of the heating unit.
Remove the rear cover (8 screws)
Remove the connector and remove
the heating unit.
Prepare a new heating unit and put an O-ring1.7 in the terminal area
of the ink-supply tube(E).
Perform the assembly after dipping the O-ring in makeup, and
confirm that the O-ring does not jump out of the hole.
10 Attach the heating unit.
MV9
Heating unit
Heating unit
Connector
