Hitachi IJ UX Service Manual

6-60

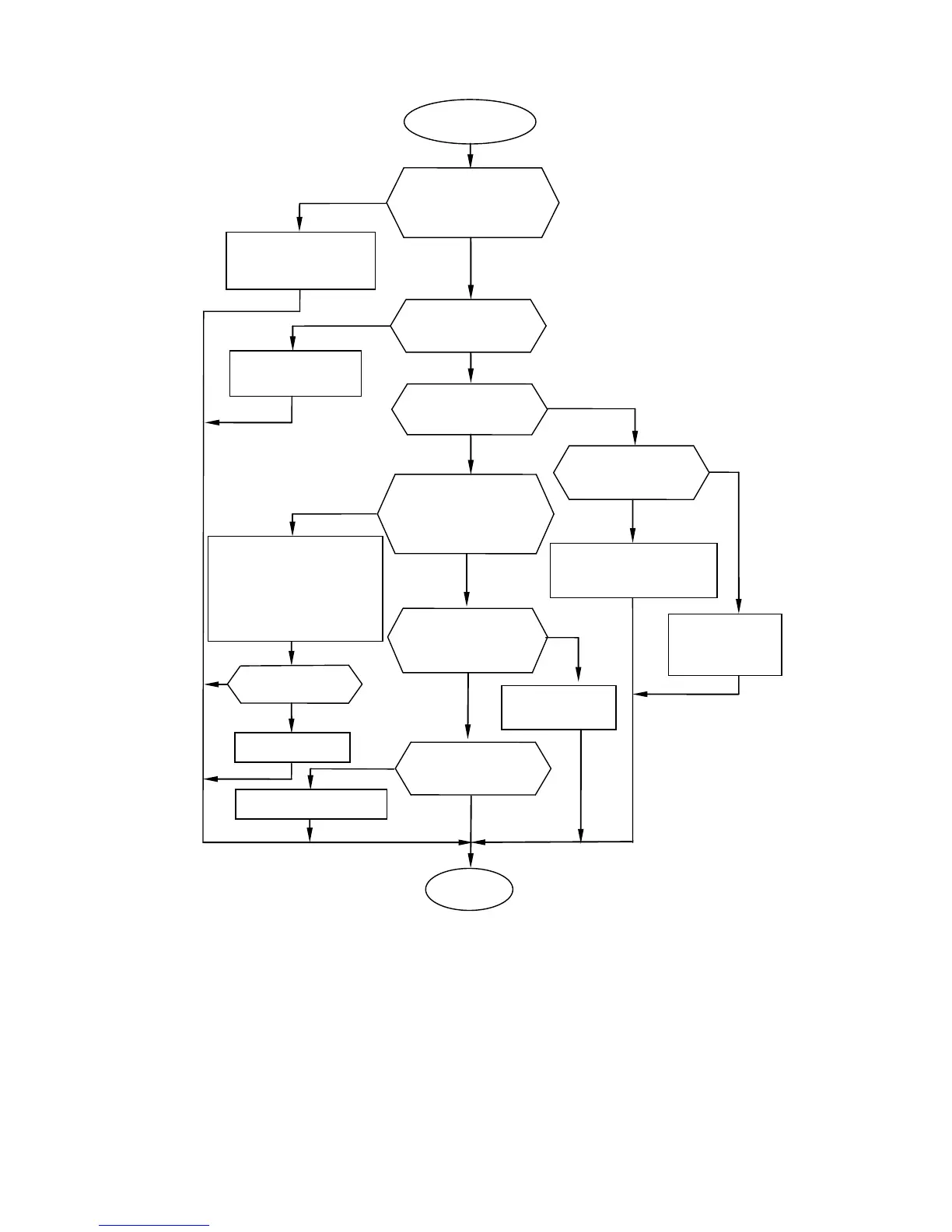

6.5.3 Varying character height
NOTICE
Do not repeat the nozzle backwash procedure more than two times.
If it is repeated to an excess, the ink becomes thin, thereby causing
disordered prints. If the ink is thin and disordered prints are
encountered, replace the ink.
Varying character
height
Optimize the clearance
between the nozzle head
end and print target.
Yes
Was the character
height setting
changed?
No
Is optimum clearance
provided between the
nozzle head end and print
target?
No
Yes
Is the ink pressure
within the specified
range?
yes
No
Yes
Is the
normal height
obtained when the ink
pressure is raised above
the specified limit?
No
Adjust the charge voltage.
Is the charge
voltage properly
adjusted?
Yes
No
Resume the
operation.
Adjust the character
height setting.
Adjust the ink
pressure until it is
within the limits.
Can the ink pressure be
adjusted?
No
Yes
Replace the ink.
Are normal prints
obtained?
No
Yes
Provide pressure relief and
then replace the pressure-
reducing valve.
Since it is conceivable that the
ink flow path may be clogged,
clean the ink final filter and
joints, backwash the nozzle,
and disassemble and clean the
nozzle.
Yes
Is the ink
stream
positioned at the center
of the
charge electrode?
Adjust the ink
stream position.
No
