Hitachi UX Twin Nozzle Service Manual

3-54

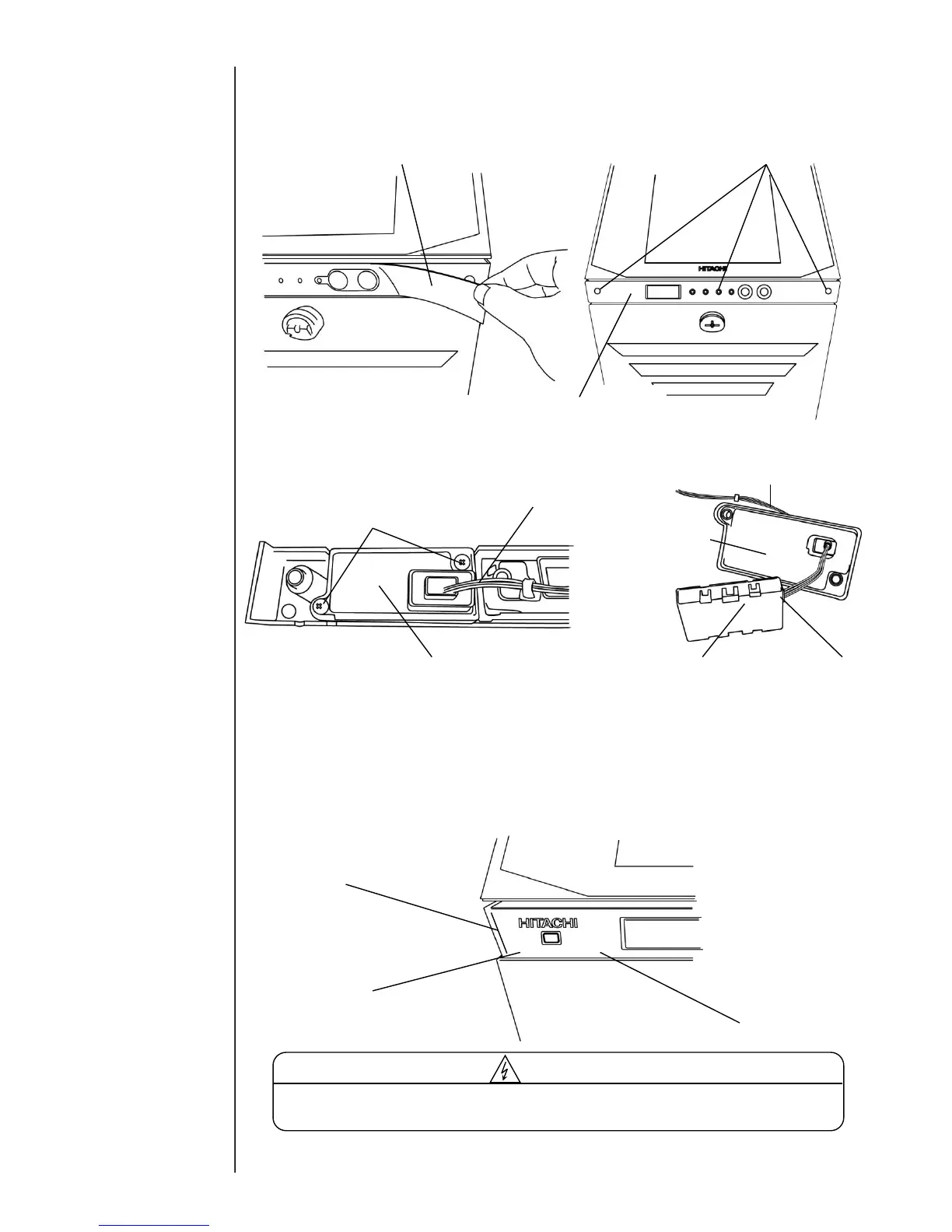

(5) Peel off Front-Beam sheet.
(6) Unscrew three (3) fixing screws for Front beam, and then remove Front beam.
[Caution] When you remove Front beam, DO NOT pull RFID reader harness by force.
(7) Unscrew two (2) fixing screws for RFID reader cover and remove RFID reader cover.
(8) Pull out RFID-reader harness from connector.
(9) Replace RFID reader with a new one. Then attach the removed parts in reverse
order of the procedures above.
[Caution] When you attach Front-beam sheet, be sure to follow three (3)
points below.
• Replace Front-beam sheet with a new one.
• Confirm that there is NO adhesive remaining on the Front beam.
• Attach the new Front-beam sheet by pushing the Front-beam sheet to
the left side of the convexed frame.
When you attach Front beam, be sure that the electrical wires or cables are
NOT to be pinched between any parts.
Danger of Electrical shock
Front-beam sheet
connector
RFID reader
RFID reader harness
RFID reader cover
Fixing screws (2 pieces )
for RFID reader cover
RFID reader harness
RFID reader cover
Front beam
Fixing screws (3 pieces) for Front beam
Front-beam sheet
Connector
Left side of the convexed frame.
Front beam
