5-3
5.3 Gutter configuration and replacement method
5.3.1 Gutter configuration
5.3.2 Replacement method

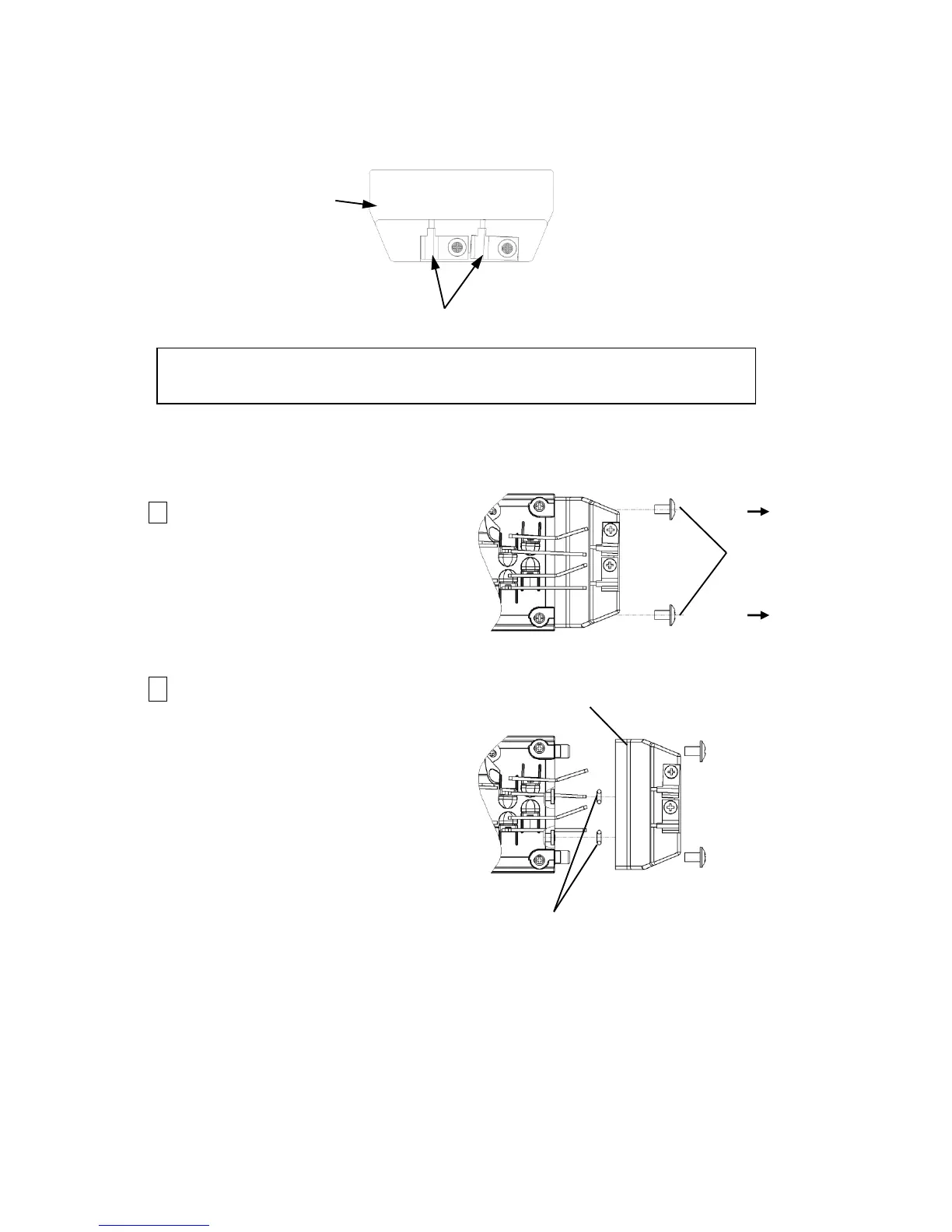

１ Remove the 2 fastening screws
ï¼’ The gutter base comes off.
The gutter and the gutter base are connected and cannot be disassembled.
Gutter
Gutter
base
Fastening
screws
Gutter base
O-ring 2.2
