Hitachi UX Twin Nozzle Service Manual

4-8
4.2 Main Ink Tank Maintenance

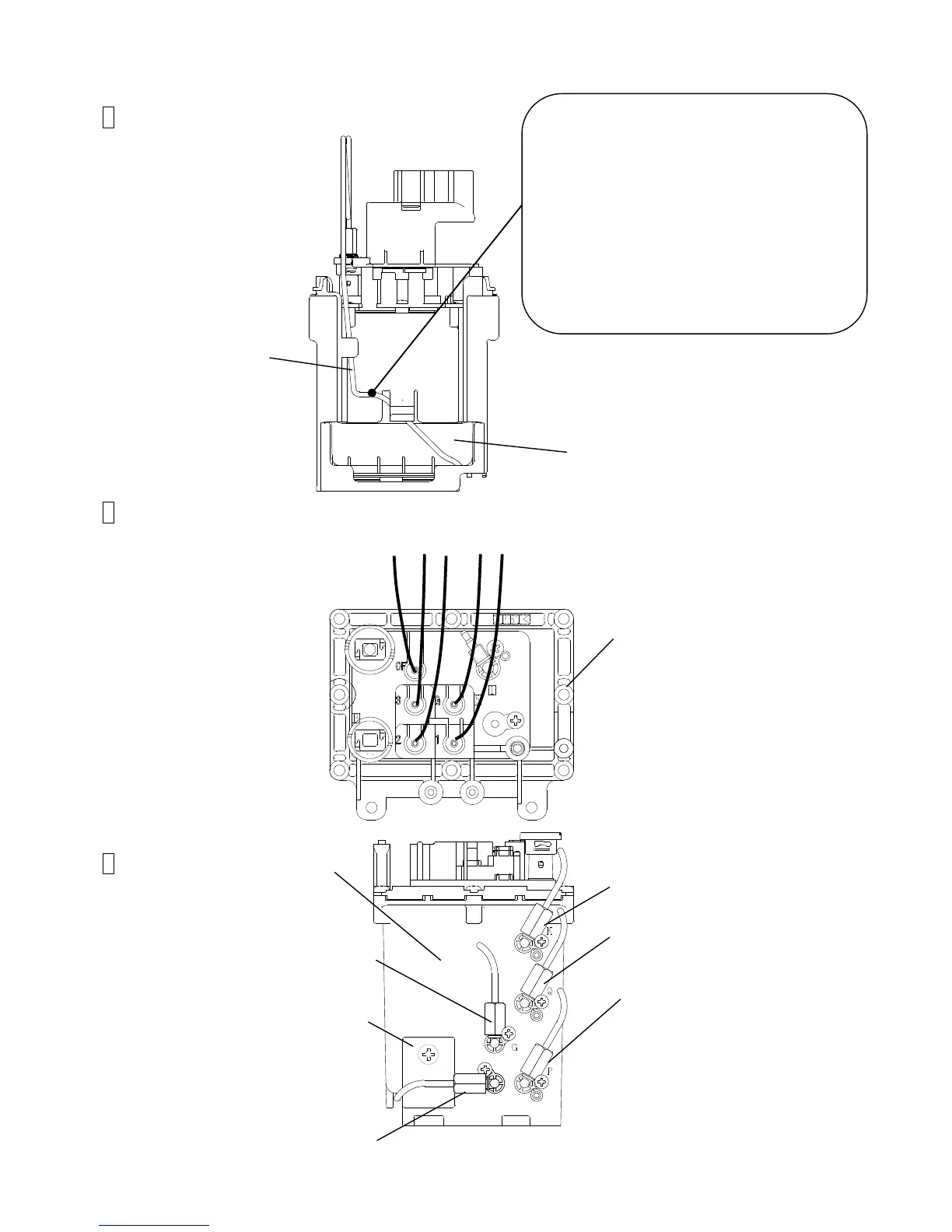

4.2.1 Structure of Main Ink Tank
1 Front
2 Top
3 Rear
Main Ink Tank
Drain Tube
Ink Level can roughly be confirmed by
viewing the Drain Tube.
[CAUTION]
When Air Trap is observed, conduct Air
removal until no Air Trap is observed.
Check the Level surface.
The Air Trap will not interfere with the
operation of the printer.
Main Ink Tank
Fixing screw
Tube Lock
(K)
Tube Lock
(Q)
Tube Lock
(P)
Tube Lock
(G)
Tube Lock
(Drain Tube)
Main Ink Tank
Yellow
OFF
Red
3
チ
ュ
ー
ブ
ロ
ッ
ク
（G
）
Blue
2
Black
G
White
1
