1.3 Installation
1.3.1 Power supply wiring
[Applicable power cable]
Use a power cable that meets the following requirements:

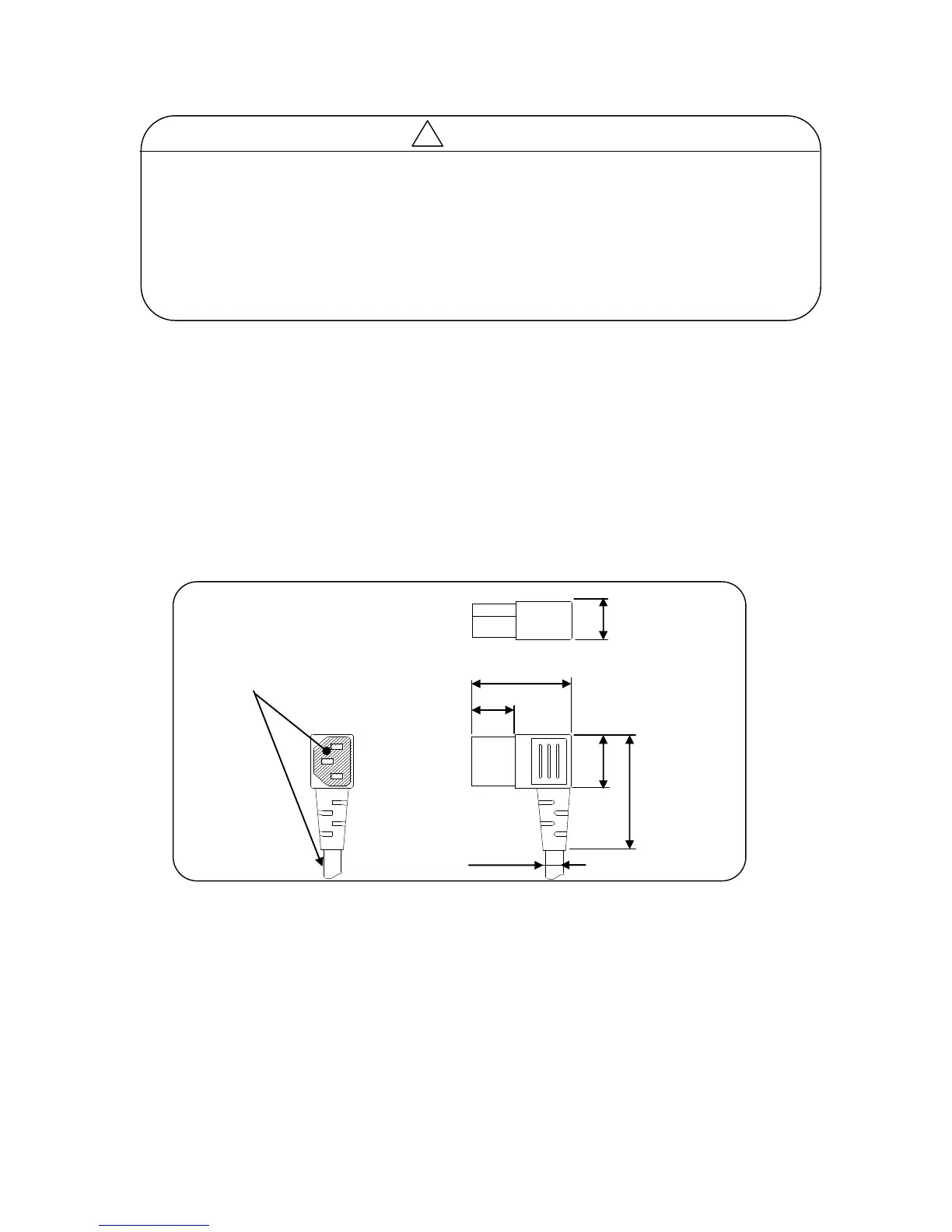

- Connector specifications: IEC inlet connector (3-pin, L-type)
Cable of following shape and dimensions
- Outer diameter: Ø7 - 10 mm
- Min. conductor size: 0.75 mm
2
- Max. cable length: 5 m (cable should be as short as possible)
Other specifications: Cable should conform to safety standards in the country s
where it is used.
Precautions concerning UL:
If the printer is used in North America, use the cable that meets the following
requirements in addition to those given above.
- Standard: UL/CUL certified
- Rating: 125 V, 7A or more
- Plug: NEMA5-15P
- Cable: Type SJT, 18AWG, 60 °C or higher
- Cable length: 1.5 - 4.5 m
•Use the proper plug. Be sure to ground properly.
•Locate the equipment near an electrical outlet and arrange so it can be easily
disconnected.
•Use a power cable that is within the specified range.
•Do not bundle the light electrical cable together with the power cable outside the
unit so the light electrical signals (connection signals to the various signal
connections and external communication connectors) are not affected by noise
from the power cable.
