Hitachi UX Twin Nozzle Service Manual

4-32

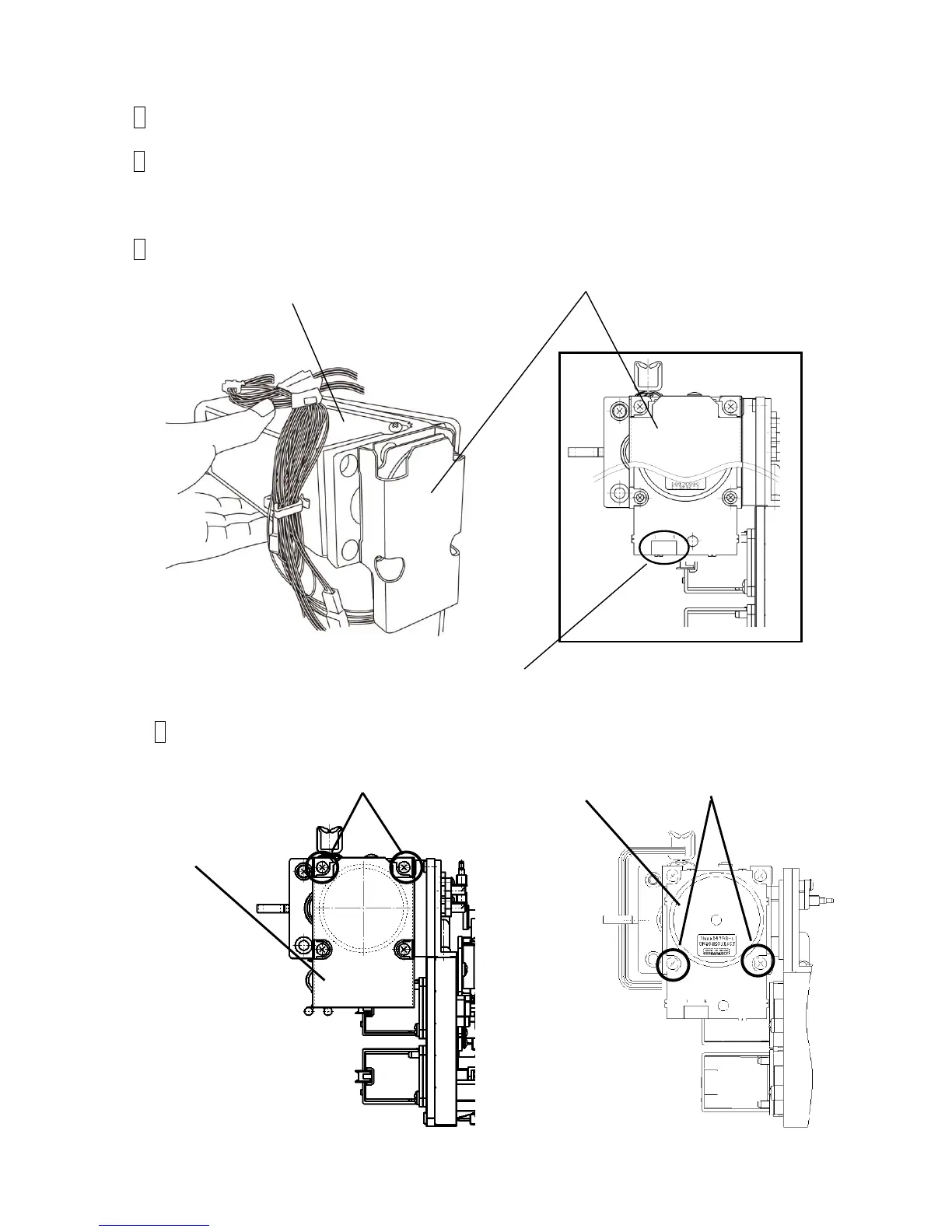

4.8.4 Motor replacement
1 Turn off the power supply.
2 Perform “4.1.3 Approach to the parts on the rear side of the equipment”, “(1)Access
method from the front” and open the unit door.
[Caution] Be careful not to catch the tubes.
3 Remove the connector from the Motor.
4 Remove the fixing screws (4 positions) of the Motor and Motor cover.
Drive unit
Motor connection connector
Motor cover
Fixing screw (2 pcs)
Motor
Motor cover
Fixing screw (2 pcs)
