Hitachi UX Twin Nozzle Service Manual

4-76
4.15.6 Recovery method when the CV assembly is drying/clogging
1 Remove the tube connecting block of the ink reservoir, and then insert a metal pin
or the like into the hole of the CV assembly.
(The SUS ball which is firmly adhered to the O-ring inside the CV assembly shall be
separated.)

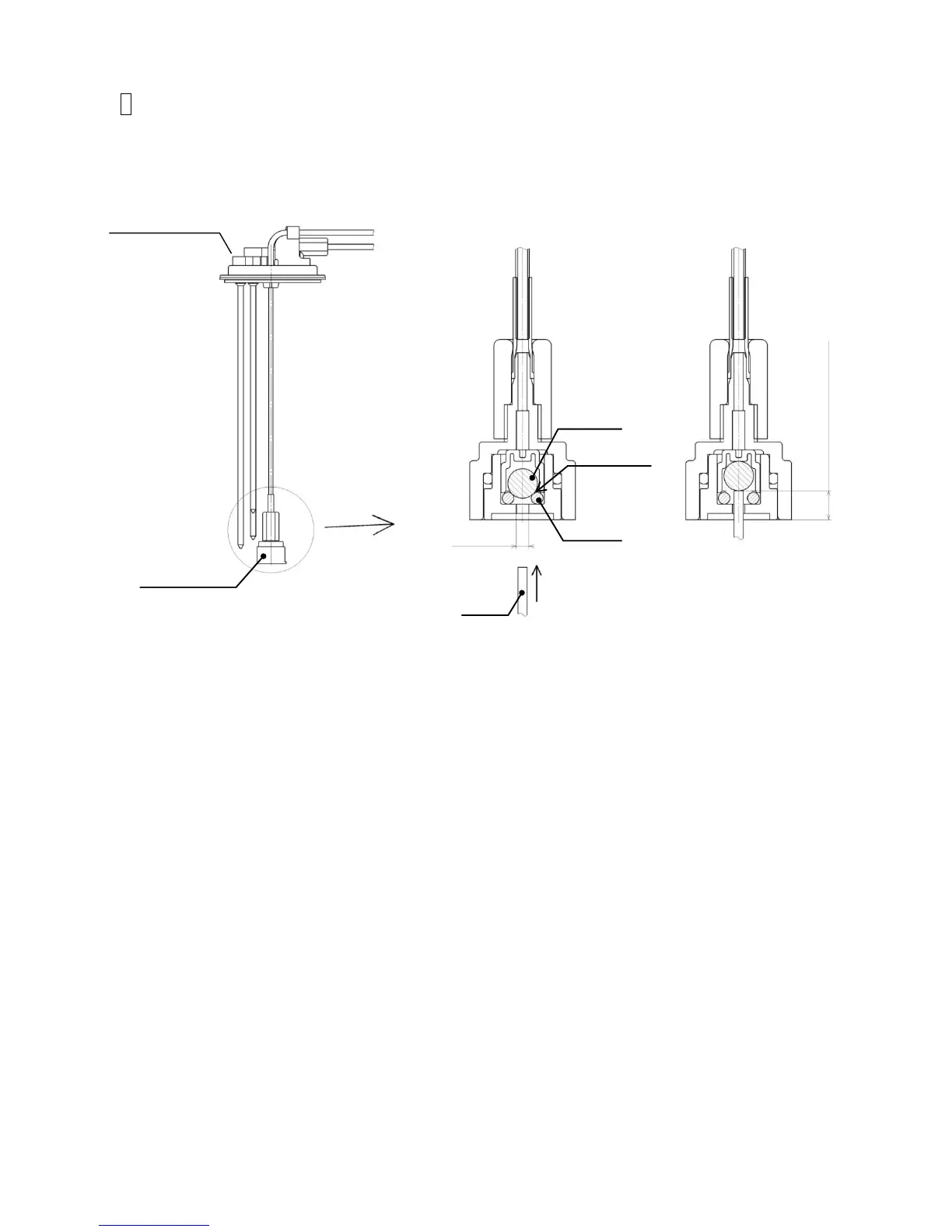

CV assembly
Tube connecting block
(Before insertion)
(After insertion)
SUS ball
O-ring
Pin
Cross-sectional view
Stick part
Enlarge
4.7mm：Reference inserting dimension
φ2mm
