Hitachi UX Twin Nozzle - RFID Reader

3-53
3.3.19 RFID reader
[Function]
- Read Ink ID or Makeup ID from IC tag on Ink/Makeup cartridge bottle.
Select Login user ID by reading IC card and register or call the print data.
[Note at the replacement]
- When you replace RFID reader, be sure to turn the main power off.
[Procedures of RFID reader replacement]
(1) Turn off the main power.
(2) Open the control panel.

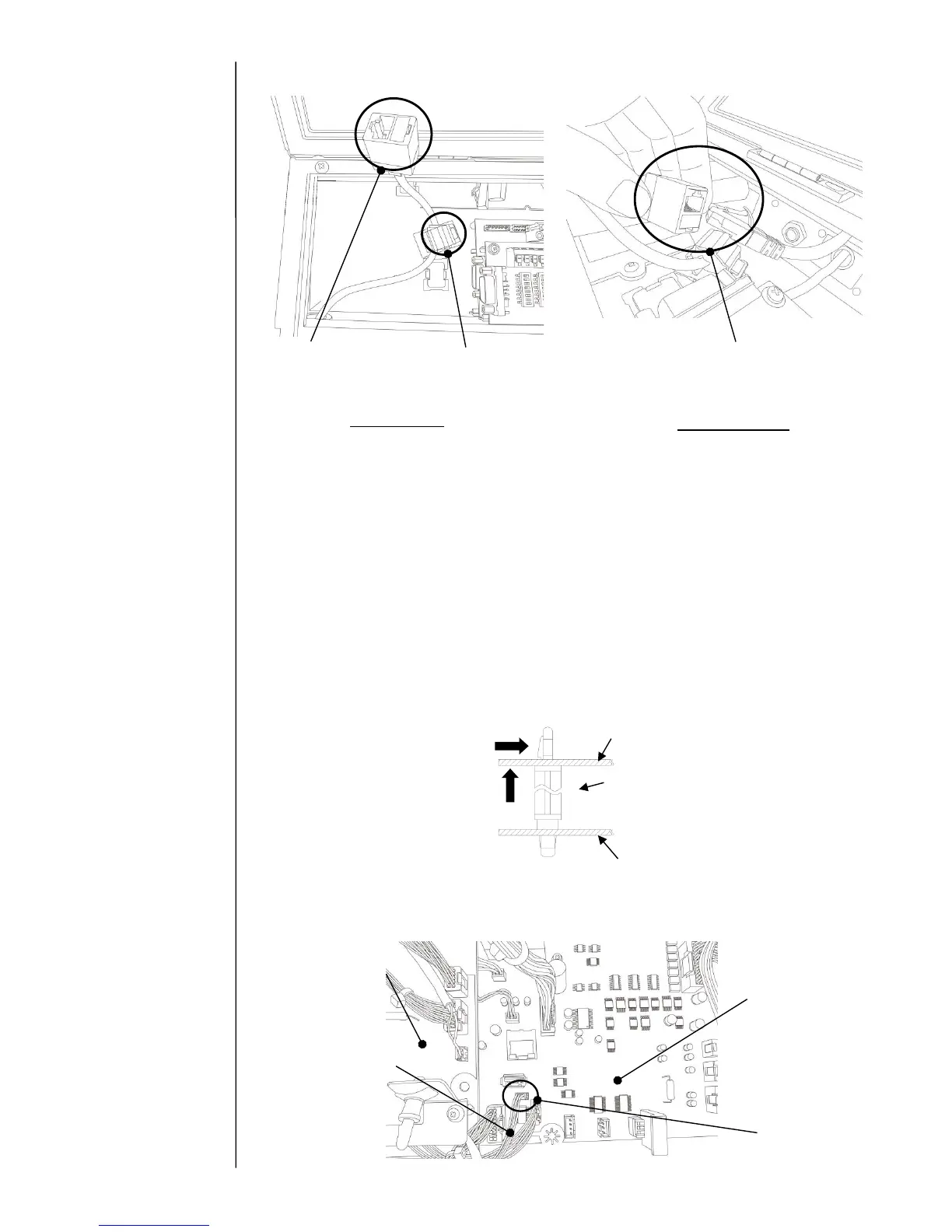

(3) Remove Protective cover as shown in the drawing below.
Push the Hook of the fixing spacer by finger, and then pull up Protective cover.
(For Two spacers)
(4) Remove RFID reader harness from CN27 (connector) of EZJ133 board.
Protective cover
EZJ125 board
Spacer for fixing
protective cover (2 pieces)
Push Hook
Pull up Protective cover
CN27
EZJ133 board
RFID reader harness
EZJ125 board
LAN cable connecting
port of LAN Relay
Harness
Fixing clamp in I/O Area
Pull the external LAN cable in through the
port of connection base in the rear and surely
connect it with LAN Relay Harness.
View from top
View of I/O Area
