4-57
4.13 Print Head Replacement Procedure
1 Carry out “Ink drainage.”
2 Turn off the power supply.

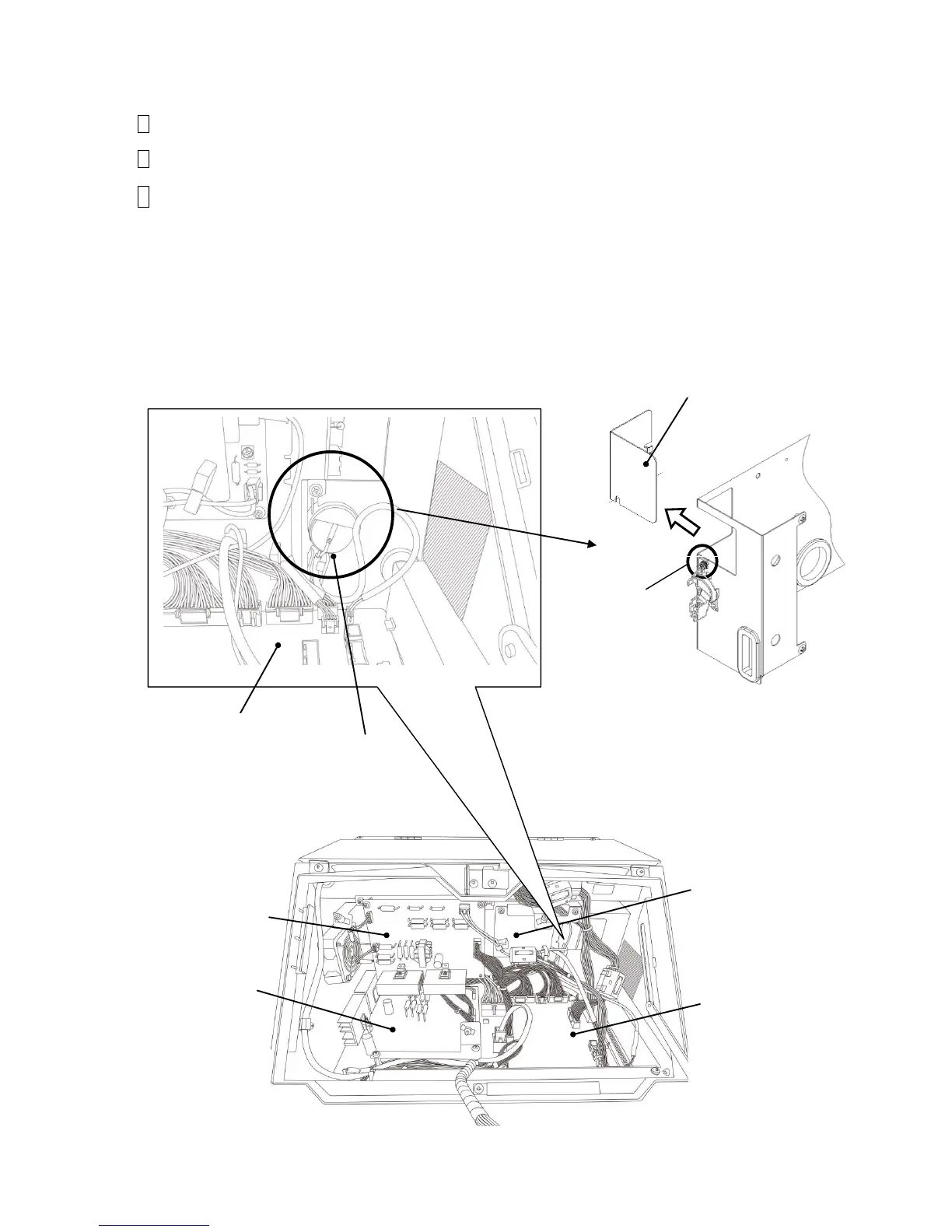

3 Open the maintenance cover and remove the print head connectors (10 locations) in the
control area.
[Caution]
When removing the print head connector which is connected to High voltage power supply,
loosen the screw of battery first, and then remove Board base cover UXT.
Be careful not to lose the removed screw.
EZJ134 board
EZJ125 board
EZJ133 board
Multiple power supply 1
Loosen M3x8
Battery
Board base cover UXT
EZJ133 board
