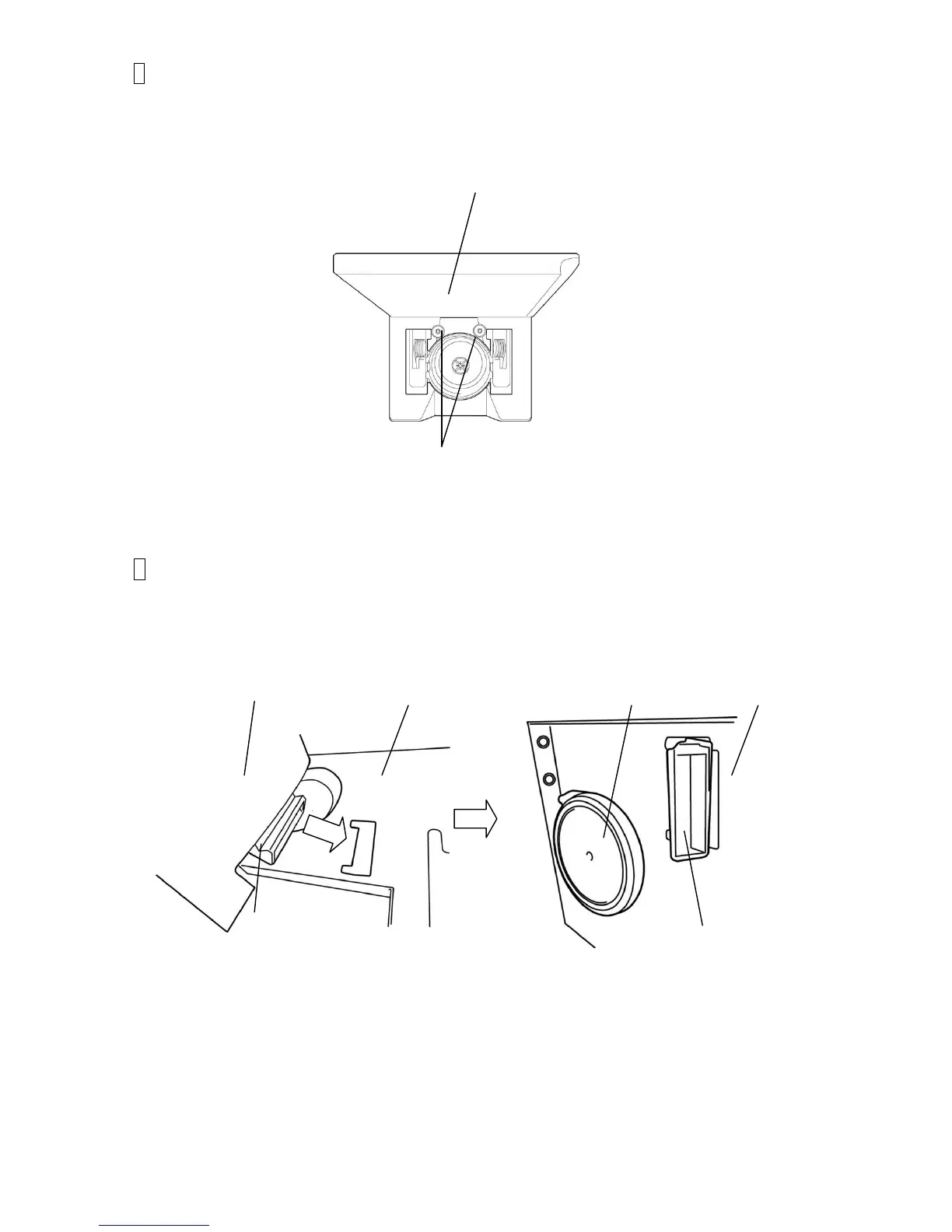

7 Remove the Fixing screws of Inner cover(SOL) (2 positions) and remove the Inner
cover (SOL).
8 Clean the area stained with ink and the install the new Makeup Reservoir in reverse order
of the procedures above.
[Caution] When installing the Makeup Reservoir, out the hook of the Makeup
reservoir into the hole of the Reservoir base first.
Fixing screws
Inner cover (SOL)
Hook
Reservoir base
Makeup reservoir
Hook
Reservoir base
Makeup reservoir
