Hitachi UX Twin Nozzle Service Manual

3-2

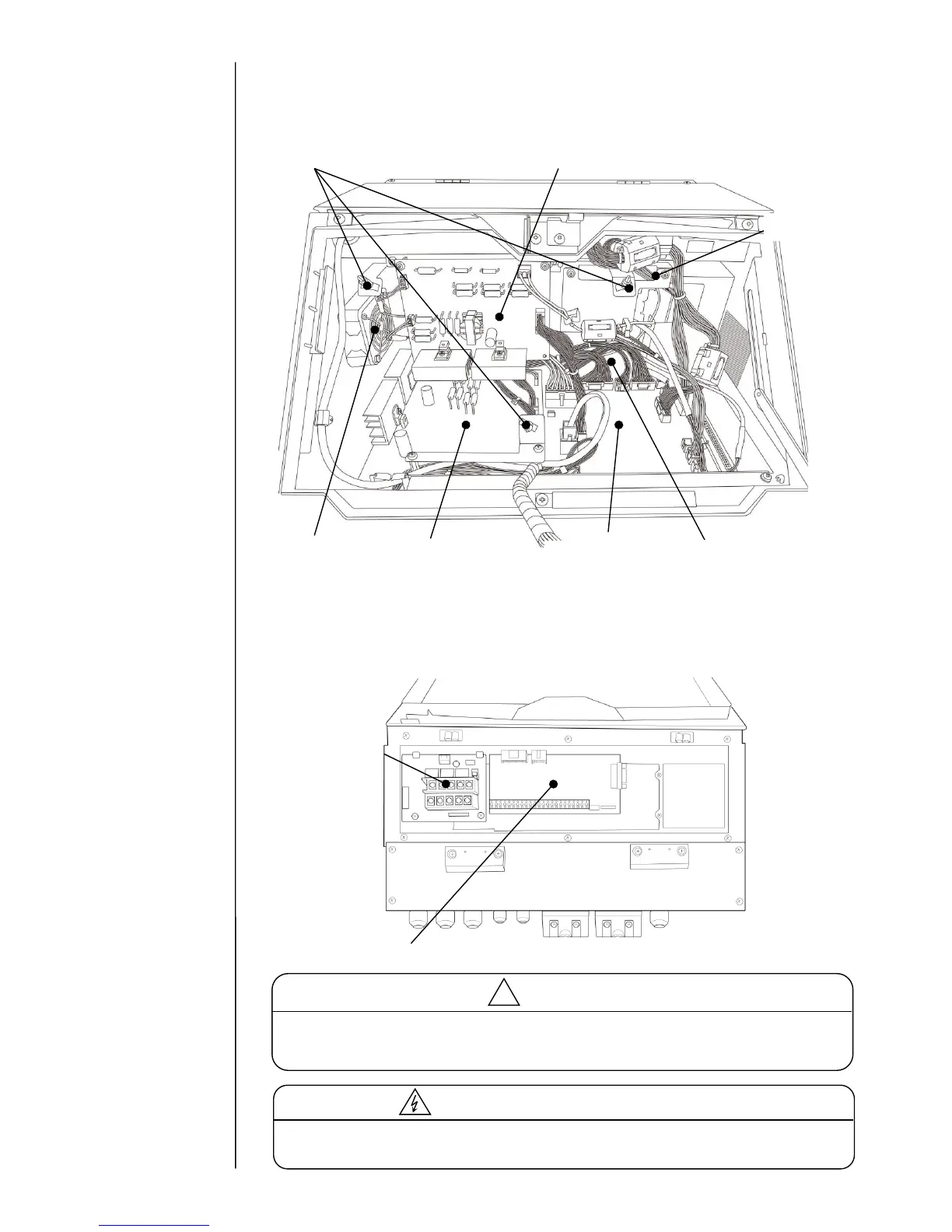

[Engine part (cover is opened)]
[I/O part (cover is opened)]
When performing the mounting of each cover, be sure that the electrical wires and
cables are NOT pinched between any parts.
Caution against electric shock
!
Caution
When you open the maintenance door with the surface of the main body is wet, be
sure to remove the water on the main body to prevent water intrusion inside of the
main body.
EZJ125 board
EZJ134 board
EZJ133 board
DC fan
EZJ138 board
Battery
EZJ119 board
(Available as option)
Fixing screw (M3x2)
EZJ127 board
Fixing screw (M3x2)
Spacer for fixing protection cover
