FUEL SYSTEM (PGM-FI)
5-97

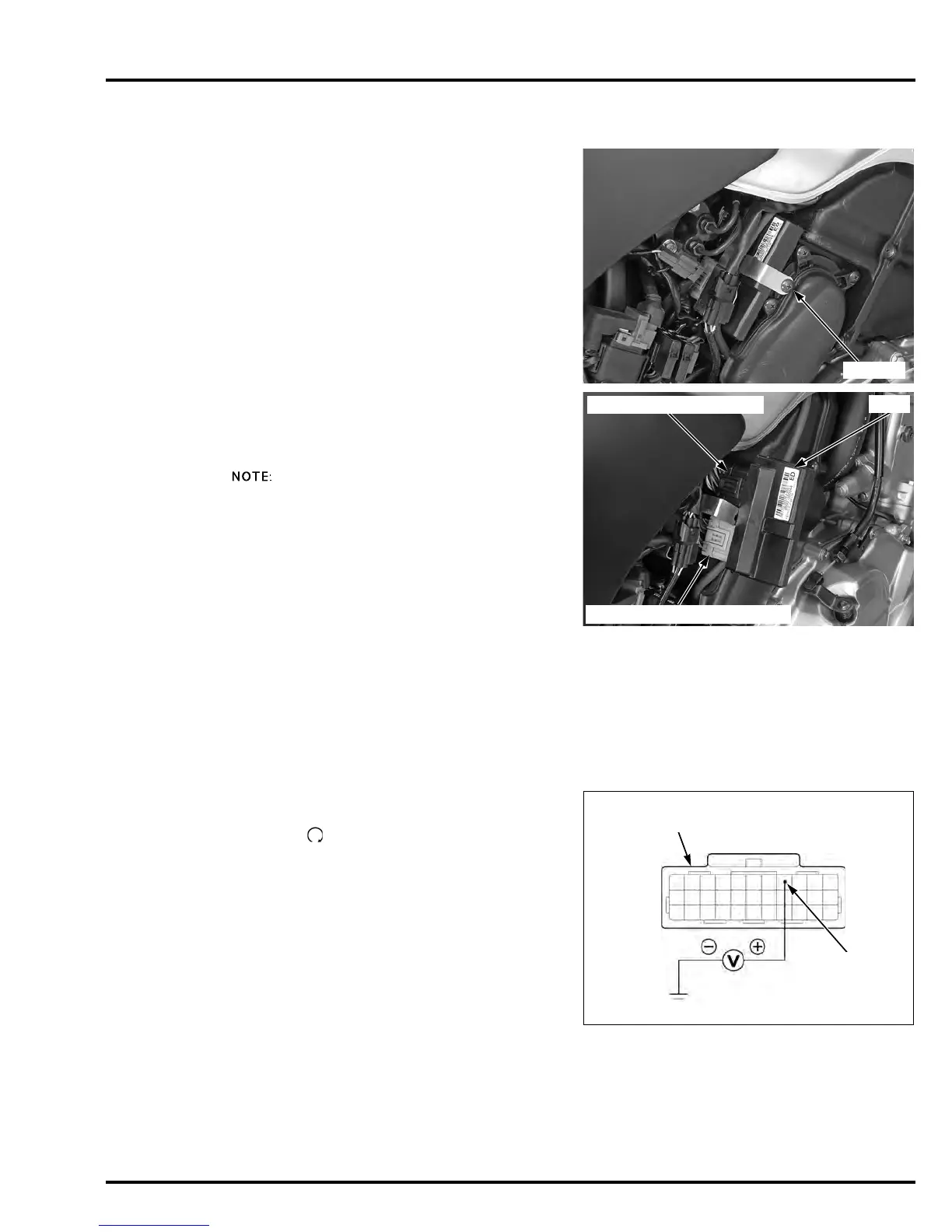

ECM
REMOVAL/INSTALLATION
Remove the right side cover (page 2-5).
Turn the ignition switch to "OFF".
Remove the screw.
Pull out the ECM from the stay.
Disconnect the 33P (Black and Light gray) connec-
tors from the ECM.
Installation is in the reverse order of removal.
After replacing the ECM, register the new transpon-
der keys (page 21-6).
ECM POWER/GROUND LINE
INSPECTION
ENGINE DOES NOT START (No DTC and MIL
blinking)
1. ECM Power Input Voltage Inspection
• Before starting the inspection, check for loose
or poor contact on the ECM 33P connectors
and recheck the MIL blinking.
Disconnect the ECM 33P (Black) connector.
Turn the ignition switch ON and engine stop
switch " ".
Measure the voltage at the ECM 33P (Black) con-
nector terminal and ground.
Is there battery voltage?
YES – GO TO STEP 2.
NO – GO TO STEP 3.
ECM
33P (Black) CONNECTOR
33P (Light gray) CONNECTOR
TOOL:
Test probe 07ZAJ-RDJA110
CONNECTION: A4 (+) – Ground (–)
33P (Black) CONNECTOR
(Wire side/female terminal)
A4 TERMINAL
