Honda CBF600SA - Bearing Replacement

FRONT WHEEL/SUSPENSION/STEERING
13-35

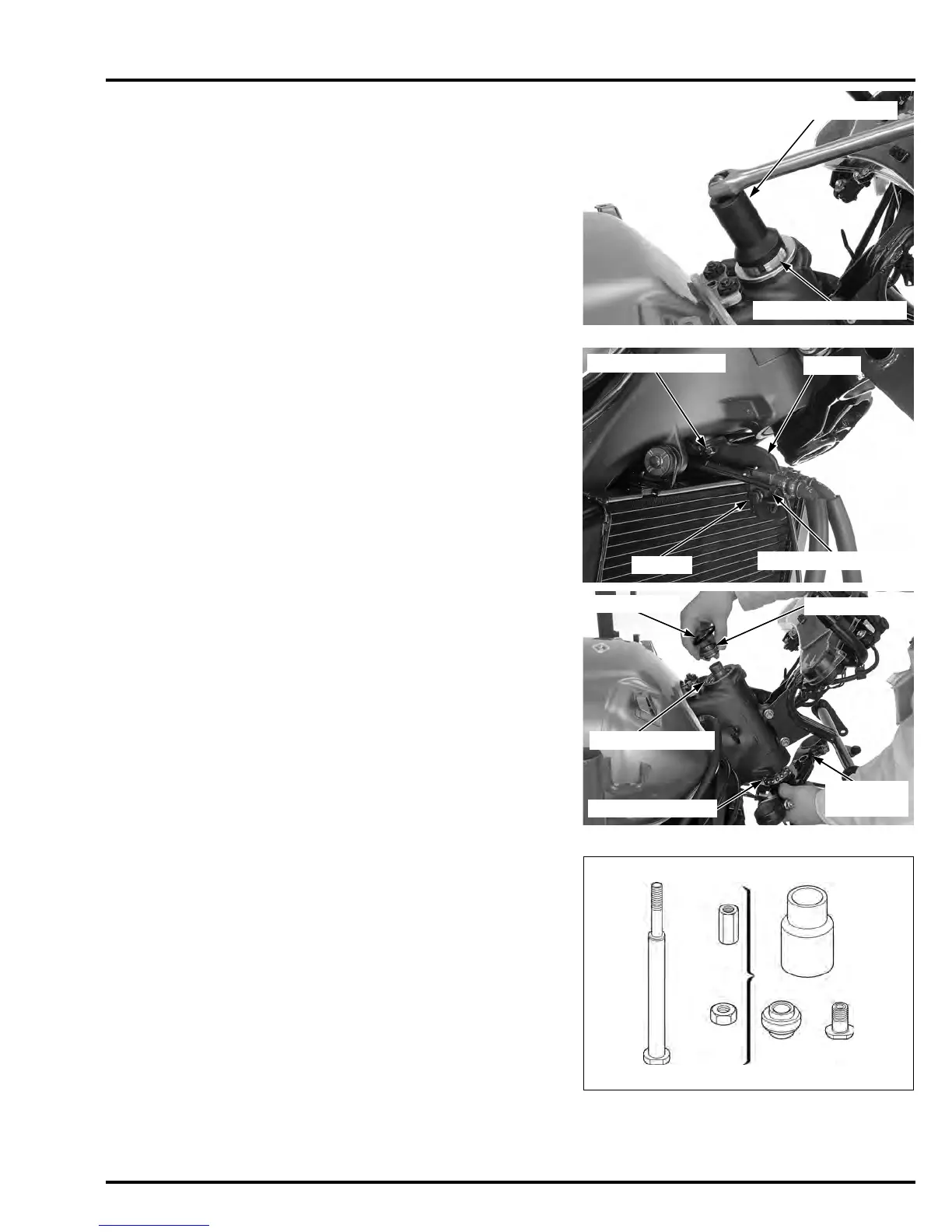

Remove the steering stem bearing adjustment nut
using the special tool.
Remove the bolt and separate brake pipe joint.
Remove the mounting bolt and stay.
Remove the following:
– Dust seal
– Upper bearing inner race
– Upper bearing
– Steering stem
– Lower bearing
BEARING REPLACEMENT
Always replace the
bearings and races
asaset.
Replace the races using the Ball Race Remover Set
as described in the following procedure.
TOOL:
Steering stem socket 07916-3710101
STEERING STEM SOCKET
ADJUSTMENT NUT
CBF600SA/NA only:
Be careful not to
bend or damage
the brake pipes.
MOUNTING BOLT
BOLT
STAY
BRAKE PIPE JOINT
INNER RACE
DUST SEAL
UPPER BEARING
LOWER BEARING
STEERING
STEM
TOOLS:
Ball race remover set 07946-KM90002
– Driver attachment, A (1) 07946-KM90100
– Driver attachment, B (2) 07946-KM90200
– Driver shaft assembly (3) 07946-KM90301
– Bearing remover, A (4) 07946-KM90401
– Bearing remover, B (5) 07946-KM90500
– Assembly base (6) 07946-KM90600
NUT B
(1)
NUT A
(5)
(6)
(4)
(3)
(2)
