REAR WHEEL/SUSPENSION
14-14

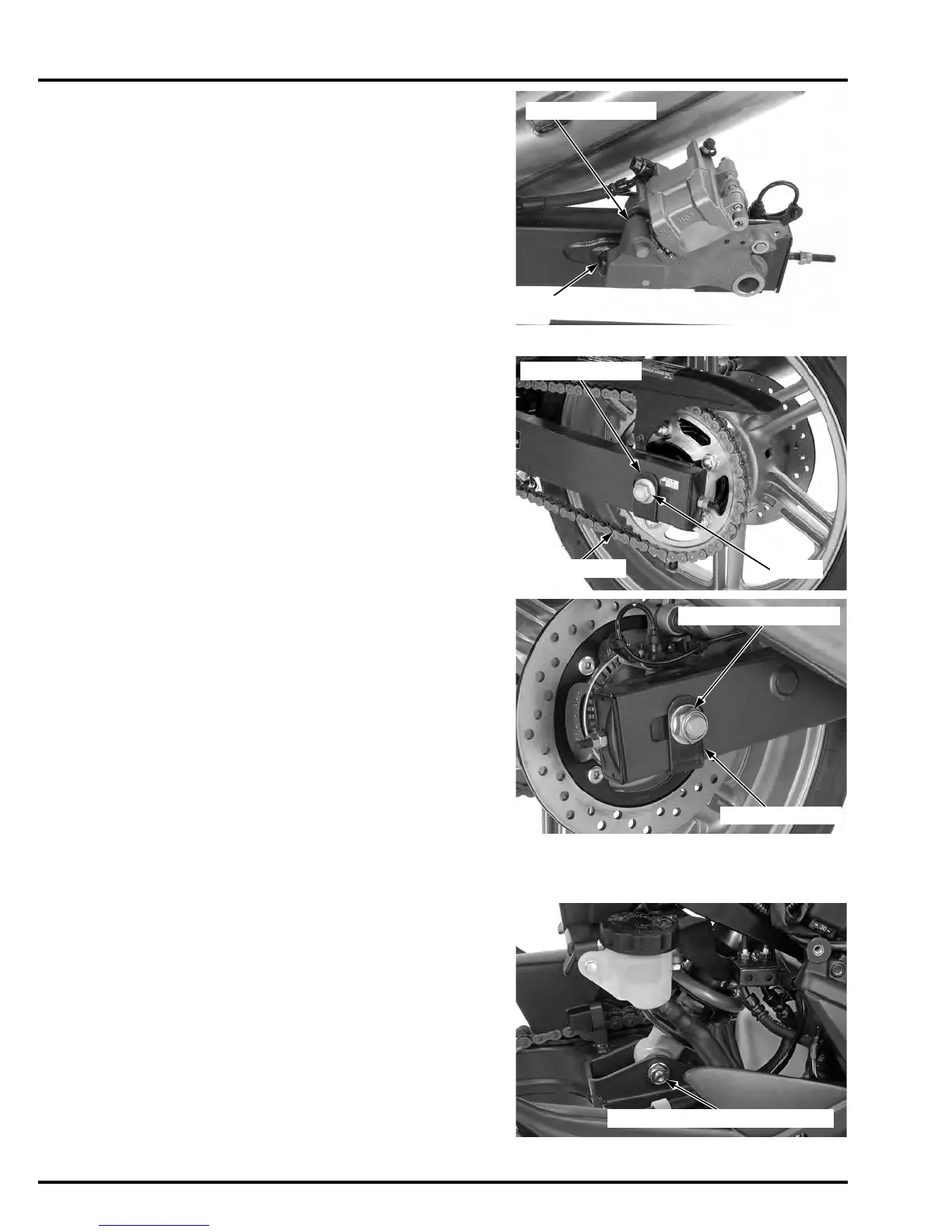

Install the rear brake caliper bracket onto the guide
of the swingarm.
Be careful not to
damage the brake
pads and speed
sensor (CBF600SA/
NA).
Place the rear wheel into the swingarm carefully
aligning the brake disc between the brake pads.
Install the drive chain over the driven sprocket.
Install the axle washer and rear axle from the left
side.
Install the axle washer, nut and axle nut.
Adjust the drive chain slack (page 3-19).
Tighten the axle nut to the specified torque.
SHOCK ABSORBER
REMOVAL
Support the motorcycle using a safety stand or a
hoist, raise the rear wheel off the ground.
Remove the side cover (page 2-5).
Remove the rear wheel (page 14-7).
Remove the shock absorber lower mounting bolt/
nut.
AXLE
DRIVE CHAIN
AXLE WASHER
TORQUE: 98 N·m(10.0kgf·m, 72 lbf·ft)
AXLE NUT/WASHER
AXLE WASHER
