CYLINDER HEAD/VALVES
8-24

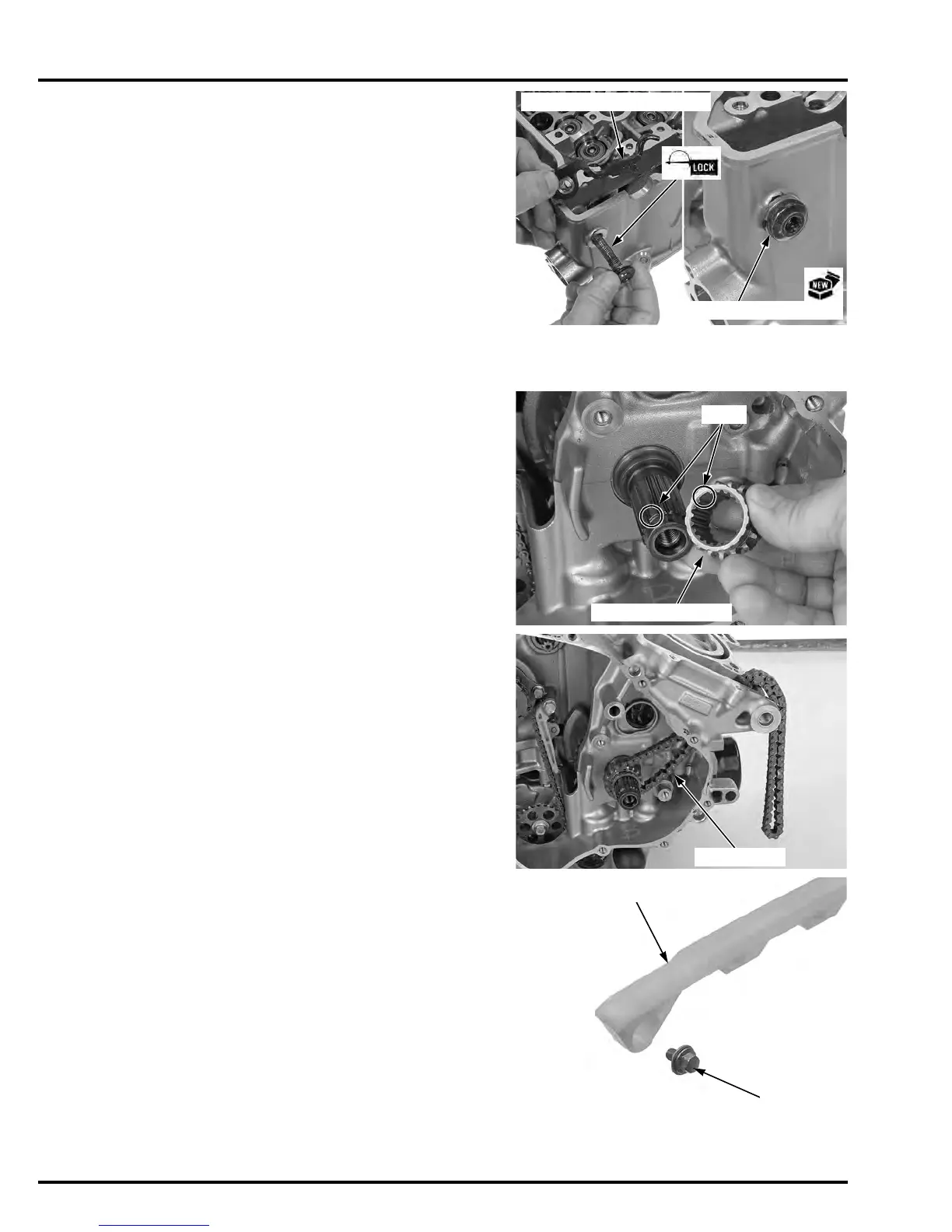

Apply a locking agent to the cam chain tensioner B
pivot bolt threads.
Install a new sealing washer, bolt and cam chain
tensioner B as shown.
Tighten the cam chain tensioner B pivot bolt to the
specified torque.
CYLINDER HEAD INSTALLATION
Install the timing sprocket by aligning the wide teeth
between the crankshaft and sprocket.
Install the cam chain.
Install the cam chain guide A and bolt.
TORQUE: 20 N·m(2.0kgf·m, 15 lbf·ft)
BOLT/SEALING WASHER
CAM CHAIN TENSIONER B
