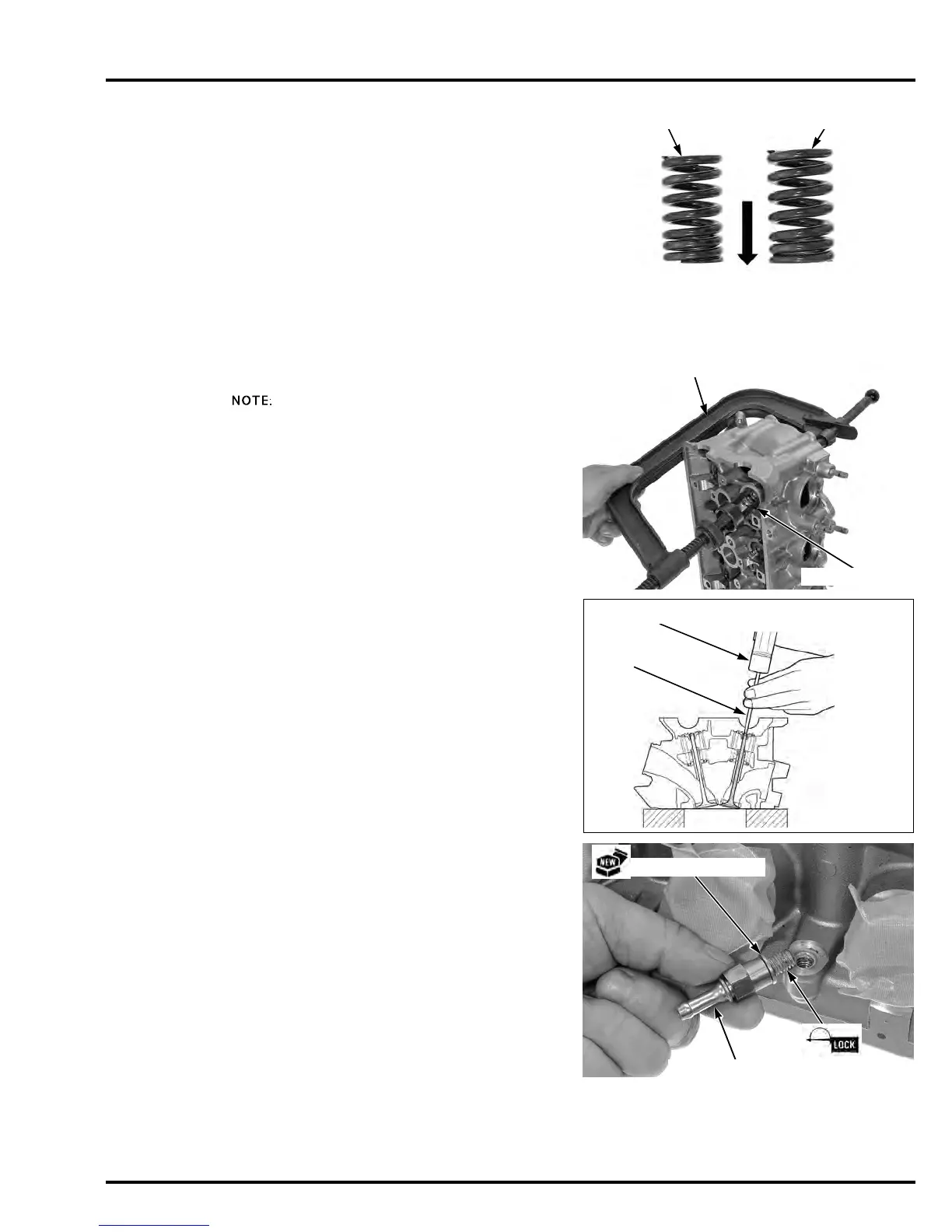

CYLINDER HEAD/VALVES
8-23
The exhaust valve
springs has a green
paint marks and the
intake valve springs
has gray paint
marks.
Install the valve springs with the tightly wound coils
facing the combustion chamber.
Install the valve spring retainer.
Grease the cotters
to ease installation.
Install the valve cotters using the special tool as
shown.
To prevent loss of tension, do not compress the
valve spring more than necessary.
Support the
cylinder head above
the work bench
surface to prevent
possible valve
damage.
Tap the valve stems gently with plastic hammer and
pin driver as shown to seat the cotters firmly.
Install and tighten the spark plugs.
Apply a locking agent to the bleeding joint threads.
Install the bleeding joint with a new sealing washer
to the cylinder head.
Tighten the bleeding joint to the specified torque.
EXHAUST VALVE
SPRING
INTAKE VALVE
SPRING
COMBUSTION CHAMBER SIDE
TOOLS:
Valve spring compressor 07757-0010000
Valve spring compressor
attachment
07959-KM30101
VALVE SPRING COMPRESSOR
ATTACHMENT
TORQUE: 16 N·m(1.6kgf·m, 12 lbf·ft)
TORQUE: 12 N·m(1.2kgf·m, 9 lbf·ft)
BLEEDING JOINT
SEALING WASHER
