Honda CBF600SA - Front Center Cowl; Meter Panel (Cbf600 S;Sa)

FRAME/BODY PANELS/EXHAUST SYSTEM
2-10

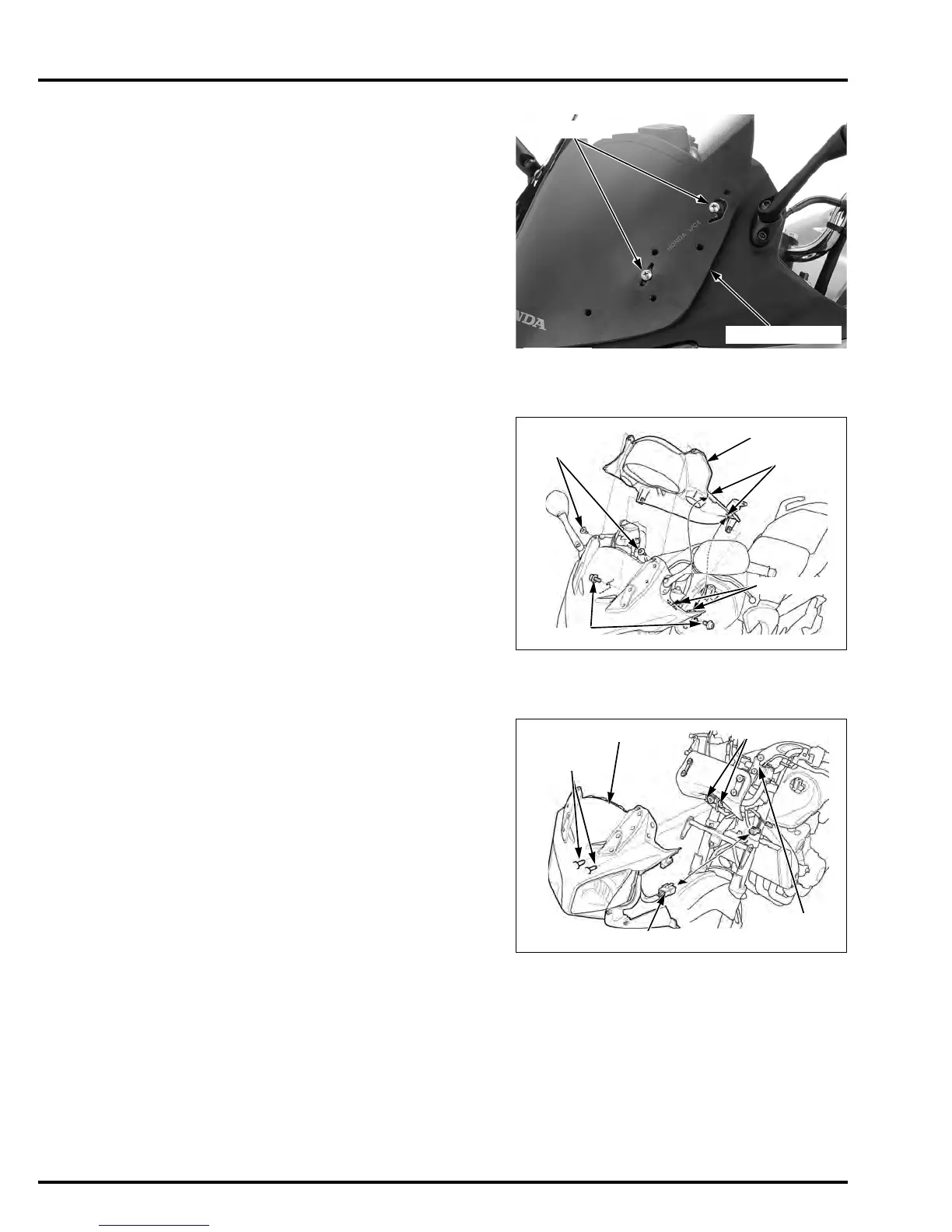

INSTALLATION
Install the windscreen and screws.
Install the windscreen covers.
If you wish the windscreen position upward, you
can choose high position.
METER PANEL (CBF600S/SA)
REMOVAL/INSTALLATION
Remove the following:
– Windscreen (page 2-9)
– Front left/right cowl (page 2-9)
Remove the two tapping screws and screws.
Release the tabs on the meter panel from the
groove on the front center cowl, then remove the
meter panel.
Installation is in the reverse order or removal.
FRONT CENTER COWL (CBF600S/SA)
REMOVAL/INSTALLATION
Remove the following:
– Windscreen (page 2-9)
– Front left/right cowl (page 2-9)
– Meter panel (page 2-10)
– Rear view mirror (page 2-8)
Release the grooves of the front center cowl from
the rear view mirror stay mounting boss.
Pull the front center cowl and remove its bosses
from the grommets on the stay.
Disconnect the headlight 4P (Natural) connector.
Installation is in the reverse order or removal.
WINDSCREEN
SCREWS
TAPPING
SCREWS
SCREWS
METER PANEL
TABS
GROOVES
MOUNTING
BOSSES
GROMMETS
4P (NATURAL) CONNECTOR
FRONT CENTER COWL
BOSSES
