LIGHTS/METERS/SWITCHES
20-6

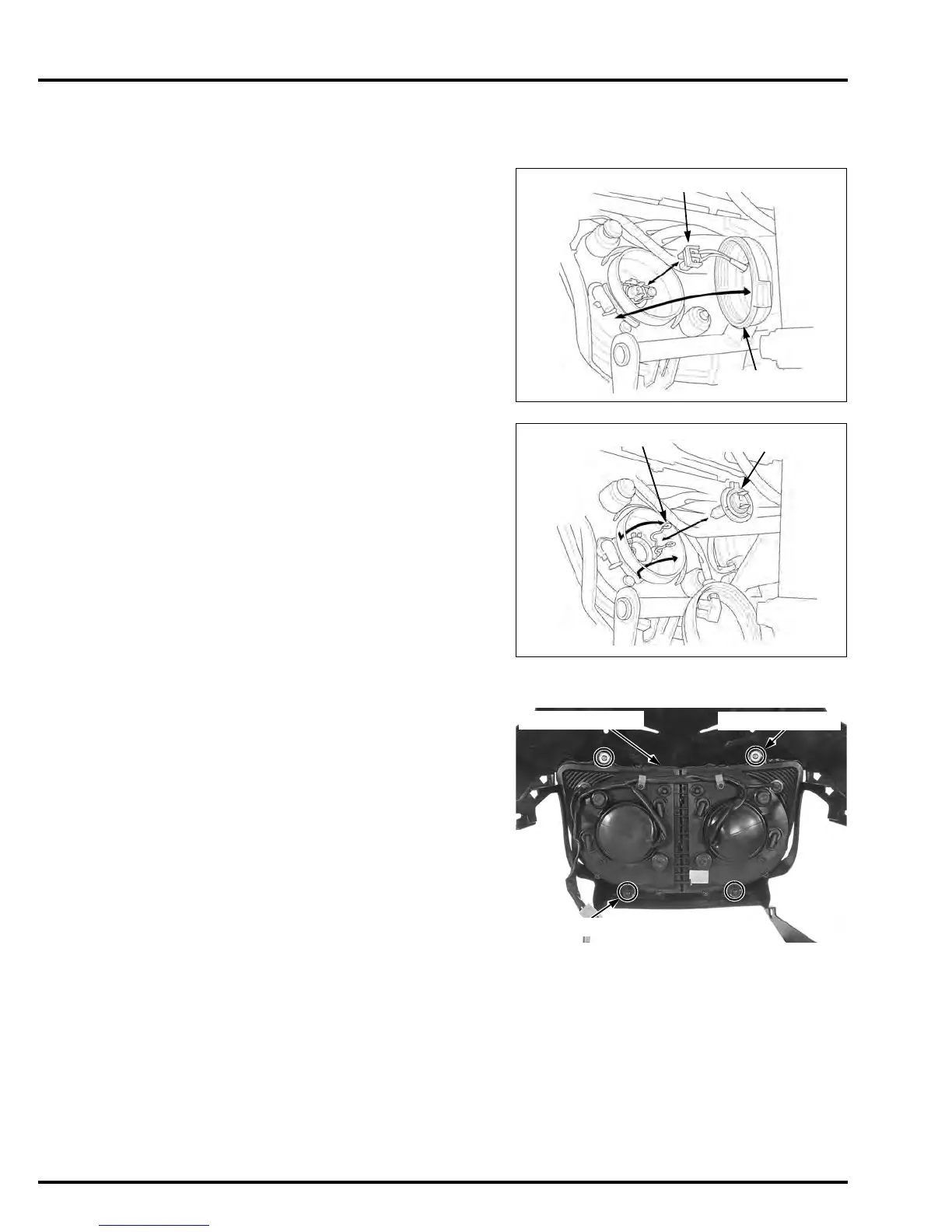

HEADLIGHT
BULB REPLACEMENT
(CBF600S/SA)
Remove the dust cover.
Disconnect the headlight bulb connector.
Unhook the bulb retainer and remove the headlight
bulb.
Install the new headlight bulb by aligning its tabs
with the groove in the headlight unit.
If you touch the bulb with your bare hands, clean it
with cloth moistened with denatured alcohol to pre-
vent early bulb failure.
Connect the headlight bulb connector.
Install the dust cover tightly aligning its tab with the
proper position.
REMOVE /INSTALLATION
(CBF600S/SA)
Remove the front center cowl (page 2-10).
Remove the upper two silver screws and lower two
black screws, and headlight unit.
Install the headlight unit in the reverse order of
removal.
Avoid touching
halogen headlight
bulb. Finger prints
can create hot
spots that cause a
bulbtobreak.
HEADLIGHT UNIT
BLACK SCREWS
SILVER SCREWS
