REAR WHEEL/SUSPENSION
14-7

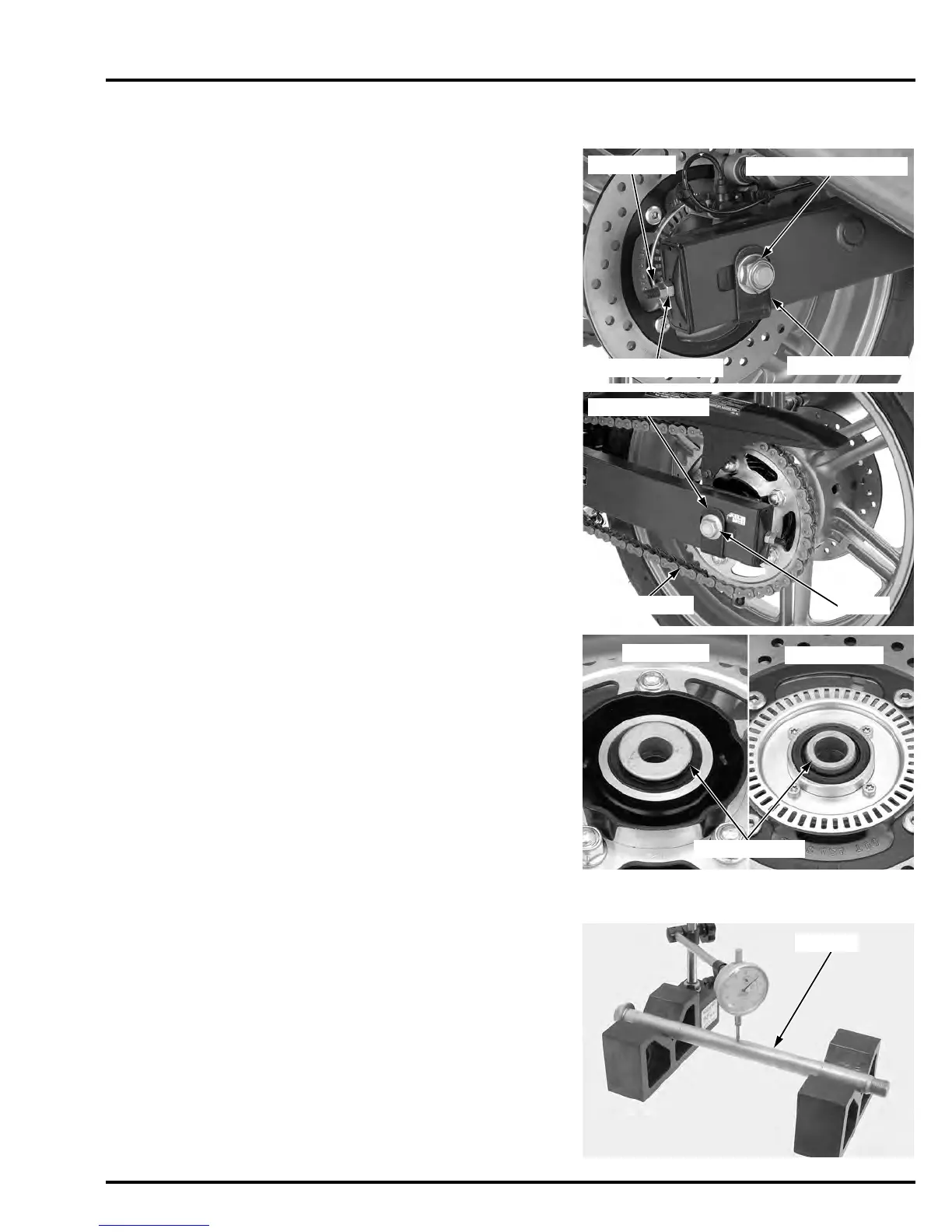

REAR WHEEL
REMOVAL
Loosen the rear axle nut.
Support the motorcycle using a safety stand or a
hoist, raise the rear wheel off the ground.
Loosen the lock nut and drive chain adjusting nut
and make a drive chain slack fully.
Remove the axle nut, washer and rear axle washer.
Derail the drive chain from the driven sprocket
Remove the rear axle and axle washer, then remove
the rear wheel.
Remove the side collars.
INSPECTION
Axle
Place the axle in V-blocks and measure the runout.
Actual runout is 1/2 the total indicator reading.
AXLE NUT/WASHER
LOCK NUT
ADJUSTING NUT
AXLE WASHER
Do not operate the
brake pedal after
the rear wheel is
removed.
CBF600SA/NA: Be
careful not to
damage the speed
sensor on the brake
caliper.
AXLE
DRIVE CHAIN
AXLE WASHER
SIDE COLLARS
LEFT SIDE:
RIGHT SIDE:
SERVICE LIMIT: 0.2 mm (0.01 in)
