ANTI–LOCK BRAKE SYSTEM (ABS; CBF600SA/NA)
16-29

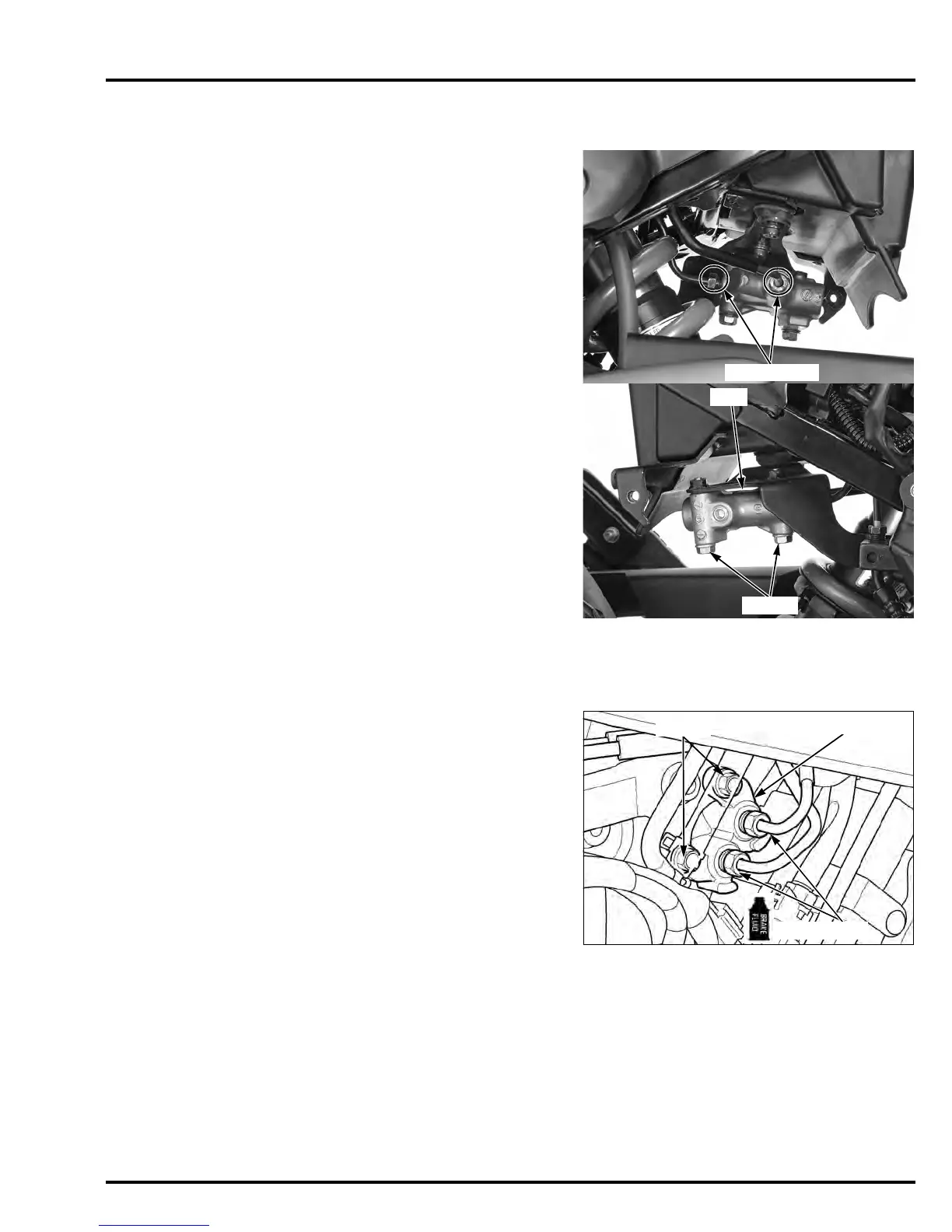

PCV
REMOVAL/INSTALLATION
Drain the brake fluid from the front and rear hydrau-
lic systems (page 15-7).
Remove the rear master cylinder reservoir tank
(page 15-24).
Remove the brake pipe joint nuts.
Remove the mounting bolts and the PCV.
Installation is in the reverse order of removal.
DELAY VALVE
REMOVAL/INSTALLATION
Drain the brake fluid from the front and rear hydrau-
lic systems (page 15-7).
Remove the right side cover (page 2-5).
Remove the brake pipe joint nuts.
Remove the mounting bolts and the delay valve.
Installation is in the reverse order of removal.
Apply brake fluid to
the brake pipe joint
nut threads.
TORQUE:
Brake pipe joint nut:
14 N·m(1.4kgf·m, 10 lbf·ft)
PCV mounting bolt:
12 N·m(1.2kgf·m, 9 lbf·ft)
JOINT NUTS
BOLTS
PCV
Apply brake fluid to
the brake pipe joint
nut threads.
TORQUE:
Brake pipe joint nut:
14 N·m(1.4kgf·m, 10 lbf·ft)
Delay valve mounting bolt:
12 N·m(1.2kgf·m, 9 lbf·ft)
JOINT NUTS
DELAY VALVE
BOLTS
