INSTALLATION

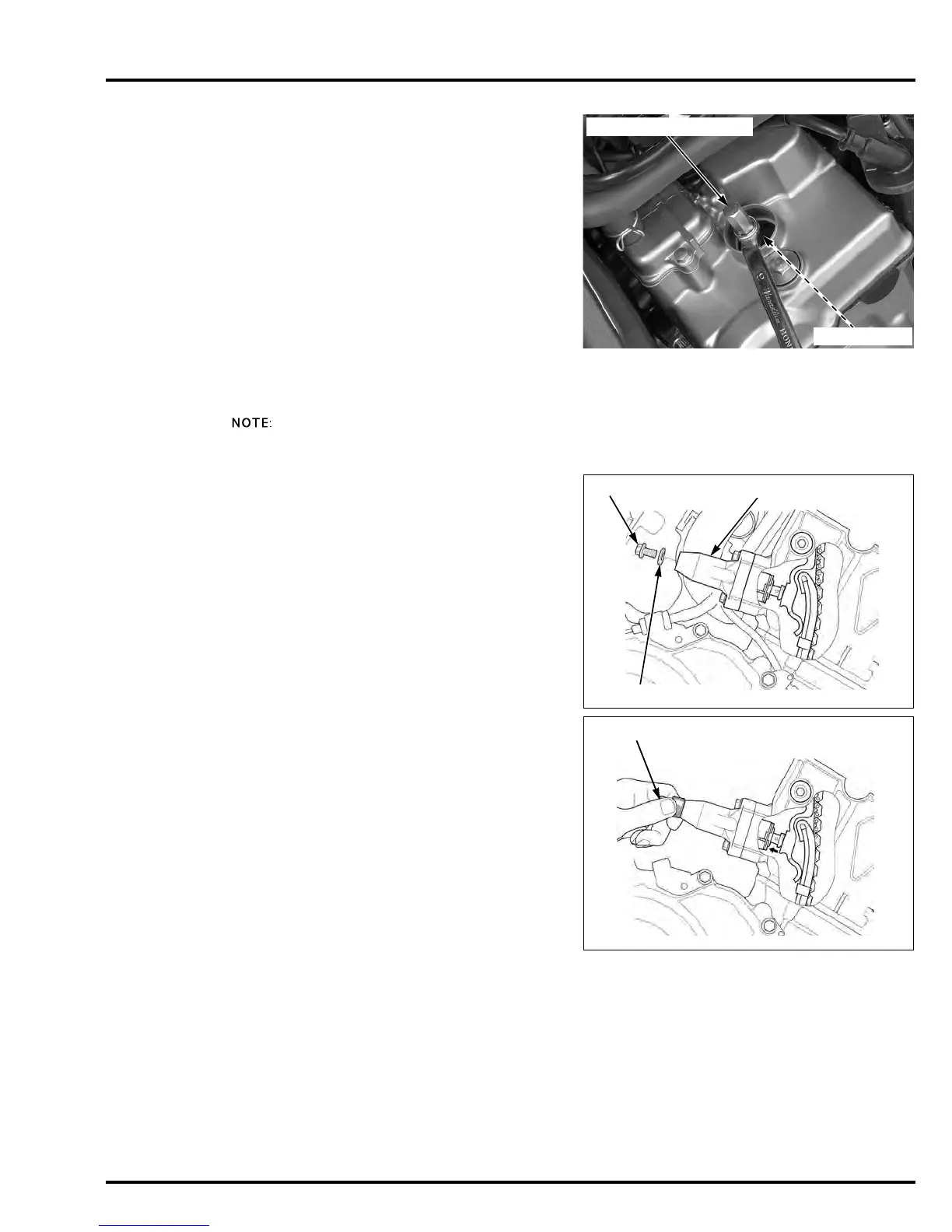

Install the spark plugs by hand and tighten them to
the specified torque with the spark plug wrench.
Install the spark plug caps.
Install the removed parts in the reverse order.
VALVE CLEARANCE
INSPECTION
Check the engine idle speed (page 5-90) after the
valve clearance inspection.
Inspect and adjust
the valve clearance
while the engine is
cold (below 35
°
C/
95
°
F)
Remove the cylinder head cover (page 8-6).
Remove the cam chain tensioner lifter sealing bolt
and sealing washer.
Failure to release
the cam chain
tensioner will result
in inaccurate valve
clearance reading.
Turn the cam chain tensioner lifter shaft fully in
(clockwise) and secure it using the special tool to
prevent damaging the cam chain.
TORQUE: 16 N·m(1.6kgf·m, 12 lbf·ft)
SPARK PLUG WRENCH
SPARK PLUG
SEALING WASHER
BOLT
CAM CHAIN TENSIONER LIFTER
TOOL:
Tensioner stopper 070MG-0010100
