Honda CBF600SA - Crankcase Rear Cover Removal; Engine Installation; Engine Removal

ENGINE REMOVAL/INSTALLATION
7-4

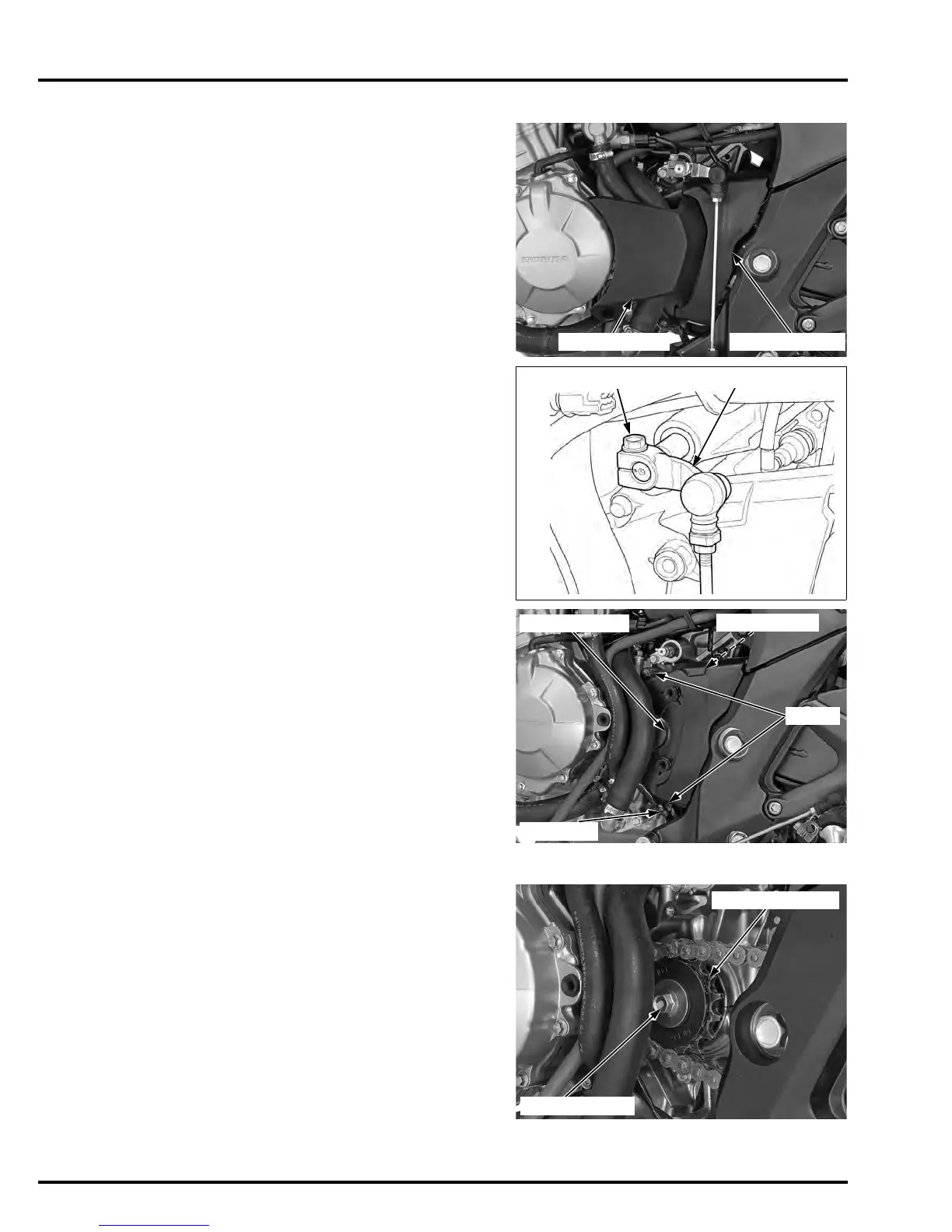

CRANKCASE REAR COVER REMOVAL
Remove the crankcase rear cover B, releasing its
bosses from the grommets of rear cover A.
Remove the pinch bolt and disconnect the gearshift
arm from the gearshift spindle.
Release the sidestand switch wire clip from the rear
cover B.
Remove the bolts, rear cover B and drive chain
guide plate.
ENGINE REMOVAL
Remove the following:
– exhaust pipe (page 2-11)
– air cleaner housing (page 5-61)
– crankcase rear cover (page 7-4)
Loosen the rear axle nut.
Turn the drive chain adjusting bolts make the drive
chain slack fully (page 3-19).
Remove the drive sprocket bolt, washer and drive
sprocket.
REAR COVER B REAR COVER A
GEARSHIFT ARM
PINCH BOLT
REAR COVER B
WIRE CLIP
GUIDE PLATE
BOLTS
DRIVE SPROCKET
BOLT/WASHER
