FRAME/BODY PANELS/EXHAUST SYSTEM
2-5

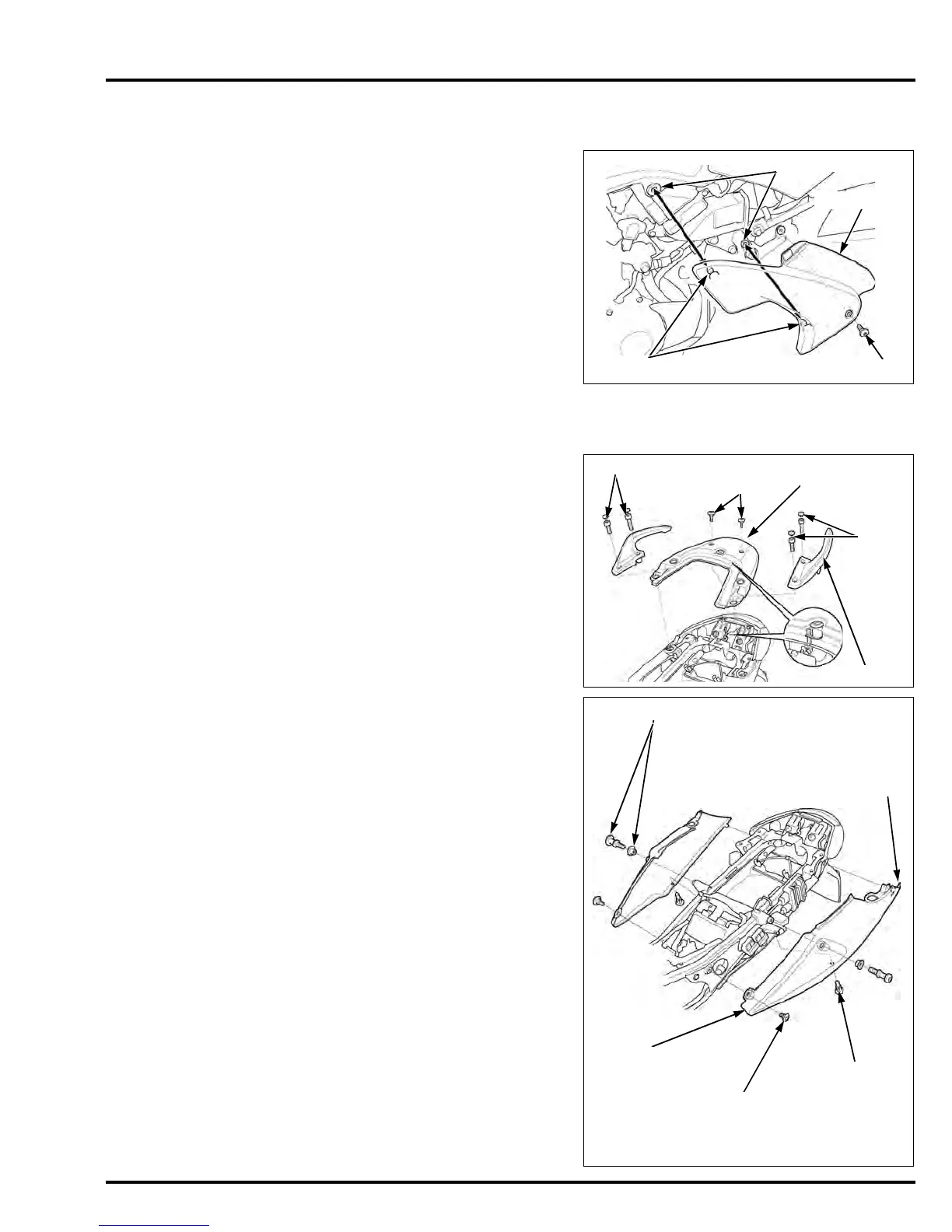

SIDE COVER
REMOVAL/INSTALATION
Remove the socket bolt.
Release the rear tabs from the swingarm pivot
bracket and fuel tank grommets, then remove the
side cover.
Install the side cover aligning the its tabs with the
grommets in the swingarm pivot bracket and fuel
tank.
Install and tighten the socket bolt to the specified
torque.
REAR COWL
REMOVAL
Remove the seat (page 2-4).
Remove the side cover (page 2-5).
Remove the bolt caps.
Remove the socket bolts and grab rail.
Remove the socket bolts and rear center cowl.
Remove the socket bolts and special bolts/collars.
Remove the trim clips.
Carefully release the tabs of the rear cowl from the
grooves on the taillight unit, then remove the right/
left rear cowl.
TORQUE: 4 N·m(0.4kgf·m, 3.0 lbf·ft)
GROMMETS
SIDE COVER
SOCKET BOLT
TABS
SOCKET BOLTS
REAR CENTER
COWL
BOLT
CAPS
GRAB RAIL
SOCKET
BOLTS
SOCKET BOLT
TABS
TRIM CLIP
REAR COWL
SPECIAL BOLT/COLLAR
