HYDRAULIC BRAKE
15-25

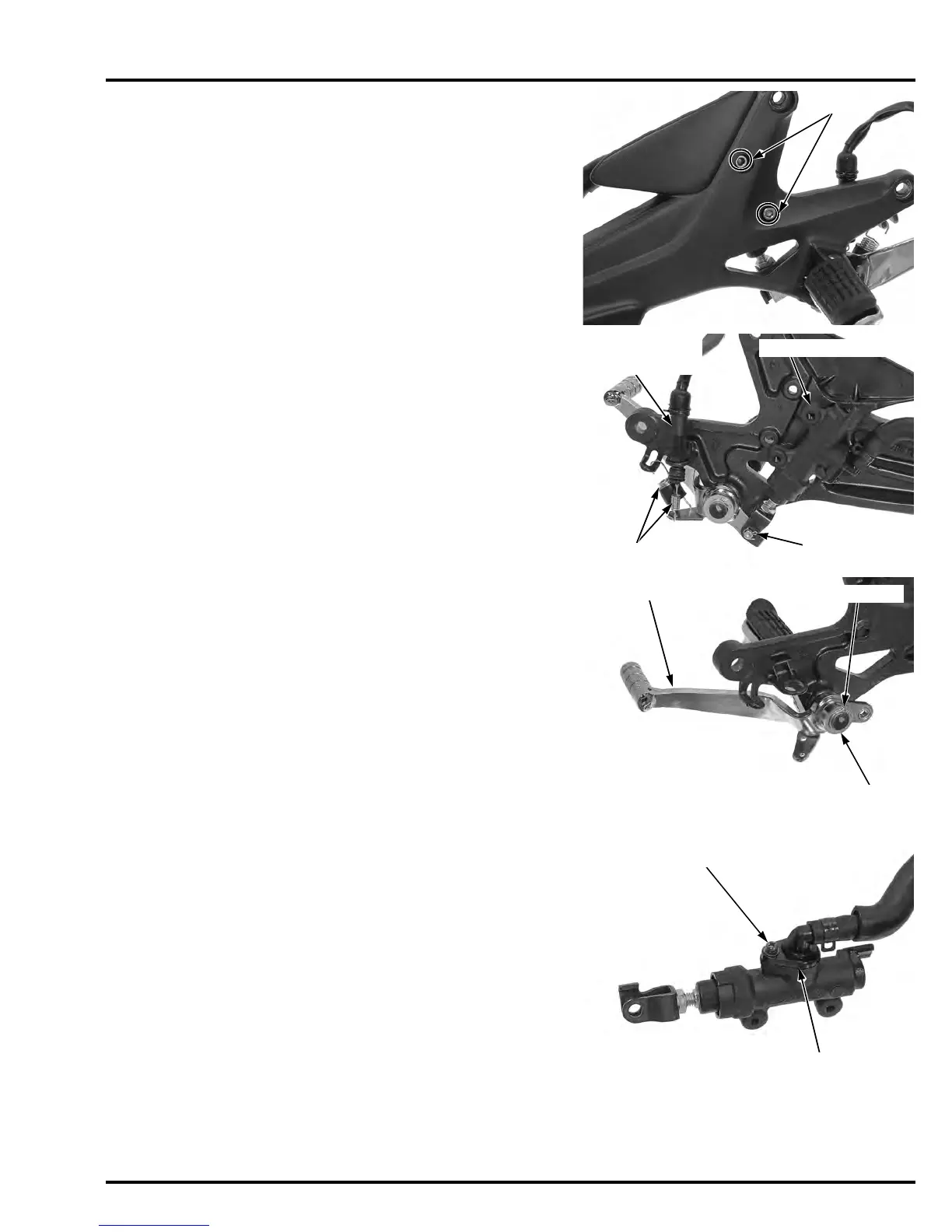

Remove the master cylinder mounting bolts.
Remove the joint pin.
Remove and discard the brake pedal joint cotter pin.
Remove the return springs and rear brake light
switch.
Remove the snap ring, washer and brake pedal.
DISASSEMBLY
Remove the screw and reservoir hose joint and O-
ring from the master cylinder.
COTTER PIN/
JOINT PIN
MASTER CYLINDER
RETURN SPRINGS
REAR BRAKE
LIGHT SWITCH
BRAKE PEDAL
SNAP RING
WASHER
SCREW
RESERVOIR JOINT/O-RING
