MAINTENANCE
3-28
CLUTCH SYSTEM

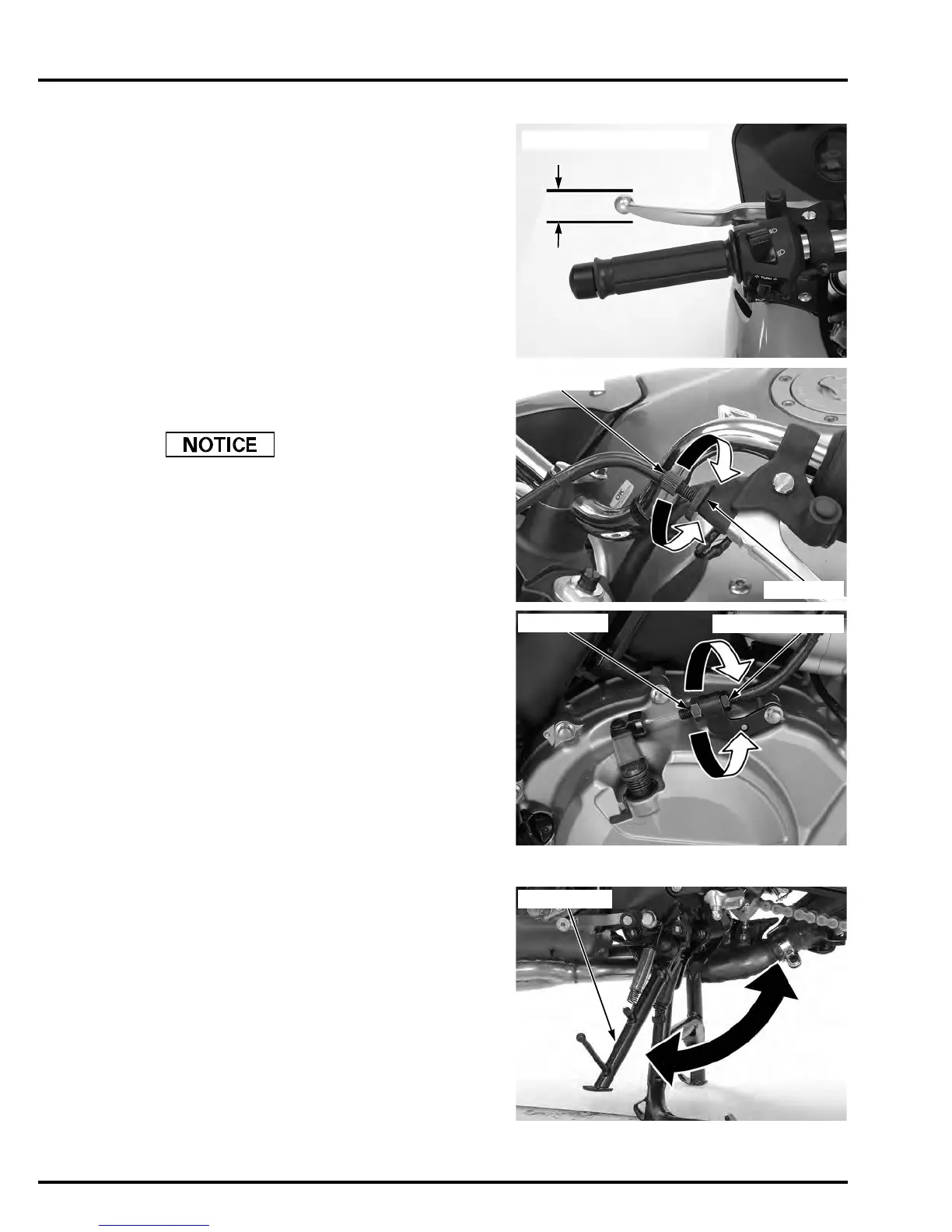

Measure the clutch lever freeplay at the end of the
clutch lever.
Minor adjustment is made using the upper adjuster
at the clutch lever.
Loosen the lock nut and turn the adjuster.
The adjuster may be damaged if it is positioned too
far out, leaving minimal thread engagement.
If the adjuster is threaded out near its limit and the
correct freeplay cannot be obtained, turn the
adjuster all the way in and back out one turn.
Tighten the lock nut while holding the adjuster and
make a major adjustment as described as follow.
Major adjustment is performed at the clutch lifter
lever.
Loosen the lock nut and turn the adjusting nut to
adjust the freeplay.
Tighten the lock nut while holding the adjusting nut.
If proper freeplay cannot be obtained, or the clutch
slips during test ride, disassemble and inspect the
clutch (page 9-6).
SIDESTAND
Support the motorcycle on a level surface.
Check the sidestand spring for damage or loss of
tension.
Check the sidestand for smooth movement and
lubricate the sidestand pivot if necessary.
FREEPLAY: 10 – 20 mm (3/8 – 13/16 in)
10 – 20 mm (3/8 – 13/16 in)
