LIGHTS/METERS/SWITCHES
20-15
COMBINATION METER
(CBF600N/NA)
REMOVAL

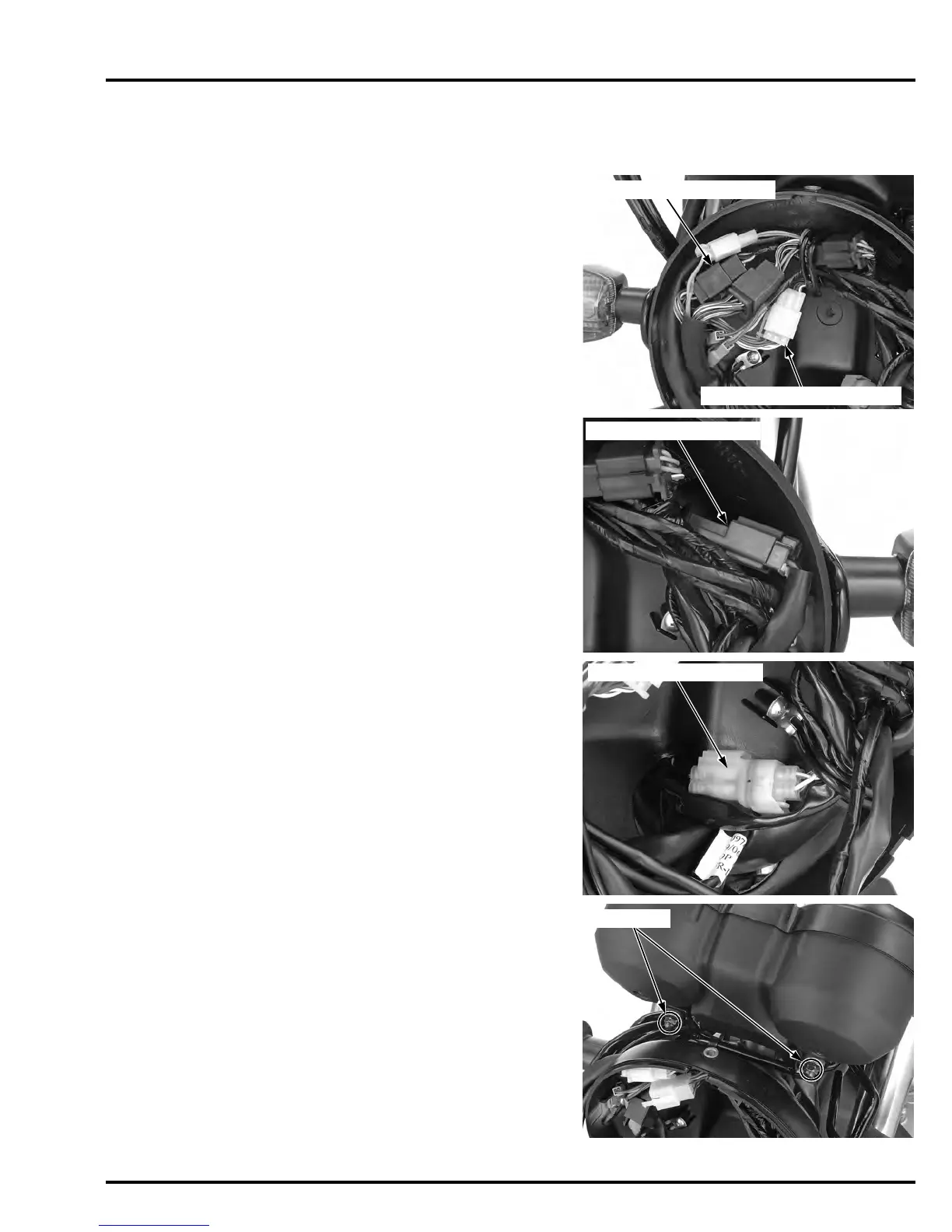

Remove the headlight unit (page 20-7).
Disconnect the combination meter 9P (Natural) and
9P (Black) connectors.
Disconnect the ignition switch 2P (Brown) connec-
tor.
Disconnect the immobilizer receiver 4P (Natural)
connector.
Remove the handle bar (page 13-8).
Remove the cap nuts.
9P (Black) CONNECTOR
9P (NATURAL) CONNECTOR
