CYLINDER HEAD/VALVES
8-22

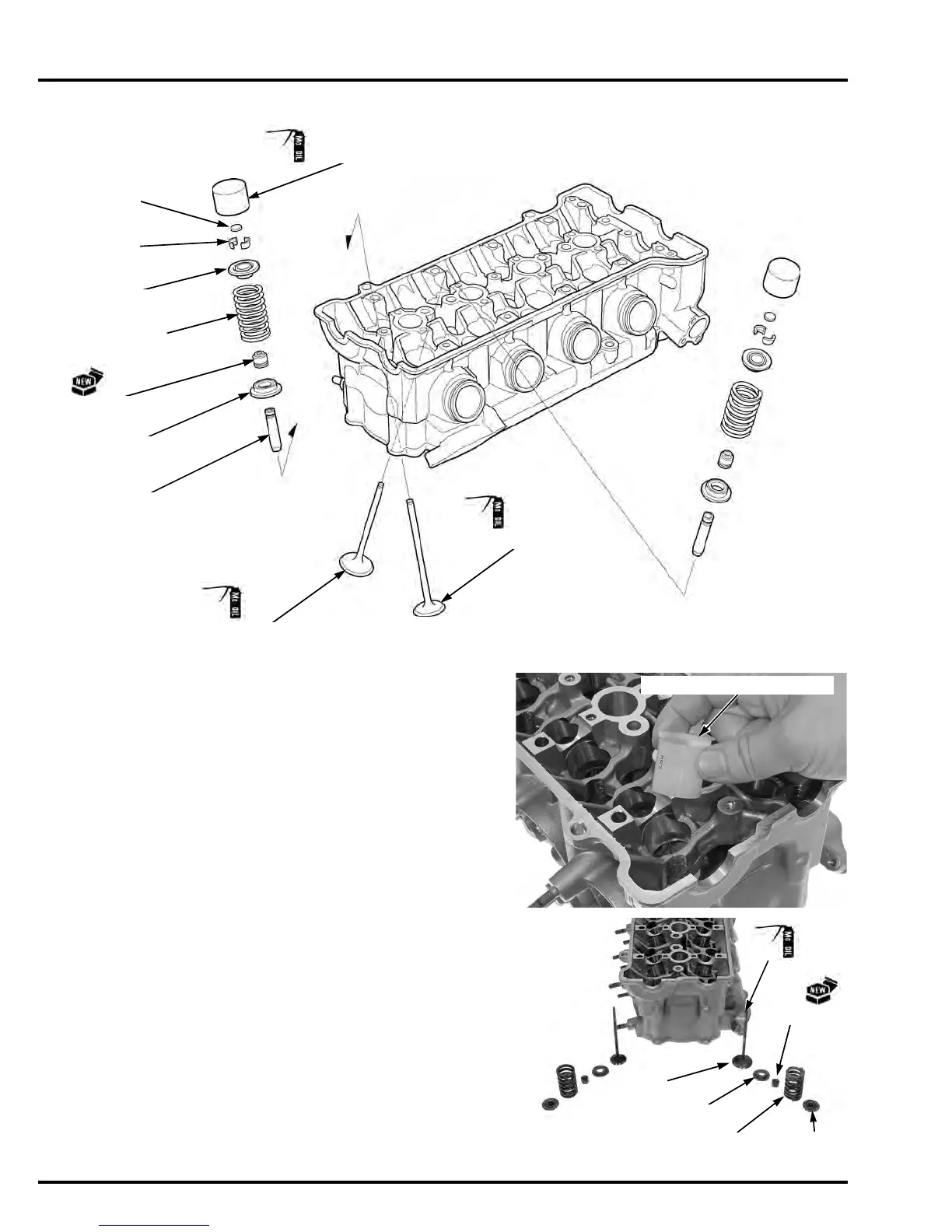

CYLINDER HEAD ASSEMBLY
Blow through all oil passages in the cylinder head
with compressed air.
Install the tappet hole protector into the valve lifter
bore.
Install the valve spring seats.
Install the new stem seals.
Lubricate the valve stems with molybdenum oil
solution.
Insert the valve into the valve guide while turning it
slowly to avoid damage to the stem seal.
SPRING RETAINER
COTTERS
SHIM
SPRING SEAT
VALVE GUIDE
INTAKE VALVE
VALVE LIFTER
STEM SEAL
VALVE SPRING
EXHAUST VALVE
TOOL:
Tappet hole protector 07HMG-MR70002 or
refertopage8-14for
alternative tool
VALVE
STEM SEAL
SPRING SEAT
RETAINER
VALVE SPRING
