ALTERNATOR
10-3
SERVICE INFORMATION
GENERAL
• This section covers service of the alternator stator and flywheel. All service can be done with the engine installed in the
frame.
• Refer to procedures for alternator stator inspection (page 17-8).
• Refer to procedures for starter motor servicing (page 19-6).
TORQUE VALUES
TOOLS
Stator mounting socket bolt 12 N·m (1.2 kgf·m, 9 lbf·ft)
Flywheel flange bolt 113 N·m (11.5 kgf·m, 83 lbf·ft) Apply engine oil to the threads and seating
surface.
Stator wire clamp flange bolt 12 N·m (1.2 kgf·m, 9 lbf·ft) CT bolt

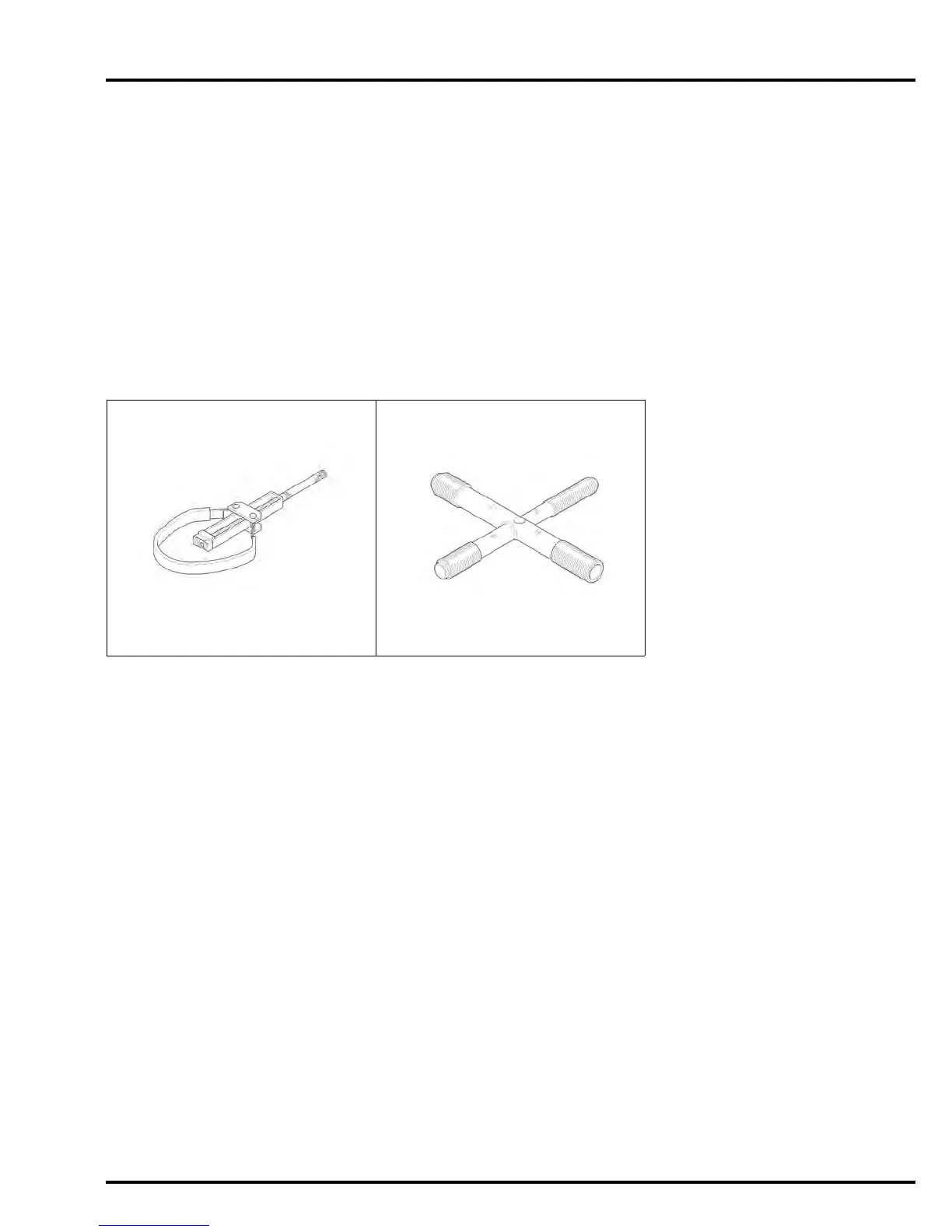

Flywheel holder
07725-0040001
or equivalent commercially avail-
able.
Rotor puller
07733-0020001
