LIGHTS/METERS/SWITCHES
20-40

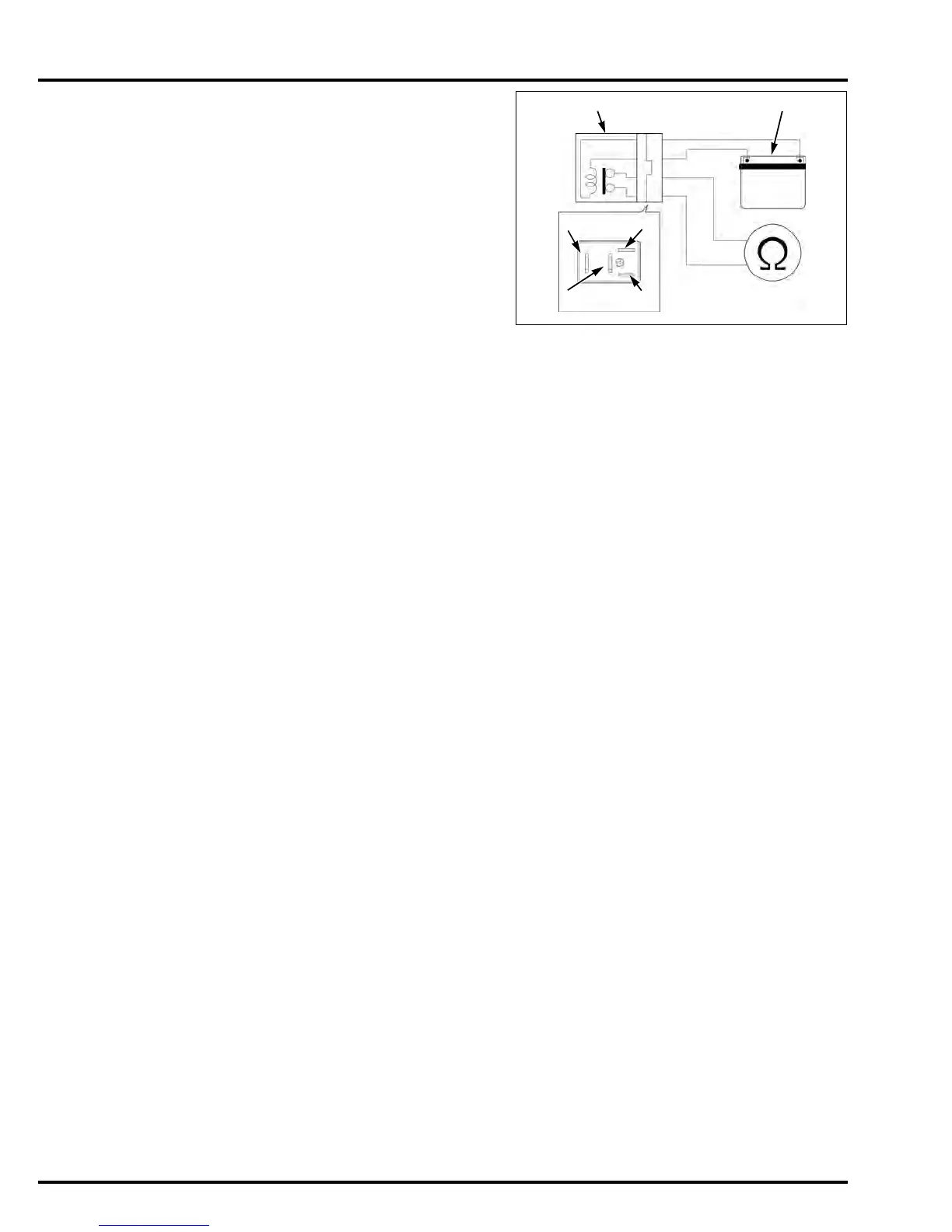

Connect the ohmmeter to the fan control relay con-
nector terminals.
Connect the 12 V battery to the following headlight
relay connector terminals.
There should be continuity when the 12 V battery is
connected.
If there is no continuity when the 12 V battery is
connected, replace the headlight relay.
CONNECTION: A (Red/green) – B (Black/blue)
CONNECTION: C (Green/blue) – D (Black/white)
C
D
HEADLIGHT RELAY
BATTERY
B
A
