FRAME/BODY PANELS/EXHAUST SYSTEM
2-12

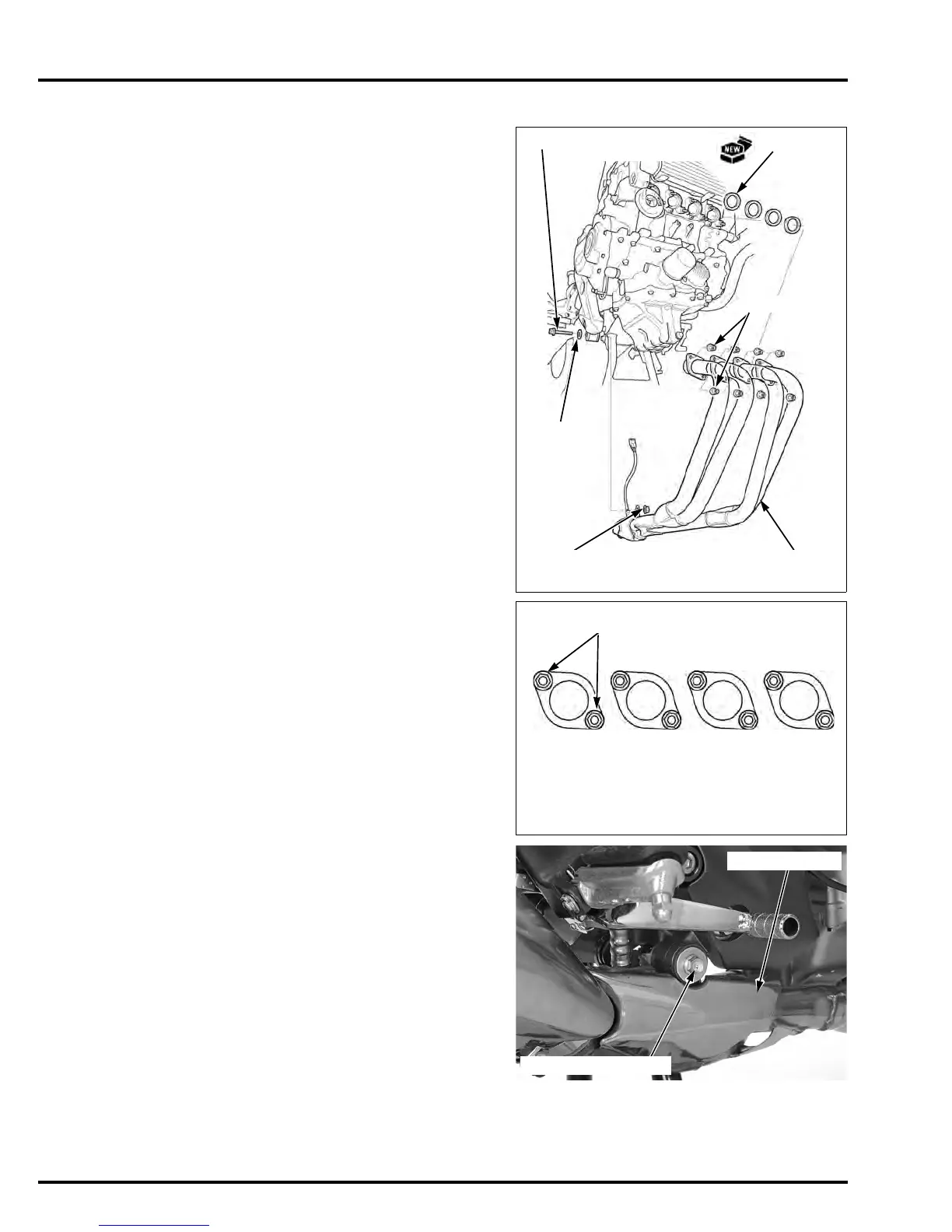

INSTALLATION
Install the exhaust pipe and new gaskets to the cyl-
inder head.
Temporarily install the exhaust pipe joint nuts,
exhaust pipe mounting bolt, washer and nut.
First tighten the exhaust pipe joint nuts to the speci-
fied torque.
Tighten the exhaust pipe mounting nut to the speci-
fied torque.
Always replace the
gaskets with new
ones.
MOUNTING BOLT
EXHAUST PIPE
GASKETS
JOINT NUTS
WASHER
NUT
TORQUE: 12 N·m(1.2kgf·m, 9 lbf·ft)
TORQUE: 22 N·m(2.2kgf·m, 16 lbf·ft)
BOLT/WASHER/NUT
EXHAUST PIPE
